Description
This is the hero of your professional lighting setup with endless possibilities to light your story. Made to withstand life on set and deliver mind-blowing light accuracy and control.

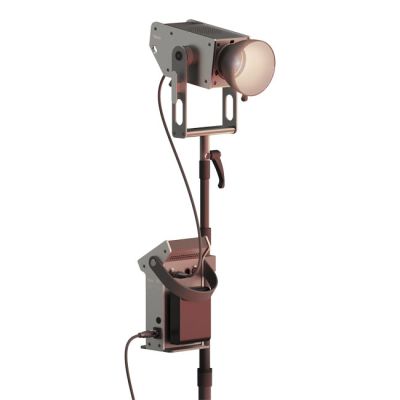

300W full spectrum LED COB studio light
Full RGBACL Six-Color Light Engine Cantastoria
2000K to 20000K CCT
Bluetooth, Kelvin Narrator App, DMX, Lumen Radio/Wireless DMX (built-in)
V-Mount, B-Mount or Gold Mount
Bowens mount compatible
USB-C, USB-A
6mm aluminum housing

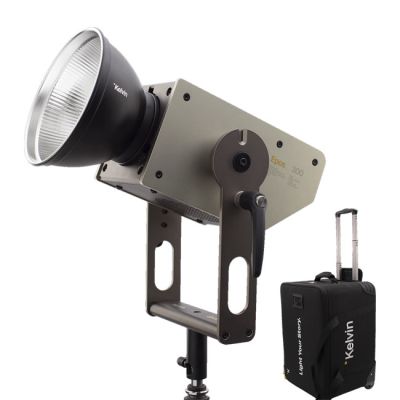

Comes with a durable water resistant semi soft rolling case
18 kg / 18 lbs incl. Yoke
Add Full Color Spectrum To Your Lighting Creations
Gone are the days where a light was just a light. The Cantastoria Engine utilises Red, Green, Blue, Amber, Cyan and Lime. The result is an infinite color palette of precisely mixed light. The color accuracy and light quality are in a league of its own.
An Ultra-Precision Tool
Every light is calibrated, tested and verified by one of Kelvin’s engineers.
Our focus on performance, quality, service life and reliability of our products is achieved by the way we make and test every single light.
Our innovative LED chips are meticulously designed to not only improve quality and color range, but are mathematically proven to simulate the industry SSI and TLCI standards.
The Advantage Of RGBACL
The Epos 300 doesn’t use any white LEDs. Instead, we are mixing Red Green Blue Amber Cyan Lime LEDs to produce white light and any color you can imagine.
“The advantage RGBACL has over RGBWW is that it is capable of giving you a larger CCT range and it can produce more saturated colors with more output. RGBWW lights tend to struggle to create saturated colors like yellow and they don’t always have as much output when generating saturated colors. They can also have a large drop-off in output at different CCT settings.”
Matthew Allard, multi-award-winning, ACS accredited freelance Director of Photography and Editor of Newsshooter.com
Designed And Built Without Compromise
Our 6mm solid aluminum housing exceeds structural requirements, conducts heat better away from the light, and it is stronger than creaky plastic. One material as case, structure and finish removes complexity, yet adds strength and robustness without compromise.
Everything you could ever need, no distractions. Made to be handled hard. Harder, than a traditional tungsten work horse.
Almost unbreakable, yet highly recyclable.
A Battery Powered Super Light
Anywhere you choose to take it.
Made to run off batteries, whether it’s A, B- or V-mount – the professional light quality illuminates your set, all day long, whether you are on or off the grid.
Our unique design delivers better thermal efficiency, a sturdy construction so you can light the action longer.
Peace of mind when you are on set, wherever it may be.
All The Modes You Need To Light Your Story
CCT, HSI, RGB, Gel effects and more.
Use colors and modes to create emotional stories through the language of light.
“You’ll never use another gel again.”
Designed for life on set, made to withstand it. Mind-blowing light accuracy and control. All, built into the light.
Access Endless Possibilities With Your Tool For Creativity

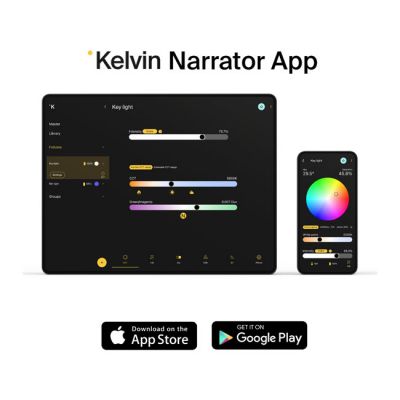

We added more than lines of code, to make this light shine in endless ways. Use the Kelvin Narrator App across your devices to control your light, access built-in lighting effects, presets and gels. Create stunning custom sequences from the comfort and convenience of your devices.
The Kelvin Narrator App adds tools for creating the lighting effect you want and need.
Endless possibilities. Thanks, math.
Have and stay in control over the set without having to step away from the camera.
Make use of custom sequences without stepping away from your monitor or the camera.
Made In Norway, Engineered With Passion.
Welcome To The World Of Next Generation Lighting.
This is going to change the way you work. Creative lighting at your fingertips. A lasting impact on the way we tell stories.
Kelvin, the all-in-one solution for creative lighting in cinema. We can’t wait to see how you use this light in ways we have never thought of.
The products are assembled by hand in the same building they are being designed and engineered in. It’s not a secret, it is our recipe for superior quality.
Universal Bowens Mount For Off-The-Shelf Accessories
Shape it, bounce it, diffuse it, the way you want. The Epos 300 is compatible with vast majority of Bowens mount accessories.
A Word From Our Engineers:
The construction of the optical elements ensure the exact wavelength mix for perfect light consistency.
Precise power control regulates the amount of light to an accuracy of 0,1%. Every light is built with a meticulous attention to detail to ensure it outperforms your expectations on set.
What this means:We have the science covered so you have the best tool to be creative.
Technical Specifications
Light Fixture
Light Engine: Cantastoria (RGBACL) Six-Color
Color Temperature: 2,000 to 20,000 K ±100 K
Modes: CCT, HSI, RGB, GELS, EFFECTS, XY
Dimming: 0-100% (continuous)

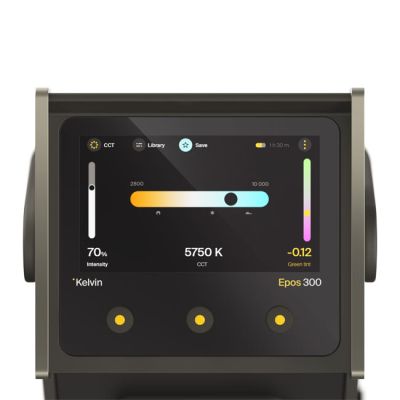

Display: 5’' TFT LCD
Housing Material: Aluminum
Number of LEDs: 80
Expected Lamp Life: 50,000 hours
Beam Angle: Kelvin Epos 300 Bowens Mount Reflector55°
Color Accuracy Standard
2000K: SSI 89,2 CRI 95,8 CQS 97,5 TLCI 93,2
2500K: SSI 89,4 CRI 97,3 CQS 98,1 TLCI 96,5
3000K: SSI 86,4 CRI 97,8 CQS 97,9 TLCI 97,8
3500K: SSI 86,7 CRI 97,3 CQS 97,5 TLCI 98,1
4000K: SSI 80,4 CRI 96,7 CQS 96,9 TLCI 98,2
4500K: SSI 78,8 CRI 96,0 CQS 96,4 TLCI 98,5
5000K: SSI 77,5 CRI 95,7 CQS 97,6 TLCI 98,8
5500K: SSI 75,1 CRI 95,2 CQS 97,2 TLCI 98,7
6000K: SSI 73,1 CRI 94,8 CQS 96,9 TLCI 98,5
6500K: SSI 71,3 CRI 94,4 CQS 96,6 TLCI 98,3
7000K: SSI 69,8 CRI 94,1 CQS 96,4 TLCI 98,1
7500K: SSI 68,5 CRI 93,9 CQS 96,1 TLCI 97,9
8000K: SSI 67,4 CRI 93,6 CQS 95,9 TLCI 97,7
8500K: SSI 66,5 CRI 93,3 CQS 95,7 TLCI 97,5
9000K: SSI 65,6 CRI 93,1 CQS 95,6 TLCI 97,3
9500K: SSI 64,9 CRI 92,9 CQS 95,4 TLCI 97,3
10000K: SSI 64,2 CRI 92,7 CQS 95,3 TLCI 97,1
15000K: TBA
20000K: TBA
Data disclaimer: Test results from internal testing unit. Each light comes with its own individual photometrics.
Controller
Battery Plate: 2x (V-Mount, B-Mount or Gold Mount)
DMX Connection: 5-Pin XLR
Power Input Connection: powerCON
USB: USB-C, USB-A
Mounting

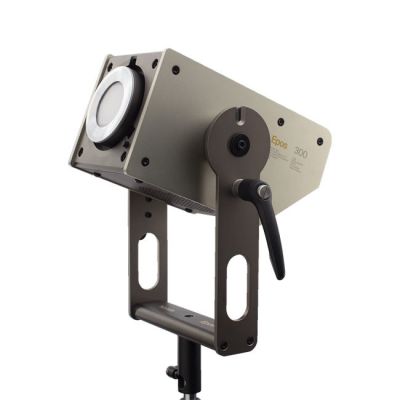

Yoke Mount: Kelvin Epos 300 Yoke (360° tilt)
Accessory Mount: Bowens S-Type
Fixture Mount: 1-1/8” stud + 5/8" receiver
Remote Operation
Control:Bluetooth, Kelvin Narrator App, DMX, Lumen Radio/Wireless DMX (built-in)
Bluetooth - Wireless Operating Range: ≤80m
Lumen Radio - Wireless Operating Range: ≤100m
Power
AC Input Power: 110 to 240 VAC, 50/60 Hz
DC Input Power: 12 to 30 VDC
Power Source: AC mains, External Battery
Max Power Consumption: 300W (nominal) / 320W (rated)
Operating Voltage (Battery) - V-Mount / B-Mount / G-Mount (Two Batteries) - Half Output: 14.4V/10A, 26V/6A
Operating Voltage (Battery) - V-Mount / B-Mount / G-Mount (Two Batteries) - Full Output: 26V/12A
Operating Temperature: -20°C ~ 45°C / -4°F ~ 113°F
Cable
Kelvin Epos 300 4-Pin Head Cable: 5m / 16.4 ft
Neutrik Power CONTRUE TOP AC Power Cable: 5m / 16.4 ft
Weight
Lamp Head w/Yoke: 4.7 kg / 10.36 lbs
Control Box: 3.48 kg / 7.67 lbs
Super Clamp: 0.44 kg / 0.98 lbs
Rolling Case (Filled): 15.18 kg / 33.46 lbs
Rolling Case (Empty): 5.35 kg / 11.79 lbs
Dimensions (LxWxD)
Lamp Head w/o Yoke: 26.5 x 13.6 x 14cm / 10.43 x 5.35 x 5.51in
Lamp Head w/ Yoke: 26.5 x 39.3 x 14cm / 10.43 x 15.47 x 5.51in
Control Box: 13 x 17.1 x 33.7cm / 5.12 x 6.73 x 13.27in
Super Clamp: 9.0 x 5.4 x 13.6cm / 3.54 x 2.13 x 5.35in
Reflector: 12.7 x 12.7 x 17.8cm / 5 x 5 x 7.01in
Rolling Case: 56 x 40 x 34.5cm / 22.05 x 15.75 x 13.58in
Certifications
FCC, CE, UKCA, IC, ROHS, KC, NCC, PSE, BIS
What Is In The Box?
Kelvin Epos 300 lamp head
Kelvin Epos 300 controller with battery plates
Protective cap for Epos 300 controller
Quick release lighting super clamp
Kelvin Epos Reflector (62°)
Bowens mount adapter for third-party fresnel and optics
Kelvin Epos 300 4-pin XLR head cable (5 meters / 16.4 ft)
Neutrik Power CONTRUE TOP AC power cable (5 meters / 16.4 ft)
Kelvin Epos 300 semi soft rolling case
3 Years Keep Rolling Warranty™
Lifetime customer support
Photometrics and Color Quality
CRI: 98
TLCI: 99
CQS: 97
SSI: 86 (@3200K)
SSI: 74 (@5600K)
