Description
Kelvin Epos 300 3-Light Kit with Accessories for Epos Series, RGBACL LED COB Studio Light (B-Mount)
This is the hero of your professional lighting setup with endless possibilities to light your story. Made to withstand life on set and deliver mind-blowing light accuracy and control.
300W full spectrum LED COB studio light
Accessories for Epos Series
Cantastoria™ RGBACL Six-Color Light Engine (patent pending)
CRI 98 | TLCI 99 | CQS 97 | SSI 86 @3200K | SSI 74 @5600K
2000K to 20000K CCT
Bluetooth, Kelvin Narrator App for iOS/Android, DMX, Lumen Radio/Wireless DMX (built-in)
V-Mount, B-Mount or Gold Mount
Bowens mount with Kelvin MagTech™ (proprietary)
USB-C, USB-A
6mm aluminium housing

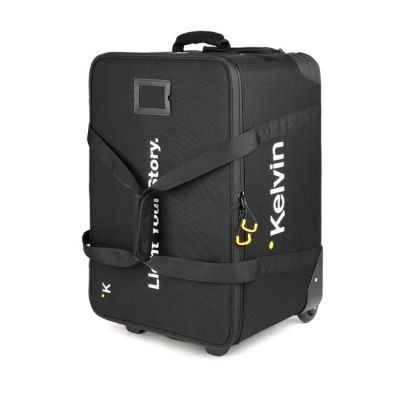

Comes with a durable water resistant semi soft rolling case
8.18 kg / 18 lbs incl. Yoke
Light Fixture

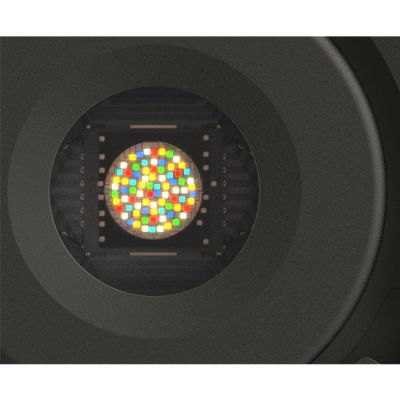

Light Engine - Cantastoria (RGBACL) Six-Color
Color Temperature - 2,000 to 20,000 K ±100 K
Modes - CCT, HSI, RGB, GELS, EFFECTS, XY
Dimming - 0-100% (continuous)

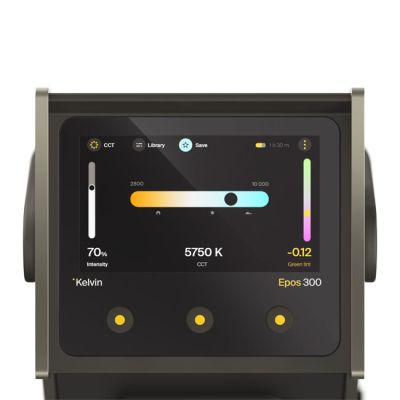

Display - 5’' TFT LCD Touch Screen
Housing Material - Aluminum
Number of LEDs - 80
Expected Lamp Life - 50 000 hours
Beam Angle - 93°
Beam Angle Kelvin Epos 300 Bowens Mount Reflector - 55°
Color Accuracy Standard - CRI 98 | TLCI 99 | CQS 97 | SSI 86 @3200K | SSI 74 @5600K
Controller
Battery Plate - 2x (V-Mount, B-Mount or Gold Mount)
DMX Connection - 5-Pin XLR
Power Input Connection - powerCON
USB - USB-C, USB-A
Mounting
Yoke Mount - Kelvin Epos 300 Yoke (360° tilt)
Accessory Mount - Bowens S-Type with Kelvin MagTech™ (proprietary)
Fixture Mount - 1-1/8” stud (junior pin) and 5/8" receiver (baby pin)
Proprietary Magnetic Mount for Diffusers, Intensifiers, etc. (front of light fixture) - Kelvin MagTech™
Remote Operation
Control - Bluetooth, Kelvin Narrator App, DMX, Lumen Radio/Wireless DMX (built-in)
Bluetooth - Wireless Operating Range: ≤100m
Lumen Radio - Wireless Operating Range: ≤100m
Power
AC Input Power - 110 to 240 VAC, 50/60 Hz
DC Input Power - 12 to 30 VDC
Power Source - AC mains, External Battery
Max Power Consumption - 300W (nominal) / 320W (rated)
Operating Voltage (Battery) - V-Mount / B-Mount / G-Mount (Two Batteries) - Half Output - 14.4V/10A, 26V/6A
Operating Voltage (Battery) - V-Mount / B-Mount / G-Mount (Two Batteries) - Full Output - 26V/12A
Operating Temperature --20°C ~ 45°C / -4°F ~ 113°F
Hot Swapping - Yes
Cable
Kelvin Epos 300 4-Pin XLR Head Cable - 5m / 16.4 ft
Neutrik Power CONTRUE TOP AC Power Cable - 5m / 16.4 ft
Weight
Lamp Head w/Yoke - 4.7 kg / 10.36 lbs
Control Box - 3.48 kg / 7.67 lbs
Super Clamp - 0.44 kg / 0.98 lbs
Rolling Case (Filled) - 15.18 kg / 33.46 lbs
Rolling Case (Empty) - 5.35 kg / 11.79 lbs
Dimensions (LxWxD)
Lamp Head w/o Yoke - 26.5 x 13.6 x 14cm / 10.43 x 5.35 x 5.51in
Lamp Head w/ Yoke - 26.5 x 39.3 x 14cm / 10.43 x 15.47 x 5.51in
Control Box - 13 x 17.1 x 33.7cm / 5.12 x 6.73 x 13.27in
Super Clamp - 9.0 x 5.4 x 13.6cm / 3.54 x 2.13 x 5.35in
Reflector - 12.7 x 12.7 x 17.8cm / 5 x 5 x 7.01in
Rolling Case - 56 x 40 x 34.5cm / 22.05 x 15.75 x 13.58in
Packed incl. Rolling Case and Accessories for Epos Series in Cardboard
L x W x D - 80 x 50 x 75cm / 31.49 x 19.68 x 29.52in
Weight - 43.08kg / 97.15lbs
What’s In The Box

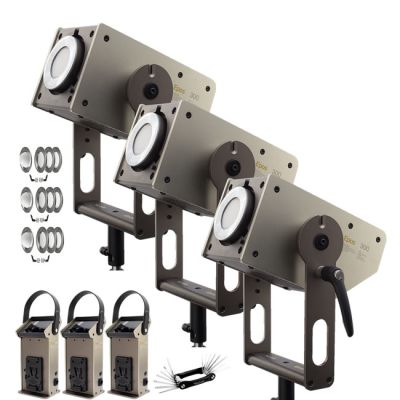

3 x Kelvin Epos 300 (lamp head, controller with battery plates and protective cap for Epos 300 controller )
3 x Kelvin Epos 300 Rolling Case
3 x Quick release lighting super clamp
3 x Kelvin Epos Reflector (62°)
3 x Bowens mount adapter for third-party Fresnel and optics
3 x Kelvin Epos 300 4-pin XLR head cable (5 meters / 16.4 ft)
3 x Neutrik Power CONTRUE TOP AC power cable (5 meters / 16.4 ft)
3 x Kelvin Epos Light Diffuser D100
3 x Kelvin Epos Medium Diffuser D90
3 x Kelvin Epos Heavy Diffuser D75
3 x Kelvin Epos Dome Diffuser
3 x Kelvin Epos Umbrella Mount
1 x Kelvin Multi-Tool for Lighting, Video and Photo
3 Years Keep Rolling Warranty™
Lifetime customer support
