Description

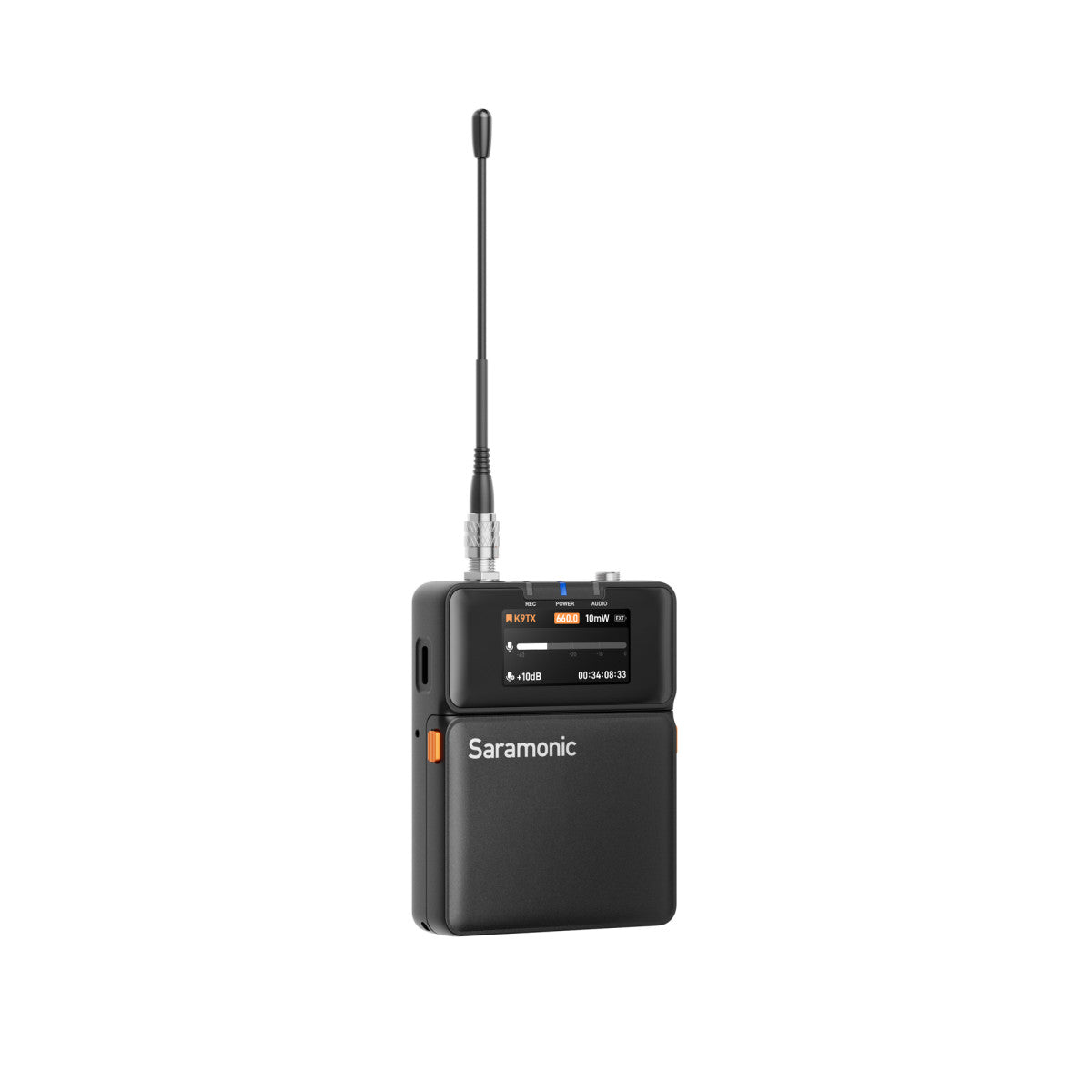

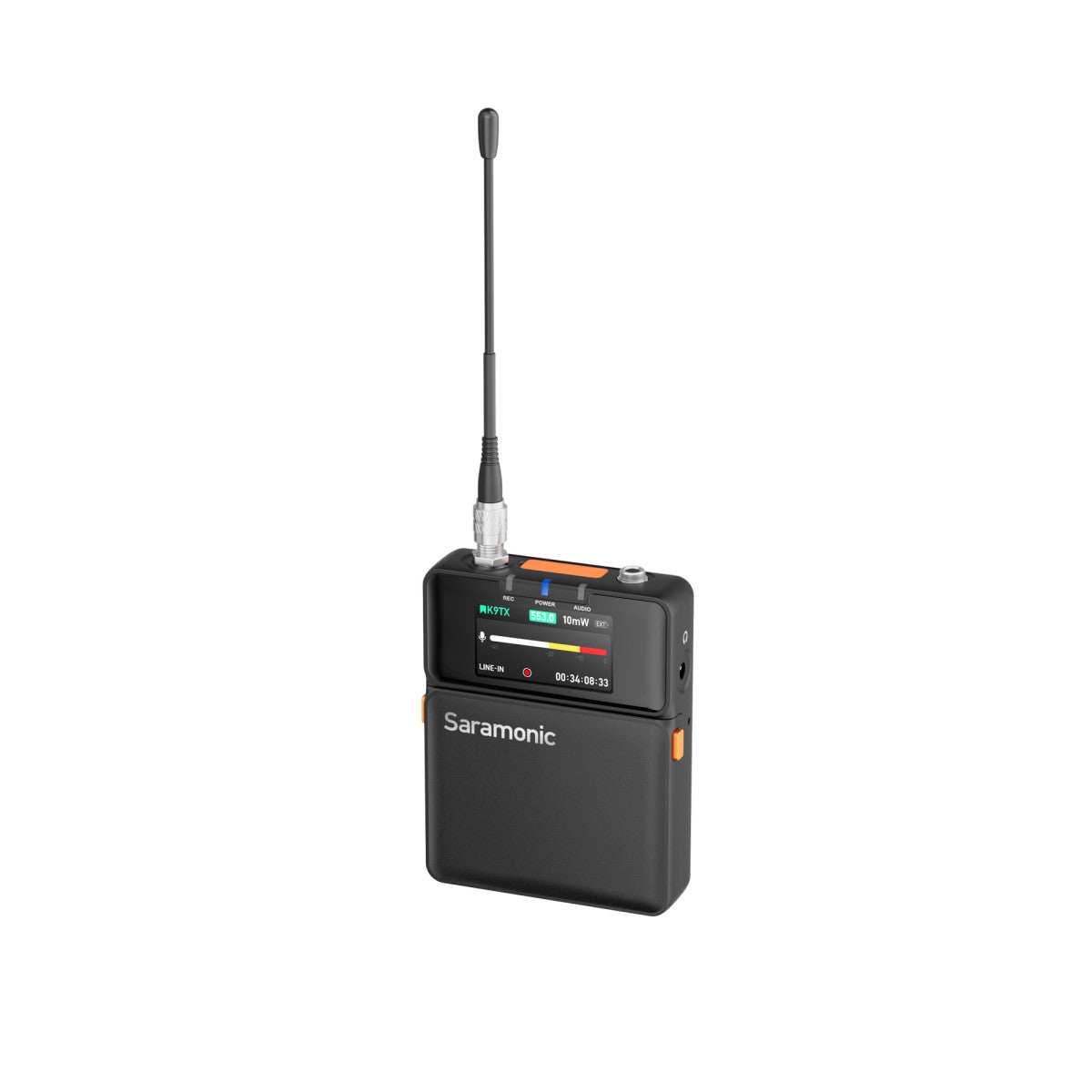

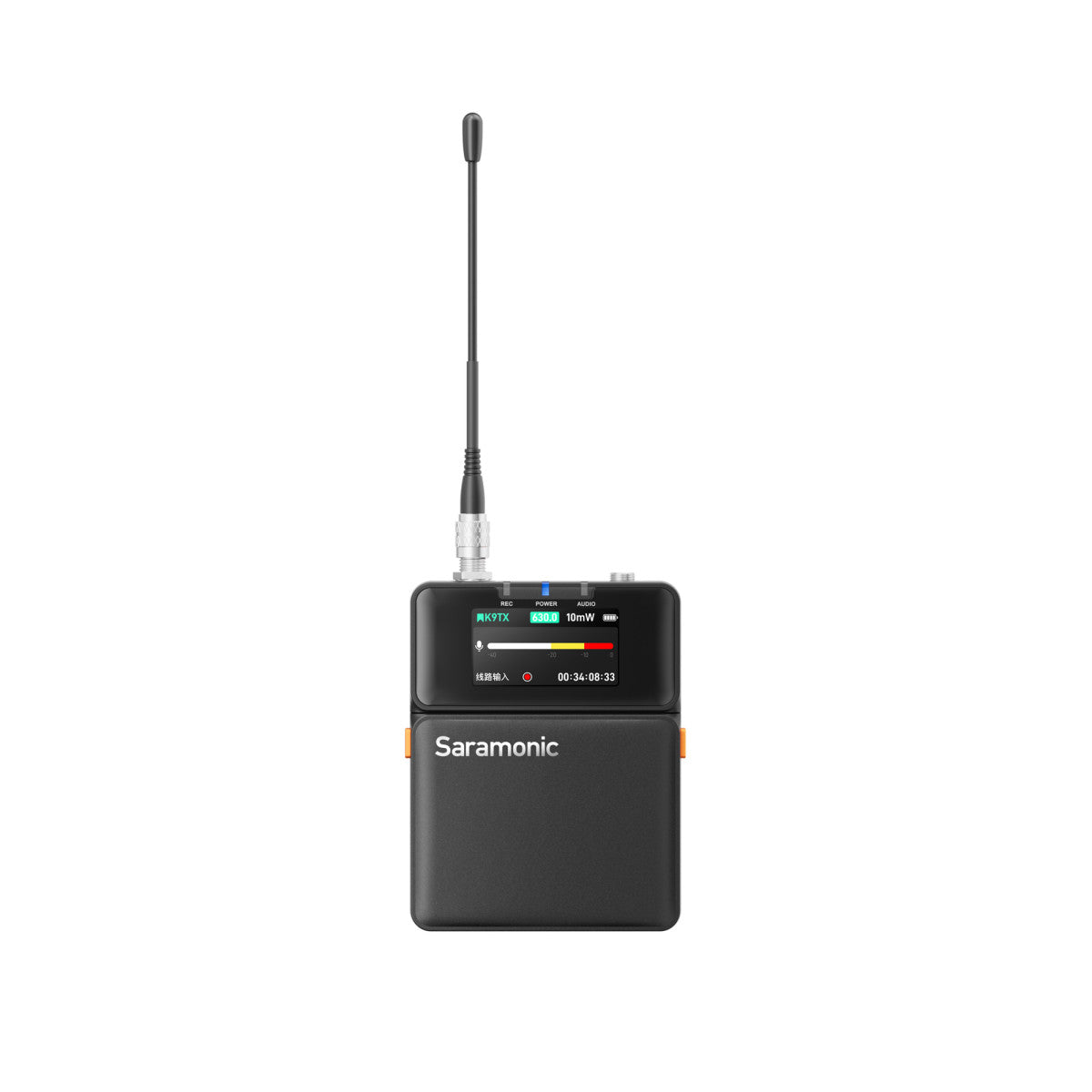

The Saramonic K9-US-TX is a body pack transmitter with lavalier for the K9-RX-US receiver. It includes the K9-Lavalier, a 3mm miniature lavalier that is IP65 rated and is ideal for extremely discreet professional miking. The transmitter features a locking 3.5mm input that transmit mic or line-level signal and features 130dB dynamic range, allowing you to capture every sonic detail from a whisper to a scream. The transmitter is also compatible with 3.5mm TRS Sennheiser pin-out mics and feature selectable 3V or 5V, allowing you to choose hundreds of other lavalier, headset, and other mic options to expand the system further. Switch to line-level and connect to mixers, music players, or any line-level device output you want to transmit wirelessly to the receiver. Perfect for capturing an IFB mix from the production mixer or recorder for a real-time feed to directors, producers, and camera operators.
Miniature Lavaliers that are Discrete, Rugged, and Ready for Real Action

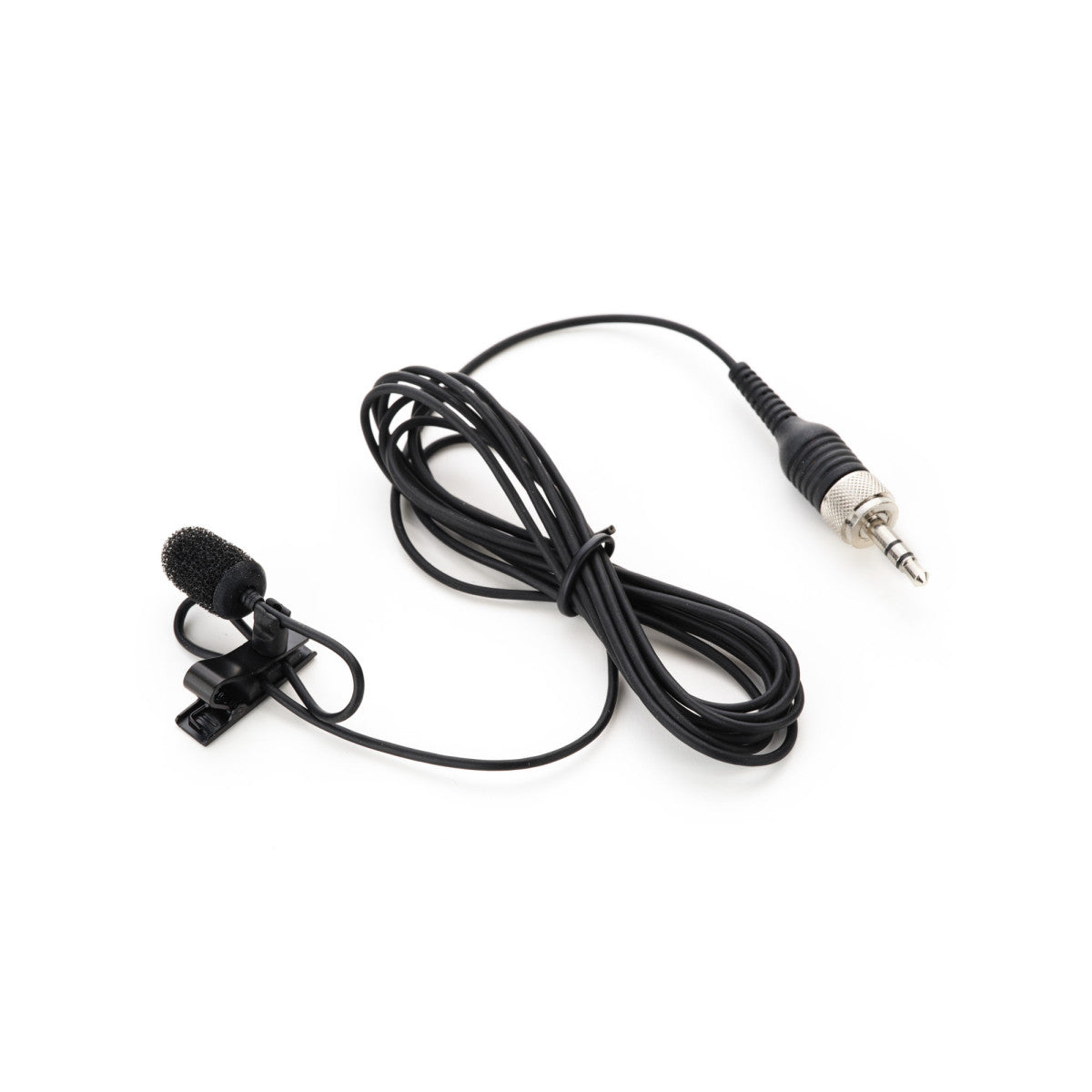

The K9-US-TX includes a miniature lavalier that is not just tiny but can handle anything your wild production throws at them. Designed to capture crystal clear audio this tiny lavalier delivers unmatched durability, and crystal-clear sound in any environment. Ultra-compact and discrete with a 3mm diameter, making it ideal for concealing in clothes or in costumes on set. But it’s not just tiny, it’s tough. IP67 rated for resistance to water and dust and feature a Kevlar® reinforced cable with a remarkable tensile strength. Ensuring this lav can handle the toughest environments from the desert to a rainstorm and the wear and tear of a pro production.
32-Bit Float Recording Transmitters with Advanced Timecode Synchronization
The K9TX transmitter features both 24-bit and 32-bit float on-board recording with advanced timecode synchronization. Ideal for situations and scenarios with heavy wireless interference, allowing you to record your talent and ensure frame accurate synchronization with your camera or recorder. The transmitter includes a 32GB MicroSD card and can be expanded up to 256GB, allowing an incredible amount of recording power. The K9TX transmitter can jam sync to external timecode sources into its 3.5mm input and wirelessly using the Saramonic TC NEO (Sold Separately). The transmitter can also store up to 8 sync groups, allowing you to easily change your configuration as you change timecode sources.
*Simultaneous recording and wireless transmission are disabled within the US*
Saramonic K9-TX-US - Belt Pack Transmitter and 3mm Lavalier for the K9-US System
1 x K9TX-US Belt Pack Transmitter
1 x Miniature Lavalier Microphones with Locking 3.5mm Connector
1 x Lavalier Microphone Clip
1 x Foam Lavalier Windscreen
1 x Furry High-Wind Lavalier Windscreen
1 x 32GB MicroSD Card
3 x SMA Antenna for Transmitters
1 x Belt Clip
2 x Lithium-Iron AA Batteries
1 x QR Code Card for Manual
1 x QR Code Card for APP Installation
1 x Antenna Length and Frequency Description Card
Key Features
- Replacement or Additional Transmitter for K9-US UHF Wireless System
- Features 32-Bit Float Onboard Recording and Timecode for Seamless Synchronization, 130dB Dynamic Range, 30dB of Gain, Selectable RF Out, and 3v or 5v Mic Power or Line-Level Input
- Includes Premium 3mm Miniature Omnidirectional Lavalier Mic with Superior Dialog Sound Quality in an Ultra-Compact Form Factor IP67 Rated with Water and Dust Resistance, and a Kevlar® Reinforced Cable
Key Specifications
- Transmitter:
- RF Modulation: Proprietary Digital RF Modulation
- RF Freq Range: 550MHz ~ 960MHz (Assign local legal frequency bands based on the region)
- RF Power: 10mW, 25mW, 50mW, 100mW
- RF Frequency Step: 100KHz
- RF Bandwidth: 200KHz
- Channel RF Spacing: 700KHz
- Antenna Connector: 50Ω SMA
- Dynamic Range: 130dB
- Distortion: <0.5%
- Frequency Response: 20Hz ~ 20kHz
- Selectable Low Cut: OFF, 75Hz, 100Hz, 150Hz
- Mic Power/Input Select: MIC-3V, MIC-5V, Line-Level
- Mic Input Connector: 3.5mm TRS
- Gain Range: 0dB ~ 30dB
- ADC Sampling Rate: 48KHz
- Bit Depth: 24bit
- Clock Accuracy: 0.15 PPM (1 frame out in 48 hours)
- Timecode Type: LTC (SMPTE)
- Timecode Framerates: 23.98, 24, 25, 29.97, 29.97DF, 30, 30DF, 50, 60
- Media: MicroSD Card (Up to 256Gb)
- File Format: Wav
- Sampling-Rate: 48KHz
- Record Format: 24-Bit or 32-Bit Float
- Mic Power MIC-3V, MIC-5V, LINE
- Equivalent Input Noise (EIN): -132dBV (-130dBu) max (A-weighting, gain= 30dB, 150ohm source impedance)
- Power Supply: External Battery / Power
- Battery Life: Up to 9+ Hours with High-Quality Lithium-Ion AA’s
- Dimensions 3.15 x 2.44 x 0.74†(80 x 62 x 19mm)
- Weight: 3oz (85g) (excluding batteries and antenna) – 4.2oz (120.5g) (including batteries and antenna)
- Operating Temperature -20°C ~ +45°C
- Storage Temperature -30°C ~ +60°C
- Lavalier:
- Polar Pattern: Omnidirectional
- Max SPL: 118dBSPL
- Dynamic Range: 110dB
- Sensitivity: -38dB (1.5V, 2.2K, at 1KHz)
- Equivalent Noise Level: Typically, 25dB (A-weighted, Equivalent Sound Pressure Level)
- Signal-to-noise Ratio: >68dB
- Operating Voltage 1.3V to 5.0V
- Frequency Response: 20Hz~20KHz
- Distortion: <3%
- Weatherproof Standard: IP67
- Operating Temperature: -20℃~+70℃
- Tensile Performance: ≥50 N
- Tensile Strength Maximal pulling force ≥50 N
- Mic Head Size: 0.12 x 0.69 (Ø3mm x 17.5mm)
- Weight: 0.39 (11g)
- Cable Length: 5.9’ (1.8m)
- Connector: Locking 3.5mm TRS
Warranty: 3-Month
Authorized Saramonic dealer – The LA Firm, Los Angeles.
