Description

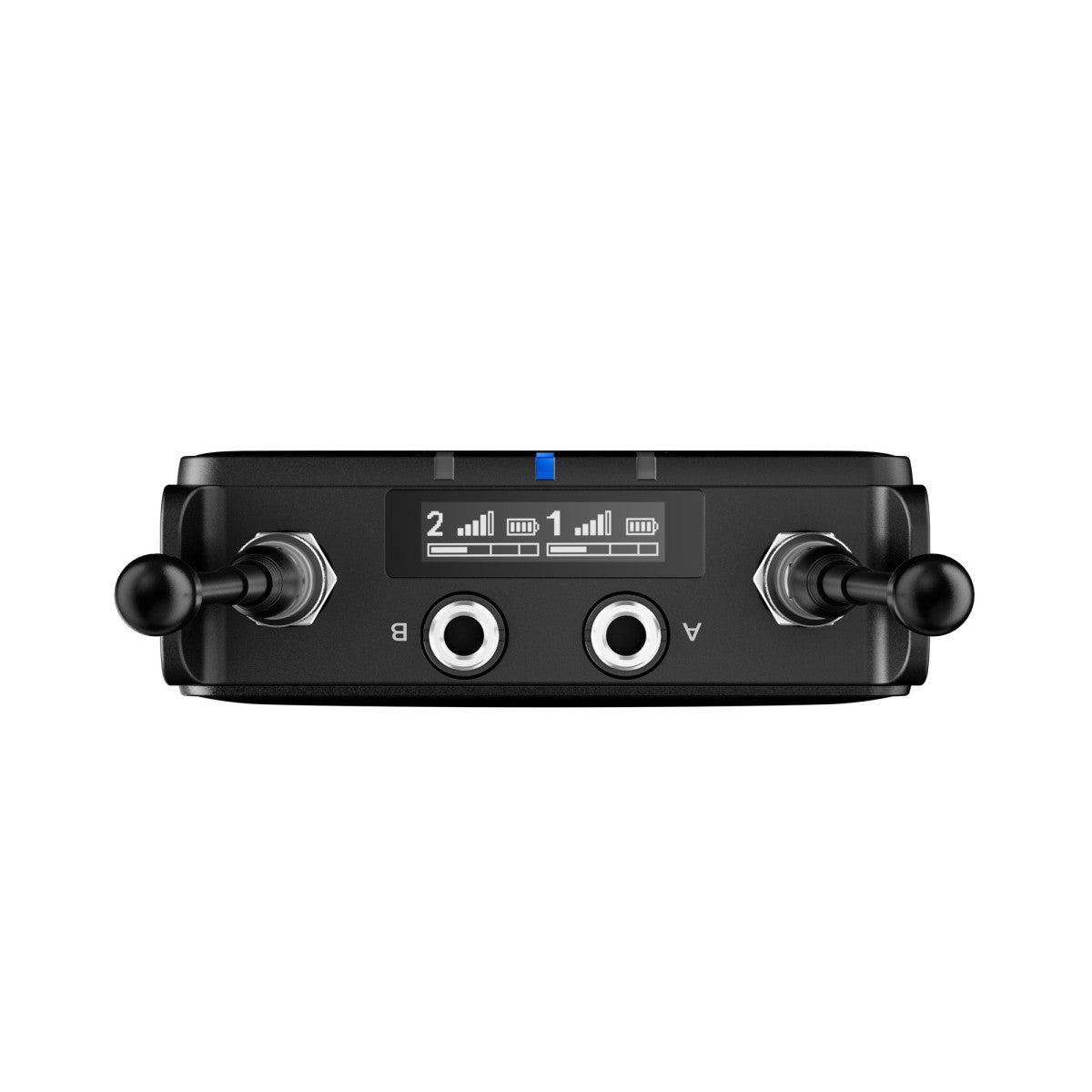

The Saramonic K9-US-RX is a dual cam-mount receiver for K9-TX-US transmitters. It features flexible output options, allowing users to maximize their recording capabilities. It features two locking 3.5mm analog outputs that can be configured to your needs, with a generous 120dB of analog output. A USB-C port gives you a digital output for mobile devices and computers, or an external powering input to power the receiver with a battery pack. A 2nd LED display on top of the receiver provides easy viewing of receiver status while in a mixer bag or on-camera. Capable of running up to 20 systems simultaneously in the same area, the K9-US-RX is designed to handle large productions with ease. The elbow-style antennas allow easy positioning for optimum reception when on camera or in a bag, and the SMA connection allow the use of antenna distribution systems, and external antenna paddles for even more stability and flexibility.

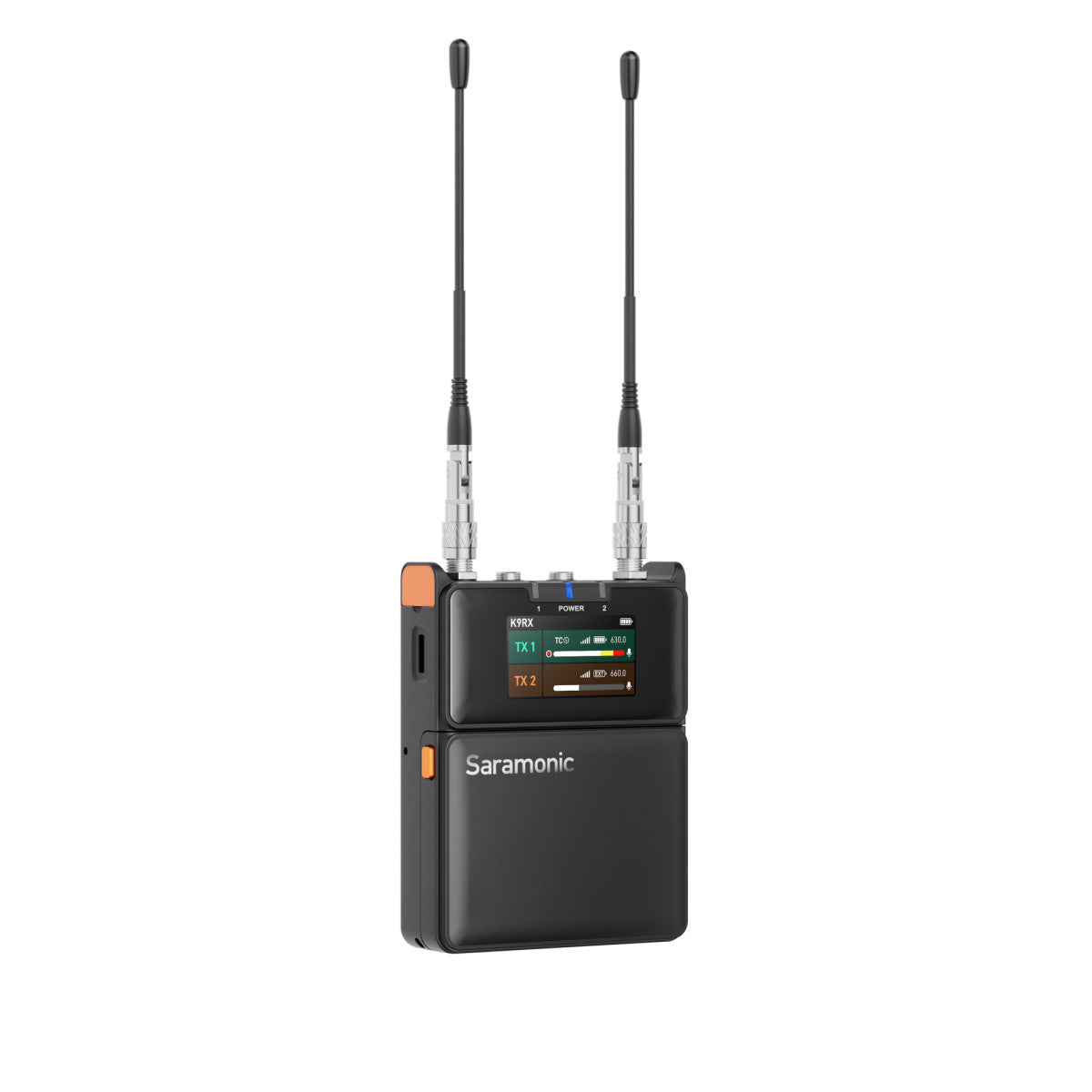

Saramonic K9-RX-US - Camera-Mount Dual-Channel Receiver for the K9-US System
1 x K9RX-US Dual Receiver
6 x SMA Antenna for Receiver
1x Belt Clips
1 x Cold Shoe Mount
2 x Locking 3.5mm TRS to XLR Output Cable
1 x Locking 3.5mm TRS to 3.5mm TRS Output Cable
2 x Lithium-Ion AA Batteries
1 x QR Code Card for Manual
1 x QR Code Card for APP Installation
1 x Antenna Length and Frequency Description Card
Key Features
- Replacement or Additional Dual-Channel Receiver for K9-US UHF Wireless System
- Features XLR, 3.5mm & USB-C Outputs, 120dB Dynamic Range, Auto Frequency Scanning, and Dual LED Displays on the Front Panel and Top of Receiver
- Ultra-Wide 550-960MHz Bandwidth with Auto Frequency Scanning & GPS Frequency Updates for Superior Interference Resistance
- Total Control with Saramonic System Mobile App, that Manages and Controls up to 48 Devices’ System Settings, Configurations, Recording, Synchronization, Grouping, Power, and much more
- Can be used as an On-Set IFB Receiver when Paired with a K9-TX-US, Perfect for capturing a mix from the production mixer or recorder for a real-time feed to directors, producers, and camera operators
Key Specifications
- RF Modulation: Proprietary Digital RF Modulation
- RF: Freq Ranges: 550MHz ~ 960MHz (Assign local legal frequency bands based on the region)
- RF Power: 10mW, 25mW, 50mW, 100mW
- RF Frequency Step: 100KHz
- RF Bandwidth: 200KHz
- Channel RF Spacing: 700KHz
- Antenna Connectors: 2x 50Ω SMA
- Receiver Output: 2x Locking 3.5mm Analog Outputs & USB-C Digital Output
- Analog Output Dynamic Range: 120dB
- Distortion: <0.5%
- DAC Bit-Depth: 24-bit
- Output Type: Mono, Stereo, Headphone
- Power Supply: External Battery / Power
- Battery Life: Up to 8+ Hours with High-Quality Lithium-Ion AA’s
- Dimensions: 3.47 x 2.6 x 0.93†(88.1 x 66.1 x 23.6mm)
- Weight: 4.3oz (112g) (excluding batteries and antennas) – 5.6oz (157.5g) (including batteries and antennas)
- Operating Temperature -20°C ~ +45°C
- Storage Temperature -30°C ~ +60°C
Warranty: 3-Month
Authorized Saramonic dealer – The LA Firm, Los Angeles.
