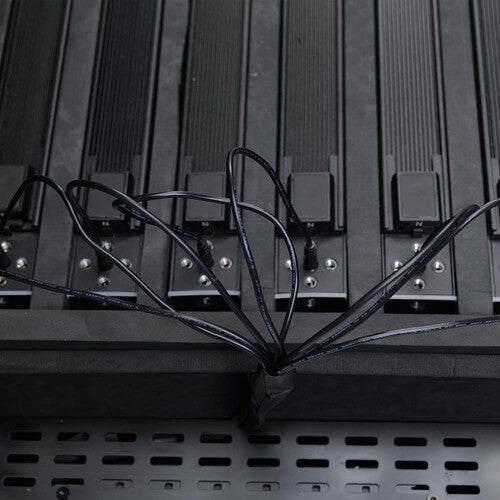

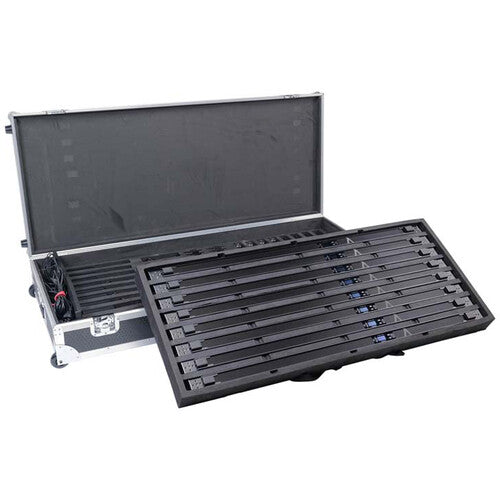

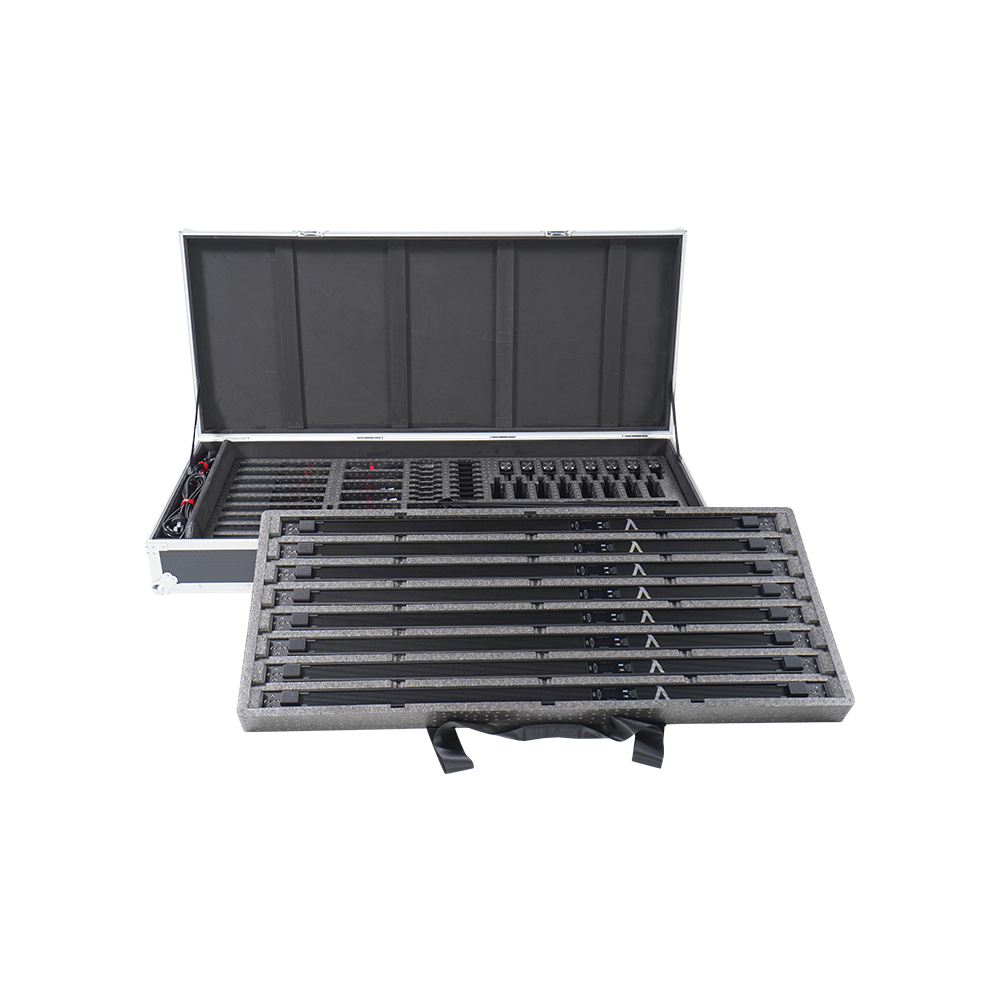

Expand the capabilities with the 4' INFINIBAR PB12 RGB LED Light Panel 8-Light Kit from Aputure, which includes additional power cables, adapters, and light control grids in a sturdy flight case. In addition to charging each light individually, the kit is equipped with a 330W power adapter with 8-way splitters that can simultaneously charge all fixtures.
Aputure INFINIBAR PB12 RGB LED Light Panel (4')
Versatile and precise, the 4' INFINIBAR PB12 RGB LED Light Panel from Aputure is a professional's choice for dynamic and colorful lighting designs. Featuring 96 pixels of CRI 96/TLCI 98 color quality throughout its multiple color modes, the INFINIBAR is designed to be a key light, built directly into sets, or used with its connector ecosystem to create new shapes and designs. The unit's proprietary RGBWW chipset produces color temperature light of 2000 to 10,000K with full green-magenta adjustment, and it has advanced hue, saturation, and intensity controls for a wide gamut of precise and accurate colors. Connect multiple INFINIBAR panels of any size with up to ten different connectors, available separately, then synchronize them via the Sidus Link app, LumenRadio CRMX, or through wired DMX with an optional USB-C to DMX adapter.
Lightweight at 4.3 lb, the INFINIBAR features a durable aluminum housing that's also mountable with the included Clamp to Baby Pin Adapter, two 1/4-20" female threads , magnetic spacers, and the Straight Connector for the INFINIBAR Rail system. The unit can be powered with a built-in lithium battery that can operate at 100% brightness for 80 minutes or via the included AC adapter. Alternately, multiple units can share one power supply when linked together with the power-sharing connectors.
Output
4' 27W panel light with proprietary RGBWW chipset and 96 individual pixels (or lighting zones)
617 lux at 7500K
0 to 100% brightness control at increments of .1%
Nine built-in lighting effects: Fireworks II, Fire II, Paparazzi II, Faulty Bulb II, TV III, Pulsing III, Cop Car III, Lightning III, Party II
Seven pixel effects: Color Fade, Color Cycle, 1-Pixel Chase, 2-Pixel Chase, 3-Pixel Chase, Rainbow, Pixel Fire
Color
Fully tunable correlated color temperature (CCT) from 2000 to 10,000K with green and magenta adjustment
High color standards of CRI: 96+, TLCI: 98+, SSI (D56): 74, SSI (Tungsten): 85, TM-30 Rf: 94, and TM-30 Rg: 103
Advanced HSI with white point CCT control, industry-standard xy (CIE 1931), RGB, 300+ gel presets, and greater than 90% of colors within Rec.2020 color space
Power
AC adapter included
Built-in 59.2Wh lithium battery lasts up to 80 minutes at maximum output
Smart Battery Life Mode adjusts the runtime to 2, 4, 6, and 8 hours
Share AC Power over multiple INFINIBARs with connector ecosystem
Connect and Control
Multiple control methods: Sidus Link App, LumenRadio CRMX, DMX/RDM via USB-C cable available separately
Straight connector included; nine other splicing connectors available separately (triangle flat, triangle 3D, hexagon flat, hexagon 3D, 3-way flat, 4-way flat, 6-way flat, square flat, and square 3D)
Infinite blending design to reduce visible gaps when connecting multiple lights
Included mounting options: Clamp to Baby Pin Adapter, two 1/4-20" female threads, magnetic spacers, and the Straight Connector for the INFINIBAR Rail system
Aputure 45° Slip-On Grid for INFINIBAR PB12 RGB LED Light Panel
This Aputure 45° Slip-On Grid is specifically designed for the INFINIBAR PB12 RGB LED Light Panel. The 45° grid narrows the beam spread, adds directional control, and minimizes spill light.
Item Type
1 x LED Light Panel
Included Storage Case
1 x Case
Photometrics
120° at 3200K:
50 fc / 542 Lux at 3.3' / 1 m
130 fc / 1410 Lux at 1.6' / 0.5 m
120° at 5600K:
55 fc / 593 Lux at 3.3' / 1 m
148 fc / 1600 Lux at 1.6' / 0.5 m
Show More
Color Temperature
2000 to 10,000K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 98
SSI 74 at 5600K
SSI 85 at 3000K
TM-30 Rf 94
TM-30 Rg 100
Show More
Dimming
Yes, Built-In Dimmer
Beam Angle
120°
Wireless Remote Control Type
Bluetooth
Wireless CRMX (LumenRadio)
Power Source
AC Power (Cable Included)
Battery (Built-In)
Battery
1 x Proprietary Rechargeable Lithium (Built-In)
• Up to 80-Minute Runtime at 100% Brightness
• 150-Minute Charge Time
AC Input Power
100 to 240 VAC, 50 / 60 Hz at 1.5 A
DC Input Power
24 VDC at 1.8 A
Power Consumption
36.5 W
Fixture Mounting
Support Mount
2 x 1/4"-20 Female Thread
Light Fixture
Item Type
1 x LED Light Panel
Included Storage Case
1 x Case
Lumens
2077
Photometrics
120° at 3200K:
50 fc / 542 Lux at 3.3' / 1 m
130 fc / 1410 Lux at 1.6' / 0.5 m
120° at 5600K:
55 fc / 593 Lux at 3.3' / 1 m
148 fc / 1600 Lux at 1.6' / 0.5 m
Color Temperature
2000 to 10,000K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 98
SSI 74 at 5600K
SSI 85 at 3000K
TM-30 Rf 94
TM-30 Rg 100
Cooling System
Passive
Dimming
Yes, Built-In Dimmer
Expected Lamp Life
50,000 Hours
Beam Angle
120°
Umbrella Mount
No
Front Accessory Mount
None
Connectivity
Wireless Remote Control Type
Bluetooth
Wireless CRMX (LumenRadio)
Mobile App Compatible
Yes: Android & iOS
App Name: Sidus Link
*As of February, 2023: Check with manufacturer for the most up-to-date compatibility
Wireless Channels
None
Wireless Groups
None
Wireless Range
262.5' / 80 m (Bluetooth)
Power & I/O
Power Source
AC Power (Cable Included)
Battery (Built-In)
Battery
1 x Proprietary Rechargeable Lithium (Built-In)
• Up to 80-Minute Runtime at 100% Brightness
• 150-Minute Charge Time
Battery Charging
AC to DC Adapter (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz at 1.5 A
DC Input Power
24 VDC at 1.8 A
Included Adapter / Cable
1 x Edison Plug to Barrel / Coax AC to DC Adapter
Inline Switch
No
Power Pass-Thru
No
Power Consumption
36.5 W
Mounting
Fixture Mounting
Support Mount
2 x 1/4"-20 Female Thread
Environmental
Environmental Protection
None
General
Display
None
Dimensions
47.4 x 1.8 x 1.7" / 120.4 x 4.5 x 4.3 cm (Fixture)
Weight
4.32 lb / 1.96 kg (Fixture)
Packaging Info
Package Weight
11.5 lb
Box Dimensions (LxWxH)
50.5 x 5.25 x 5"
Aputure 45° Slip-On Grid For INFINIBAR PB12 RGB LED Light Panel Specs
Attachment Method
Slip-On
Grid Angle
45°
Packaging Info
Package Weight
1.27 lb
Box Dimensions (LxWxH)
26 x 3.6 x 2"
