Description
Most suitable applications: Fixed installations
PoE: PoE ++ Optional (up to 1000W)
RLinkX (Link redundancy): Yes
Groups (VLAN segmentation): Yes
MultiLinkX (Link aggregation): Yes (supported in a future firmware
Profile manager: Yes
Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
MAC address table: 16384 entries
Address learning / Aging: Self learning, Auto aging
Switching throughput: 60Gbps
Jumbo frames: MTU up to 12000
IGMP support: Yes (V1/V2/V3)
IGMP snooping: Yes, enabled by default
Port sensing: Auto negotiation
Auto crossover: MDI / MDIX
Auto sensing: Full or Half Duplex (Gigabit is Full Duplex) Power connectivity: 1 x IEC (C14) inlet for each PSU
Power input: 100-240VAC, 50-60Hz
Power consumption: Maximum 50W - Maximum 1050W (Depending on PoE and PSU configuration)
Fuse: NA

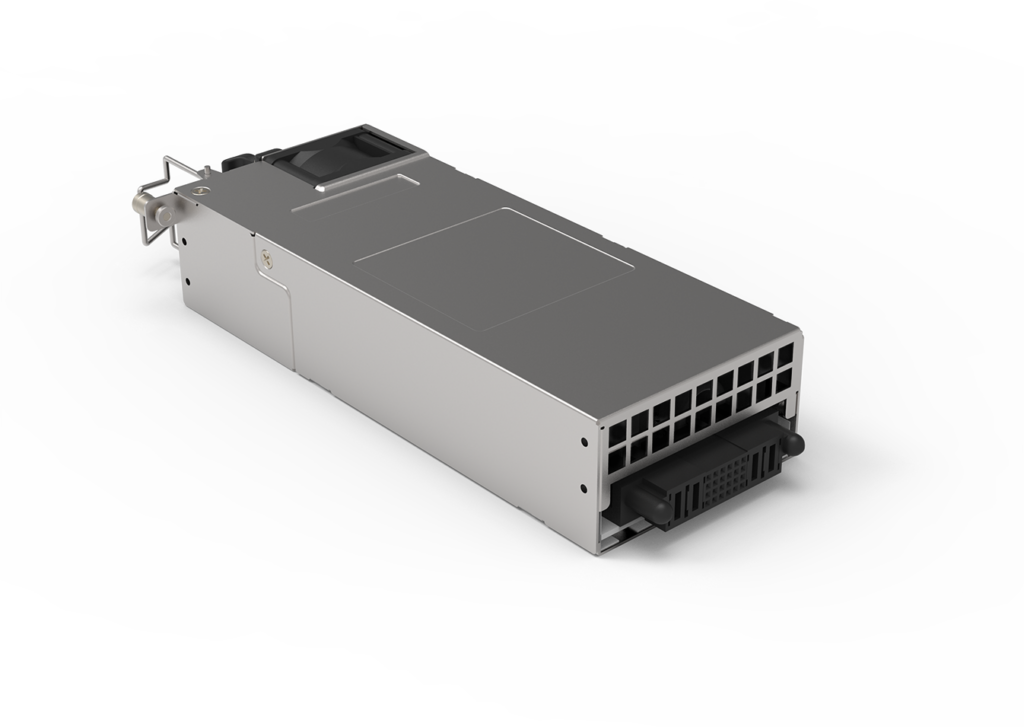

Backup power input: 100-240VAC, 50-60Hz (through second hot swappable PSU)
Backup PoE power input: 100-240VAC, 50-60Hz (through second hot swappable PSU)
PoE: PoE ++ Optional (up to 1000W) Mounting: Rack
Enclosure: Robust metal housing
Dimensions (W x D x H): 482 x 309 x 44 mm (19" x 12,2" x 1,73")
Weight:
4,56 kg (with 1x 100W PSU inserted)
5,2 kg (with 2x 100W PSU's inserted)
4,7 kg (with 1x 550W PSU inserted)
5,48 kg (with 2x 550W PSU's inserted)
Packaging: 545 x 335 x 125 mm
Environment:
Operating temperature: 0 to +50 °C
Storage temperature: -10 to +70 °C
Humidity (non condensing): 5 to 95% RH
Noise level @1m:
Max 21,8dBA (Ambient: 0 – 30°C)
Max 37dBA (Ambient: 30 – 50°C)
Max 32,5dBA (PoE <550W, Ambient: 0 – 30°C)
Max 58dBA (PoE <550W, Ambient: 30 – 50°C)
Max 36dBA (PoE >550W, Ambient: 0 – 30°C)
Max 68dBA (PoE >550W, Ambient: 30 – 50°C)
BTU:
30i with 1x 100W PSU: Maximum BTU = 101.6 BTU/hr
30i with 2x 100W PSU: Maximum BTU = 111.5 BTU/hr
30i with 1x 550W PSU: Maximum BTU (Max PoE all ports) = 170.6 BTU/hr
30i with 2x 550W PSU: Maximum BTU(Max PoE all ports) = 272.96 BTU/hr
Certificates/Approvals: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
Standards: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024
