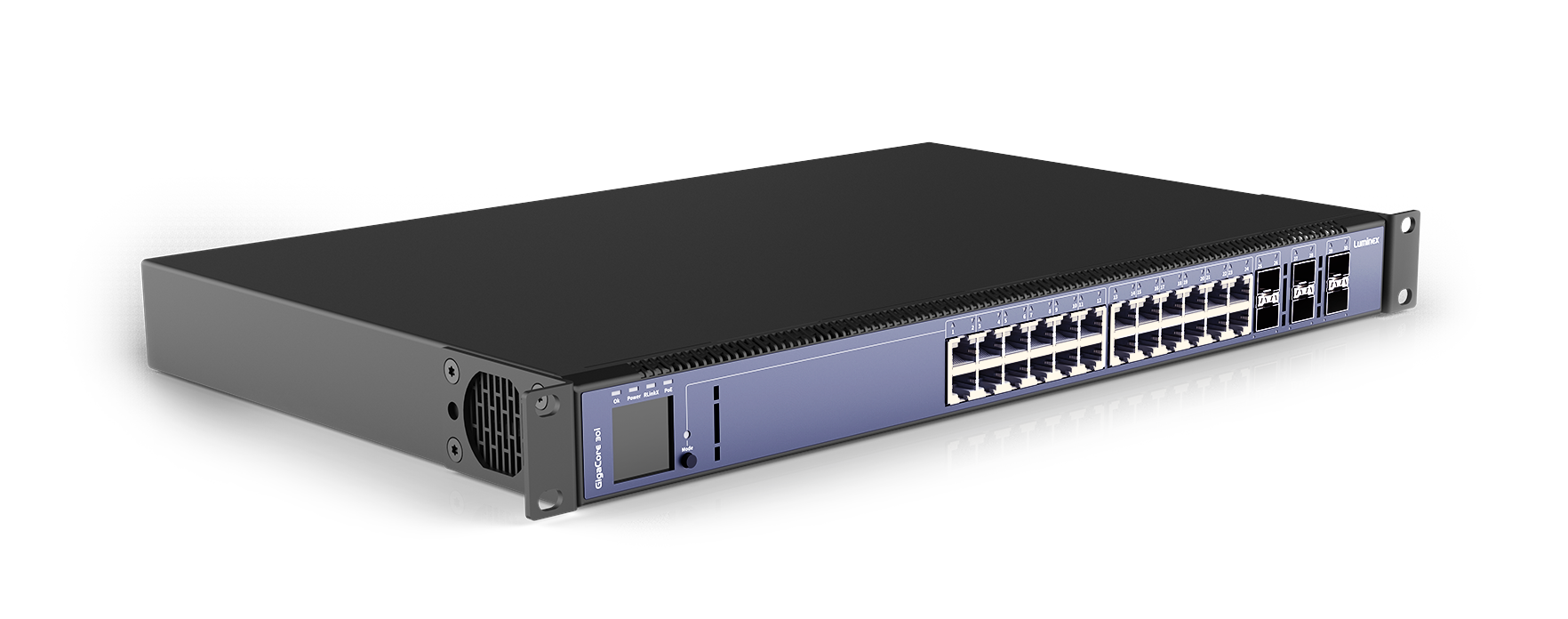

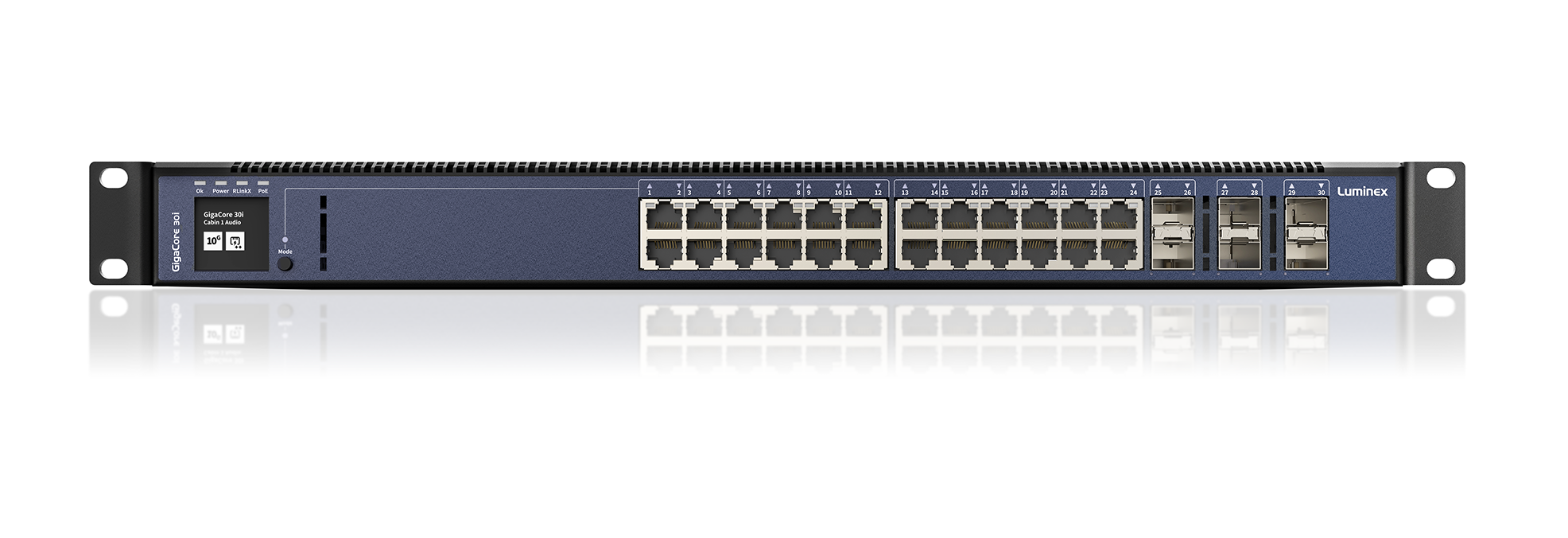

GigaCore 30i – 24x1G – 6x10G(SFP+) – PoE++ - 2nd PSU 500W

LUM-LU0100077-10P-2S5
Regular price
$6,250.00
Sale price
$5,625.00

Most suitable applications: Installations
PoE: PoE ++ Optional (up to 1000W)
RLinkX (Link redundancy): Yes
Groups (VLAN segmentation): Yes
MultiLinkX (Link aggregation): Yes (With future FW upgrade)
Profile manager: Yes
Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
MAC address table: 16384 entries
Address learning / Aging: Self learning, Auto aging
Switching throughput: 168Gbps
Jumbo frames: MTU up to 12000
IGMP support: Yes (V1/V2/V3)
IGMP snooping: Yes, enabled by default
Port sensing: Auto negotiation
Auto crossover: MDI / MDIX
Auto sensing: Full or Half Duplex (Gigabit is Full Duplex) Ethernet connectivity: 24 x RJ45 connectors (1Gbps))
Fiber connectivity: 6 x SFP+ cages (10Gbps/1Gbps) (independent from other ports)
Ethernet port speed: 1Gbps
Serial: 1 x USB C Power connectivity: 1 x IEC (C14) inlet for each PSU
Power input: 100-240VAC, 50-60Hz
Power consumption: Maximum 50W - Maximum 1050W (Depending on PoE and PSU configuration)
Fuse: NA

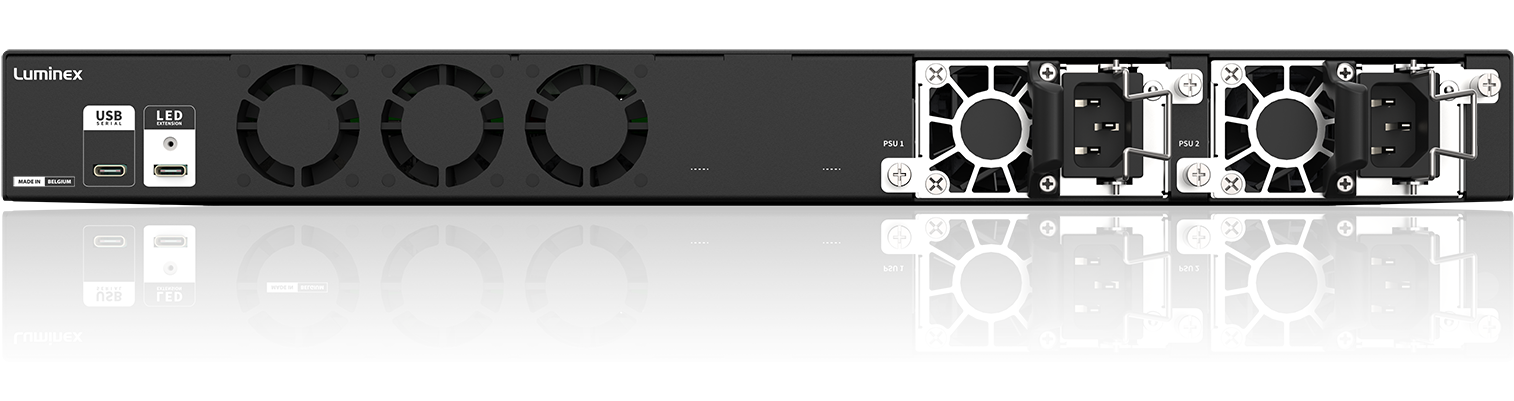

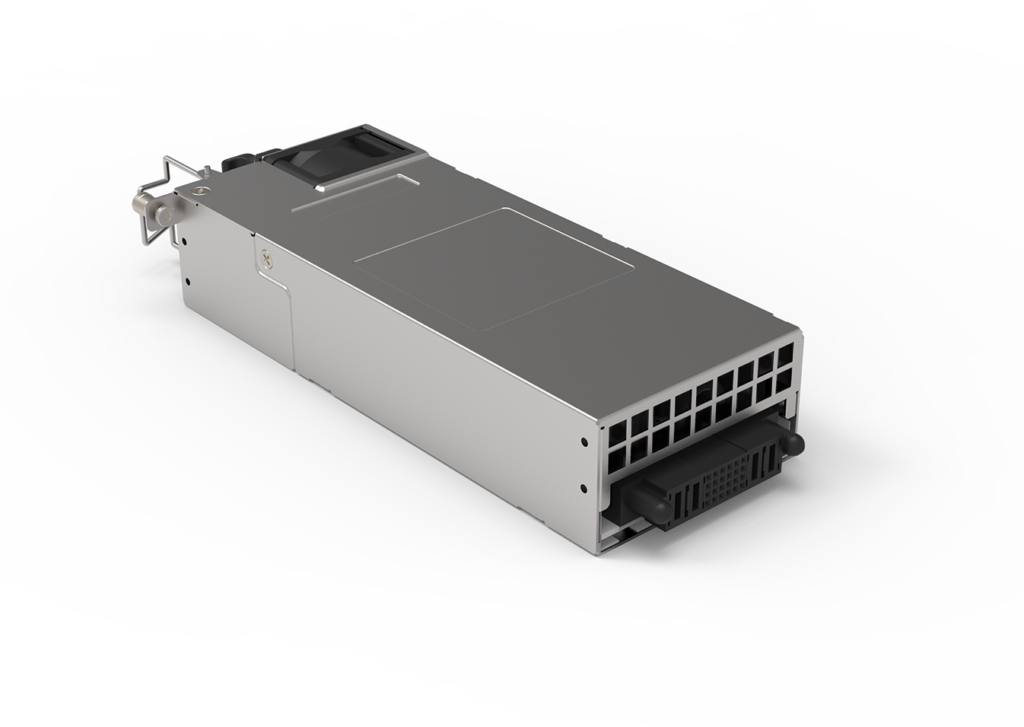

Backup power input: 100-240VAC, 50-60Hz (through second hot swappable PSU)
Backup PoE power input: 100-240VAC, 50-60Hz (through second hot swappable PSU)
PoE: PoE ++ Optional (up to 1000W)
