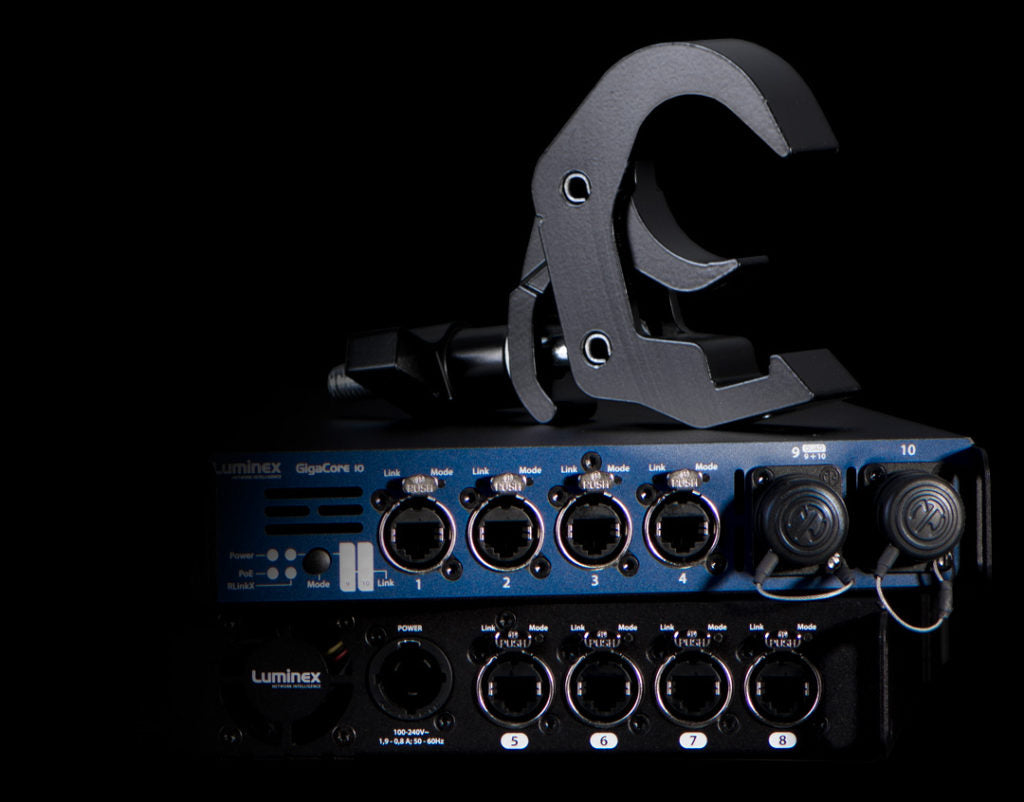

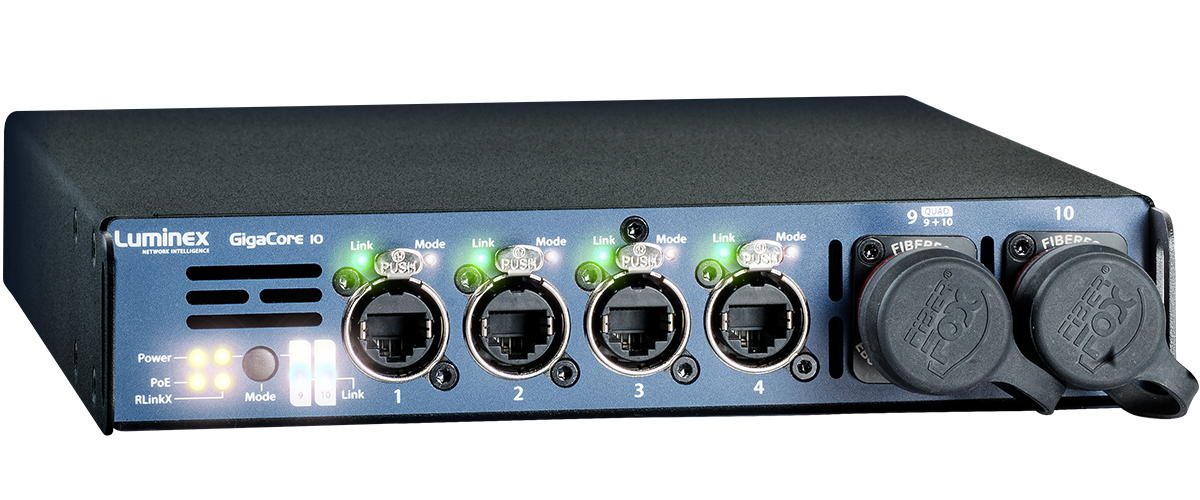

GigaCore 10 (Neutrik QUAD MMF + PoE)

LUM-LU0100058-POE-NQM
Regular price
$3,380.00
Sale price
$3,042.00

Most suitable applications: Touring and live events
PoE: Optional on all ports (up to 130W in total)
RLinkX (Link redundancy): Yes
Groups (VLAN segmentation): Yes
MultiLinkX (Link aggregation): Yes

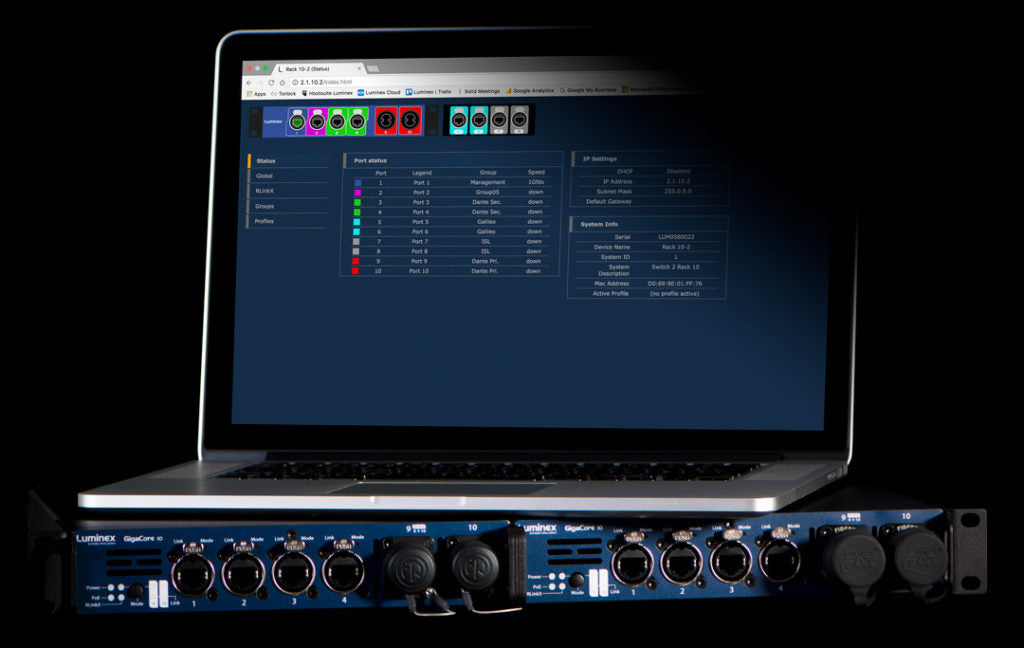

Profile manager: Yes
Memory: 4Mb
MAC address table: 8192 Entries
Address learning / Aging: Self learning, Auto aging
Switching throughput: 22Gbps
Jumbo frames: MTU up to 9600
IGMP support: Yes (V1/V2/V3)
IGMP snooping: Yes, enabled by default
Port sensing: Auto negotiation
Auto crossover: MDI / MDIX
Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
• Ethernet connectivity: 8 x Shielded Neutrik Ethercon connectors
• Fiber connectivity: 2 x slot for rugged fiber connectors
• Ethernet port speed: 1Gbps
• Serial: None
• Power connectivity: 1x Neutrik powerCON TRUE1
• Power input: 100-240VAC, 50-60Hz
• Power consumption: Maximum 20W Maximum 150W with PoE
• Fuse: None
• Backup power input: None
• Backup PoE power input: None
• PoE: Optional on all ports (up to 130W in total)
• Mounting: Truss, rack or wall
• Enclosure: Robust metal housing
• Dimensions (W x D x H): 220 x 330 x 44 mm (8,66" x 13" x 1,73")
• Weight: 2,8 kg
• Packaging: 530 x 330 x 80 mm (21" x 13" x 3,15")
• Environment:
• Operating temperature: 0 to +50 °C (non-PoE version), 0 to +40 °C (PoE version)
• Storage temperature: -10 to +70 °C
• Humidity (non condensing): 5 to 95% RH
• Noise level @1m:
• Max 18dBA (Ambient: 0 – 35°C)
• Max 24dBA (Ambient: 35 – 50°C)
• Max 18dBA (PoE <80W, Ambient: 0 – 35°C)
• Max 24dBA (PoE <80W, Ambient: 35 – 40°C)
• Max 18dBA (PoE >80W, Ambient: 0 – 30°C)
• Max 24dBA (PoE >80W, Ambient: 30 – 40°C)
• BTU:
• Certificates/Approvals: cSGSus Mark, CE, CB certificate, RoHS
• Standards: IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55022, EN 55024 (pending for approval)
