Description
FUSION Pearl Grey by in-lite. 12V low-voltage landscape lighting and accessories for professional outdoor installations.

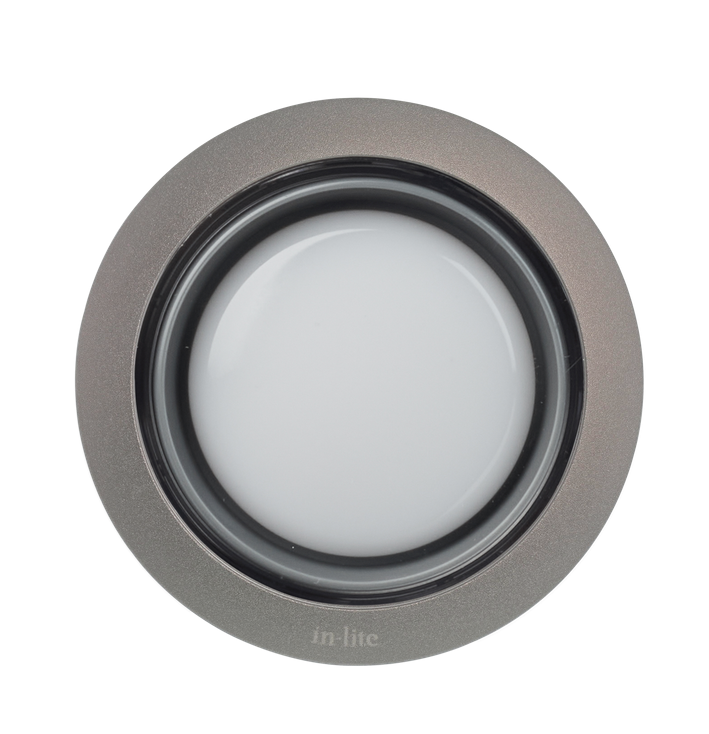

FUSION is a Ø 60 mm ground spotlight with a soft glow. It allows you to subtly highlight your patio or driveway, for example. Create a starry path with the smaller version: FUSION 22.
Available in three different colors: Black, Pearl Grey, or Stainless Steel.
Various accessories are available for the Ø 60 mm ground spot: SPIKE 60, BOX 1, and PLATE 1.
Available in three different colors: Black, Pearl Grey, or Stainless Steel.
Various accessories are available for the Ø 60 mm ground spot: SPIKE 60, BOX 1, and PLATE 1.
- Produces a soft light that does not glare
- Designed for illuminating a walkway or deck
- Drive-over
Installation advice:
A FUSION every 1 to 1½ meters
Product Details
FUSION is a Ø 60 mm ground spotlight with a soft glow. It allows you to subtly highlight your patio or driveway, for example. Create a starry path with the smaller version: FUSION 22.
Available in three different colors: Black, Pearl Grey, or Stainless Steel.
Various accessories are available for the Ø 60 mm ground spot: SPIKE 60, BOX 1, and PLATE 1.
Available in three different colors: Black, Pearl Grey, or Stainless Steel.
Various accessories are available for the Ø 60 mm ground spot: SPIKE 60, BOX 1, and PLATE 1.
Specs
Art. nr.
99380010
Mounting depth (inch)
2.2
Recessed depth (mm)
55
Diameter (inch)
2.7
Diameter (mm)
68
Color
PearlGrey
Energy label
G
Height (inch)
1.7
Height (mm)
42
Efficiency (Lumen/Watt)
18
Net luminous flux (Lumen)
16
Power [W]
0.9
Voltage
12 volt
VA value
1
Color temperature
2650
Material finishing/coating
Anodized
Kilowatt hour
1
Luminous intensity [Cd]
6.3
Power factor
0.9
Installation instructions
Installation advice
This ground light is installed in a 60,8 mm diameter hole in wood (wood drill) or stone (cooled diamond-tipped drill). A dealer or gardener can do this for you.
Note: to avoid problems with the electronics, only install the fixture in a hole that has been drilled straight and in the correct size.
Note: to avoid problems with the electronics, only install the fixture in a hole that has been drilled straight and in the correct size.
