Outdoor ground spotlight - Ø 22 mm
The FUSION 22 fixture is small, but refined. This subtle 22 mm diameter fixture is virtually invisible during the day.The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.Tip: Think of an extension cable
With a black Dr.Decks ring
With a black Dr.Decks ring
- Produces a soft light that does not glare
- Designed for illuminating a walkway or deck
- Drive-over
Installation advice:
A FUSION 22 every 1½ to 2 meters

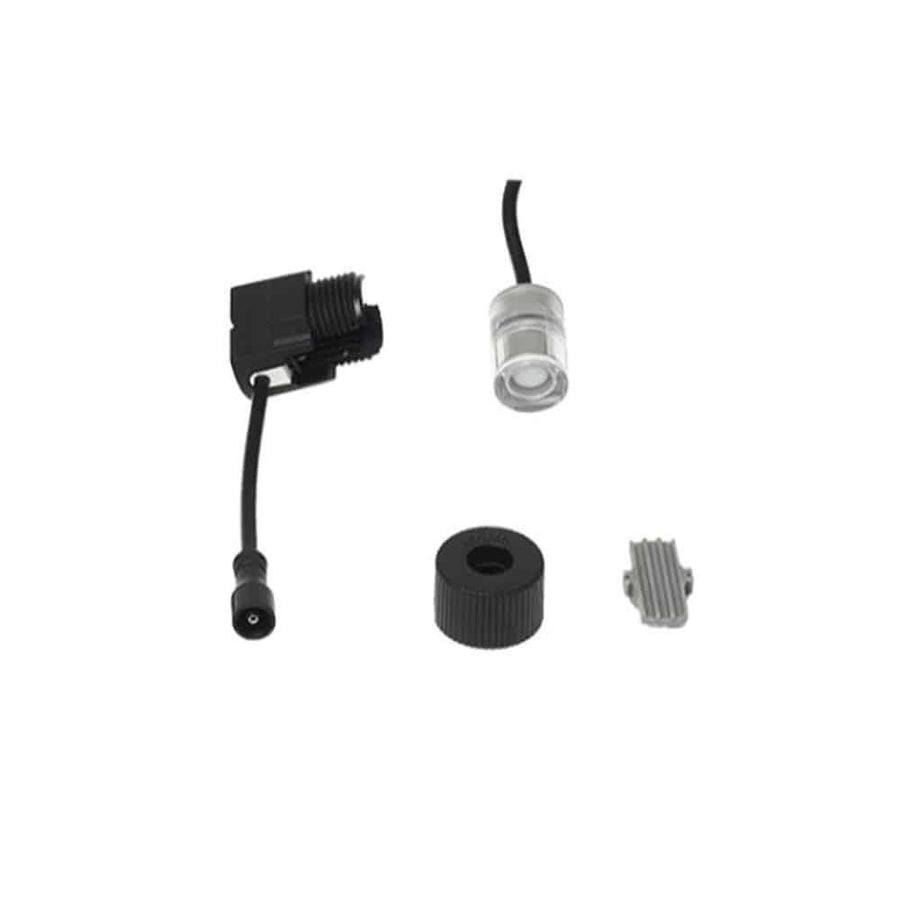

IN THE PACKAGE
INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
Product Details
The FUSION 22 fixture is small, but refined. This subtle 22 mm diameter fixture is virtually invisible during the day. It produces a soft non-blinding light in the evening. This makes the FUSION 22 suitable for in, for example, paths, steps and decks.
Specs
Art. nr.
10104190
Application
Driveway, Path, Stair, Terrace
Mounting depth (inch)
1.9685
Recessed depth (mm)
50
CRI
93
Diameter (inch)
1.1024
Diameter (mm)
28
Color
Black
EAN code
8717051004872
Energy label
G
Height (inch)
1.2598
Height (mm)
32
IP class
67
Light direction
Up
Light type
Diffuse
Efficiency (Lumen/Watt)
5
Net luminous flux (Lumen)
1
Order unit
6
Power [W]
0.2
Processing
Concrete, Grass, Gravel, NaturalStone, Wood
Article group
Integrated
Voltage
12V
VA value
0.2
Color temperature
2750
Kilowatt hour
1
Luminous intensity [Cd]
0.6
Power factor
1
Installation instructions
Installation advice
This ground light is installed in a 22.4 mm diameter hole in stone (cooled diamond-tipped drill). When installing in wood, we recommend using the FUSION 22 stainless steel. A dealer or gardener can do this for you. Note: to avoid problems with the electronics, only install the fixture in a hole that has been drilled straight and in the correct size.
