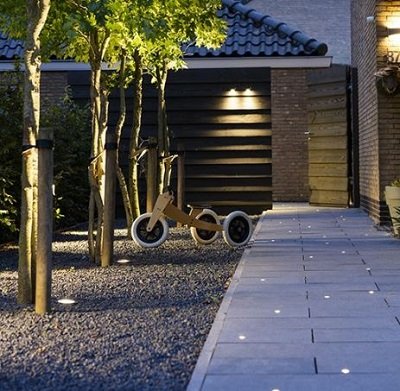

The FUSION 22 fixture is small, but refined. This subtle 22 mm diameter fixture is virtually invisible during the day. It produces a soft non-blinding light in the evening. This makes the FUSION 22 suitable for in, for example, paths, steps and decks
The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.Tip: Think of an extension cable
Produces a soft light that does not glare
Designed for illuminating a walkway or deck
Drive-over
Installation advice:
A FUSION 22 every 1½ to 2 meters

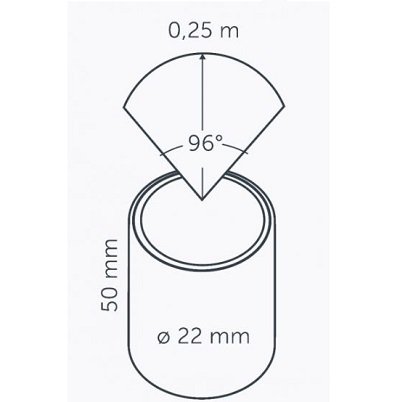

This ground light is installed in a 22.4 mm diameter hole in stone (cooled diamond-tipped drill). When installing in wood, we recommend using the FUSION 22 stainless steel. A dealer or gardener can do this for you. Note: to avoid problems with the electronics, only install the fixture in a hole that has been drilled straight and in the correct size.
Art. nr: 10104100
Application: Driveway, Path, Patio, Stairs
Mounting depth (inch): 1.9685
Recessed depth (mm): 50
CRI: 93
Diameter (inch): 0.8661
Diameter (mm): 22
EAN code
8717051003448
Energy label: G
Height (inch): 1.2598
Height (mm): 32
IP class:67
Light direction: Upward adjustment
Light type: Diffuse
Efficiency (Lumen/Watt): 5
Net luminous flux (Lumen): 1
Order unit: 6
Power [W]: 0.2
Processing: Concrete, Grass, Gravel, NaturalStone, Wood
Article group: Integrated
Voltage: 12V
VA value: 0.2
Color temperature: 2750
Luminous intensity [Cd]: 0.6
Power factor: 1
