Description
72W, 24V, Titan RGBMint+Amber, 2900 lumens, 115° beam angle IP65, Battery-powered, CRMX/UHF/Bluetooth/WiFi protocols includes 2x TubeHolder, 1x TubeStand, 2x Eyebolt, 1x SocketPlug
This B&H Kit features the Astera Titan Tube RGB LED Tube Light and a set of mounting accessories to give the image maker an introduction to this unique light source. It includes a 3.4' Titan Tube, a floor-mounted stand to allow the tube to be positioned vertically, two eyebolts to hang the light with wire or cable, and two metal holders to secure the tube to a truss section. An AC adapter is not included with the kit and must be purchased separately for use.
Astera Titan Tube RGB LED Tube Light (3.4')
With a wide 120° beam spread, the Astera Titan Tube RGB LED Tube Light is ideal for creating a soft direct light on your subject for use as an accent light or design element on location or on set. Suitable for cine, theatrical, and event productions, the wireless tube is powered by an integrated battery that will give you 20 hours of runtime on a three-hour charge. The light outputs up to 785 lux at 3.3' (4000K) and features 16 LED emitters in a 3.4' long tube that you can mount onto a set or on a stand, hang from a grid, or even hold in your bare hand. The Titan Tube has an impressive CRI/TLCI rating of 96/96, indicating high accuracy in the rendition of color. It uses RGB, mint, and amber LEDs as well as hue, saturation, and intensity control to access millions of custom colors.
Color and control are at the heart of the Titan Tube's design. The tube has an expansive white light range of 1750 to 20,000K to seamlessly blend into any ambient light situation or just exercise creative expression. You can make these adjustments locally on the fixture, or remotely via several ways such as from a console with Titan Tube wired to it. Wireless DMX, CRMX, and other types of units can adjust functions at distances up to 990'. There's also an AsteraApp that lets you control the light via Bluetooth and IR control via an optional remote. The Titan Tube ships without a power supply. Choose between an optional AC adapter and a PowerBox.
Control
You can use the Astera infrared remote control (not included) by simply pointing it at individual lights to set the desired effect.
The downloadable AsteraApp is an efficient way to quickly create a customized light show using your smart device. It can group several lights, address individual lights or groups of lights, and send complex effects with a user-defined color palette to all lights in the range.
The light can also be controlled by CRMX (wireless DMX), as the built-in receiver is compatible with all LumenRadio CRMX transmitters.
Wireless Modules
865 to 870 MHz
902 to 928 MHz
2.4 GHz
TruColor Calibration
Achieve 100% color consistency through any batch. It can hit exact color temperatures and reproduce standard filter gels.
Tunable White
Ranges from 1750 to 20,000K.
Green/Magenta Correction
Adjust green/magenta during content creation to reduce post-production work.
20-Hour Runtime
Set the length of your event and be sure that your lights won't run out while still getting the maximum brightness.
Effects
Quickly build programs out of colors and effects, trigger them, or make them match a beat.
Talkback +
Detect all available lights, set them up, check their status, and configure DMX addresses and DMX profiles.
Anti-Theft
The lights give visual and audible alarms and send notifications to the AsteraApp if they are being moved during an event.
Flicker-Free Filming
Scrambled PWM (Pulse Width Modulation) technology is used to prevent flickering when filming the lights.
Scheduled Standby Mode
You can switch the Astera Titan Tube into standby mode to save power, and schedule it to wake up when the event starts.
DJ Application
Auto BPM analyzes the beat and matches programs to it, and flash buttons can trigger special effects.
Dynamic Power Boost
The dynamic power boost feature enables the light to display the maximum brightness at all times and intensify non-white colors.
Emergency Lights
It switches to white light when AC power is cut to keep your event safe.
Other Features
The AsteraApp is packed with many additional items and new features are frequently added via software updates.
Astera Titan Tube Single Unit Accessory Kit

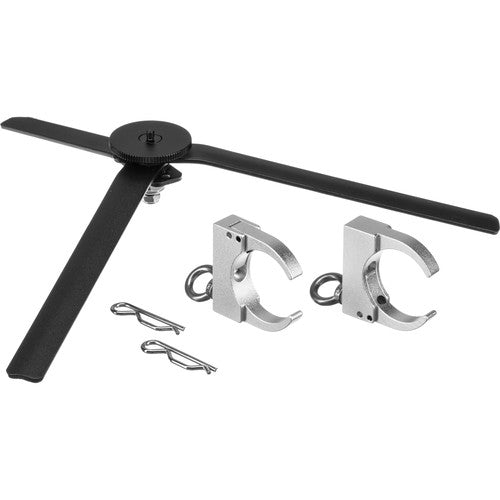

The Titan Tube Single Unit Accessory Kit from Astera offers mounting options for the tube The kit includes a folding floor stand to hold the tube vertically, two Eyebolts for suspending the tube with wire or cable, and two metal holders for securing the tube to a truss section.
Key Specs
Item Type
1x LED Light Tube/Wand
Included Storage Case
No
Photometrics
3200K:
65 fc / 708 Lux at 3.3' / 1 m
4000K:
729 fc / 7850 Lux at 3.3' / 1 m
Show More
Color Temperature
1750 to 20,000K
Color Modes
RGB
Color Accuracy Standard
CRI 96
TLCI 96
Dimming
App-Controlled / Built-In Dimmer / DMX (Continuous)
Beam Angle
120°
Front Accessory Mount
No
Wireless Remote Control Type
Wi-Fi *Adapter Required (Not Included)
Wireless CRMX
Wireless DMX
Power Source
Battery (Built-In)
AC to DC Adapter (Not Included)
Battery
1x Rechargeable (Built-In)
• Up to 20-Hour Runtime
• 3-Hour Charge Time
Input Power
100 to 240 VAC, 50 / 60 Hz
24 VDC at 2 A
Power Consumption
48 W
Fixture Mounting
2x M5 Female Thread
1x 1/4"-20 Female Thread (Via Mounting Clip)
Light Fixture
Item Type
1x LED Light Tube/Wand
Included Storage Case
No
Lumens
2535 (at 3200K)
2900 (at 4000K)
Photometrics
3200K:
65 fc / 708 Lux at 3.3' / 1 m
4000K:
729 fc / 7850 Lux at 3.3' / 1 m
Color Temperature
1750 to 20,000K
Color Modes
RGB
Color Accuracy Standard
CRI 96
TLCI 96
Dimming
App-Controlled / Built-In Dimmer / DMX (Continuous)
Cooling System
Passive
Expected Lamp Life
50,000 Hours
Beam Angle
120°
Built-In Flash
No
Umbrella Mount
No
Front Accessory Mount
No
Connectivity
Wireless Remote Control Type
Wi-Fi *Adapter Required (Not Included)
Wireless CRMX
Wireless DMX
Mobile App Compatible
Yes, Adapter Required (Not Included): Android & iOS
Wireless Range
984.3' / 300 m
Power & I/O
Power Source
Battery (Built-In)
AC to DC Adapter (Not Included)
Inputs/Outputs
1x Barrel / Coax (2.1 x 5.5 mm) Power Input (24 VDC)
Battery
1x Rechargeable (Built-In)
• Up to 20-Hour Runtime
• 3-Hour Charge Time
Battery Charging
1x AC to DC Adapter (Not Included)
Input Power
100 to 240 VAC, 50 / 60 Hz
24 VDC at 2 A
Inline Switch
No
Power Pass-Thru
No
Power Consumption
48 W
Mounting
Fixture Mounting
2x M5 Female Thread
1x 1/4"-20 Female Thread (Via Mounting Clip)
Environmental
Environmental Protection
Dust/Water-Resistant (IP65)
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
0 to 100%
General
Display
Yes
Materials
Metal, Polycarbonate (Housing)
Dimensions
40.7 x 1.6" / 103.4 x 4.1 cm (Fixture)
Weight
3 lb / 1.36 kg
Packaging Info
Package Weight
4.3 lb
Box Dimensions (LxWxH)
43 x 2.5 x 2.5"
Astera Titan Tube Single Unit Accessory Kit Specs
Packaging Info
Package Weight
1.195 lb
Box Dimensions (LxWxH)
11.1 x 5.3 x 2.2"
