Description

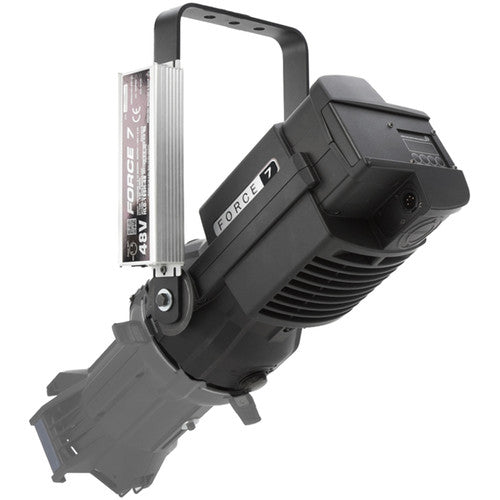

BB&S Lighting Force 7 Overview
The 3000K Force 7 LED Ellipsoidal Light Engine from BB&S Lighting is a LED light source intended for use with optics made by other manufacturers. Using the Force 7, you can literally turn your existing traditional tungsten halogen into a LED ellipsoidal in about one minute. The light engine features a high CRI of 97+ for accurate color rendering, hybrid cooling with a heat sink / silent fan combination and 0-100% 8 or 16 bit dimming via DMX. The system runs on 100-240 VAC mains current. In and out powerCON connectors allow daisy chaining of fixtures.
No multiple shadows
Convert existing optics to LED in about one minute
Low power consumption (185W max)
Silent operation
Completely smooth full range, flicker-free dimming in either 8- or 16-bit
Superior shadow rendering
Crisp gobo projection
Clean straight cut with shutters
Microprocessor-controlled current management for power-saving long LED life
High-speed strobe
Extended color gel life
For broadcast studios, photo shoots, film and video production, theaters, concerts, museums, houses of worship, science centers, exhibitions, trades, fashion shows, events, venues, on location, and display lighting
Control locally or via DMX
Light Fixture
Photometrics
at 3000K:
4592 fc / 49,436 Lux at 3.3' / 1 m
507 fc / 5460 Lux at 9.8' / 3 m
182 fc / 1965 Lux at 16.4' / 5 m
*Standardized Measurement
Color Temperature
3000K
Color Accuracy Standard
CRI 97 at 3000K
Cooling System
Fan/Passive Combo
Dimming
Yes
0 to 100%
Connectors
Power Input Connection
powerCON
Power Output Connection
powerCON
Mounting
Fixture Mount
No
Remote Operation
Remote Control Type
DMX
Max DMX Control Channels
4
Power
AC Input Power
VAC50 / 60 Hz
Power Source
AC Adapter
Power Consumption
185 W (Maximum)
Power Supply
Power Supply Power Connector
powerCON Input
Physical
Operating Temperature
32 to 104°F / 0 to 40°C
