Description
The FlexLEDslim 180 White 24V is our smallest, high-density LED strip, measuring just 5mm wide, making it ideal for tight spaces where high-output lighting is required. Featuring 180 LEDs per meter, this ultra-slim strip delivers superior brightness and colour accuracy with a CRI of 95+, ensuring natural, full-spectrum white light with no green spike or colour deficiencies.
Key Features:
Ultra-Narrow 5mm Width – Perfect for compact installations requiring precise lighting applications.
High LED Density (180 LEDs/m) – Delivers uniform, high-output illumination.
Industry-Standard White Variants – Available in 2700K, 4100K, and 5600K.

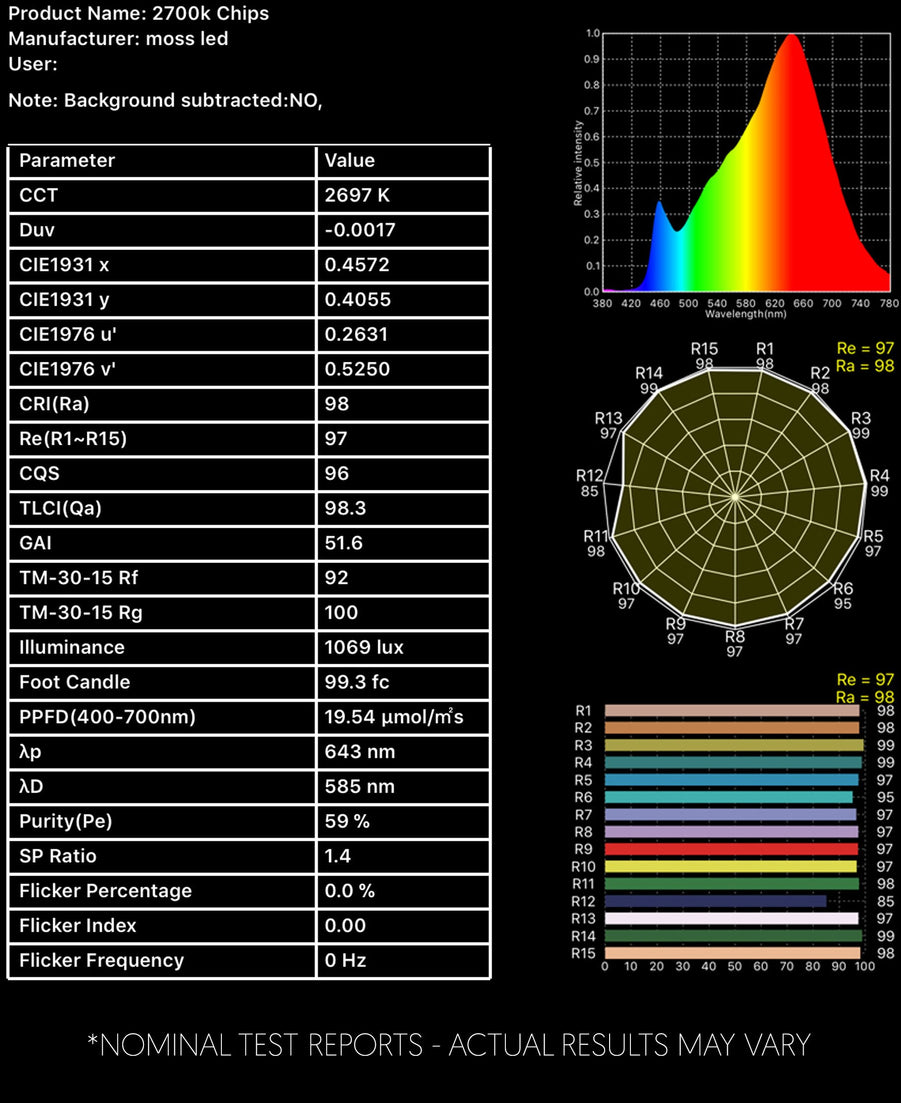

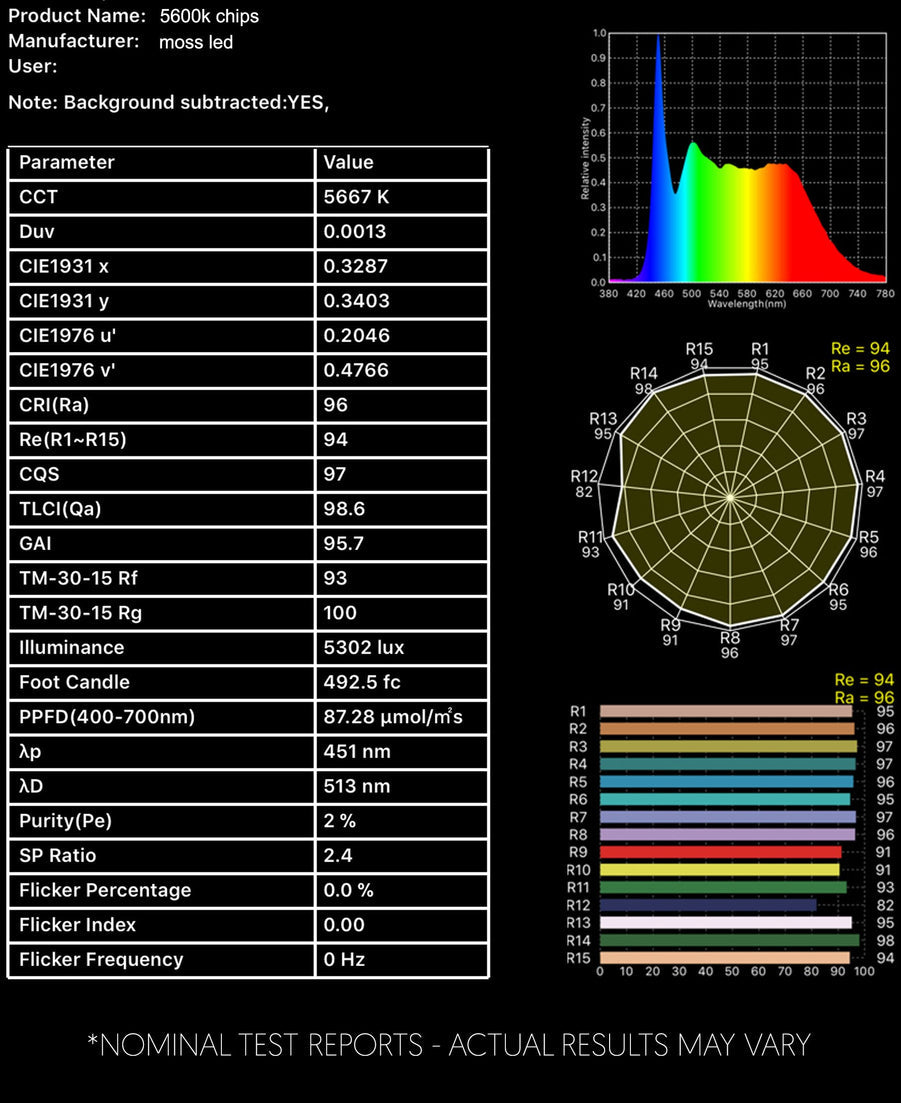

High CRI (95+) – Ensures excellent colour rendering for on-camera use.
Flexible & Customizable – Cuttable and adaptable for a variety of installations.
Easy Installation – 3M double-sided adhesive backing for quick and secure mounting.
Installation & Handling Considerations:
Indoor and weatherproof strips feature 3M adhesive backing for easy installation.
Waterproof versions require mounting via silicone (not included).
Soldering Guidelines:
Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.
Additional Details:
Maximum run length: 10 meters (32.81’) – Power required at both ends to avoid line loss.
Controller, power supply, and extension cables sold separately.
Quantity discounts and custom colour temperatures available.
Pricing is for 5 meters (16.4’) - custom lengths available
The FlexLEDslim 180 White 24V is the ultimate solution for high-quality, ultra-narrow lighting, offering exceptional brightness, precision, and colour accuracy.
Product Type : Warm White Neutral White Cool White
Product Code : I24VWW279002835 I24VNW419002835 I24VCW569002835
CRI : 95+ 95+ 95+
Kelvin : 2700k +/-100k 4100k +/-100k 5600k +/-100k
PCB Color : White White White
Current, Rating : 0.6 A / meter 0.6 A / meter 0.6 A / meter
Voltage : 24 VDC 24 VDC 24 VDC
Wattage : 14.4 W / meter 14.4 W / meter 14.4 W / meter
CC / CV : Constant Voltage Constant Voltage Constant Voltage
IP Rating : IP43 IP43 IP43
Lumens @ Full : 1540 lm / meter 1540 lm / meter 1540 lm / meter
Lumen / Watt : 107.1 107.1 107.1
Lifetime* : 30,000 hours 30,000 hours 30,000 hours

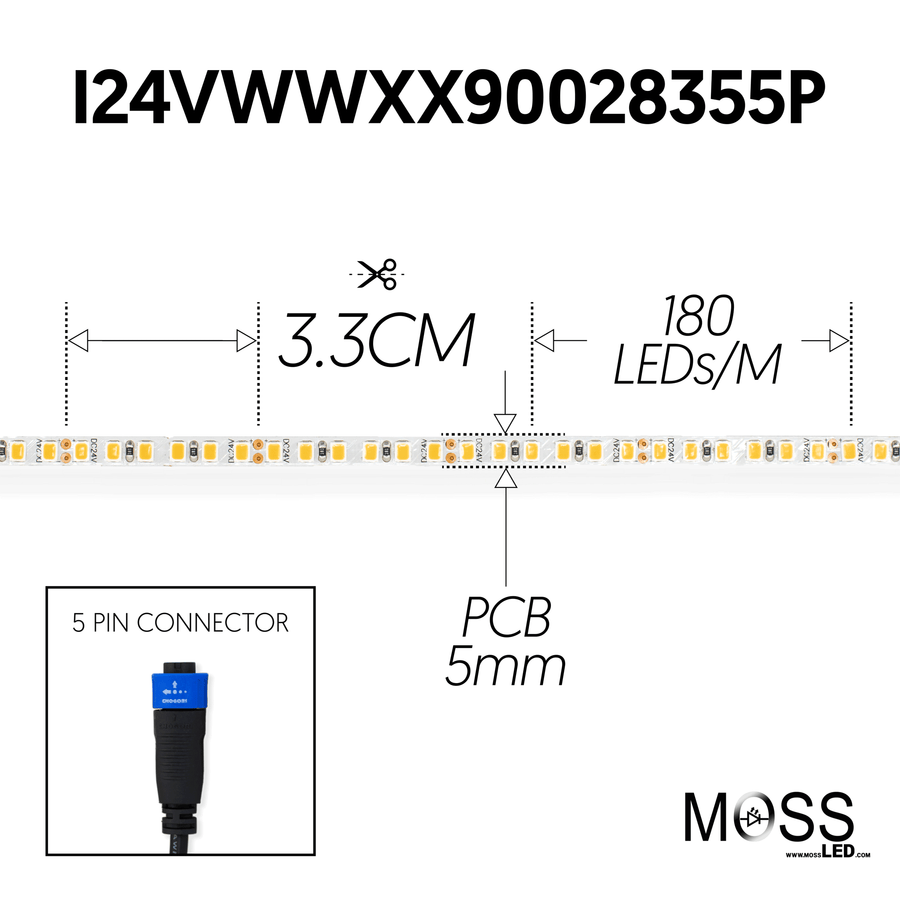

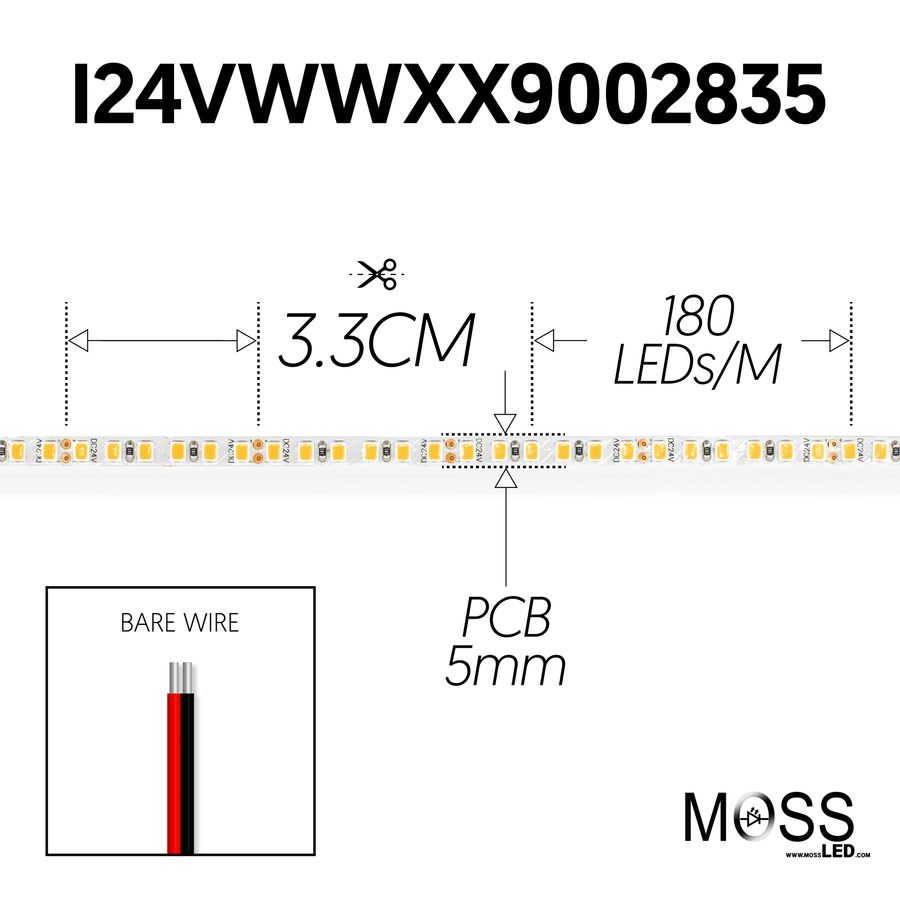

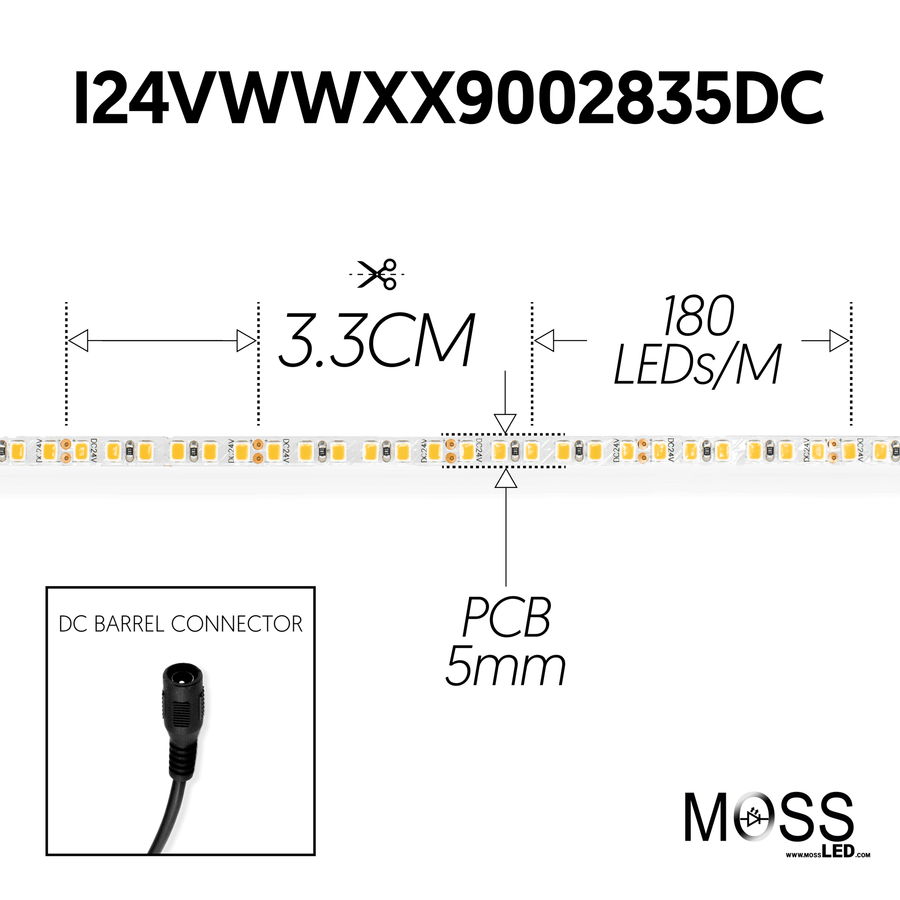

Cutting Length : 3.33CM 3.33CM 3.33CM
LED Quantity : 180 LED / meter 180 LED / meter 180 LED / meter
Number of Contacts : 2 2 2
LED Type : 2835 2835 2835
Copper Quantity : 3 Oz. 3 Oz. 3 Oz.
Temperature, Operating, Maximum : 70 C 70 C 70 C
Temperature, Operating, Minimum : -40 C -40 C -40 C
Agency Ratings : UL - E489028, CE, RoHS UL - E489028, CE, RoHS UL - E489028, CE, RoHS
PCB Width : 5MM 5MM 5MM
Maximum Recommended Length : 5 meters 5 meters 5 meters
Viewing Angle : 120 degree 120 degree 120 degree
Adhesion : 3M 200MP 3M 200MP 3M 200MP
