Description

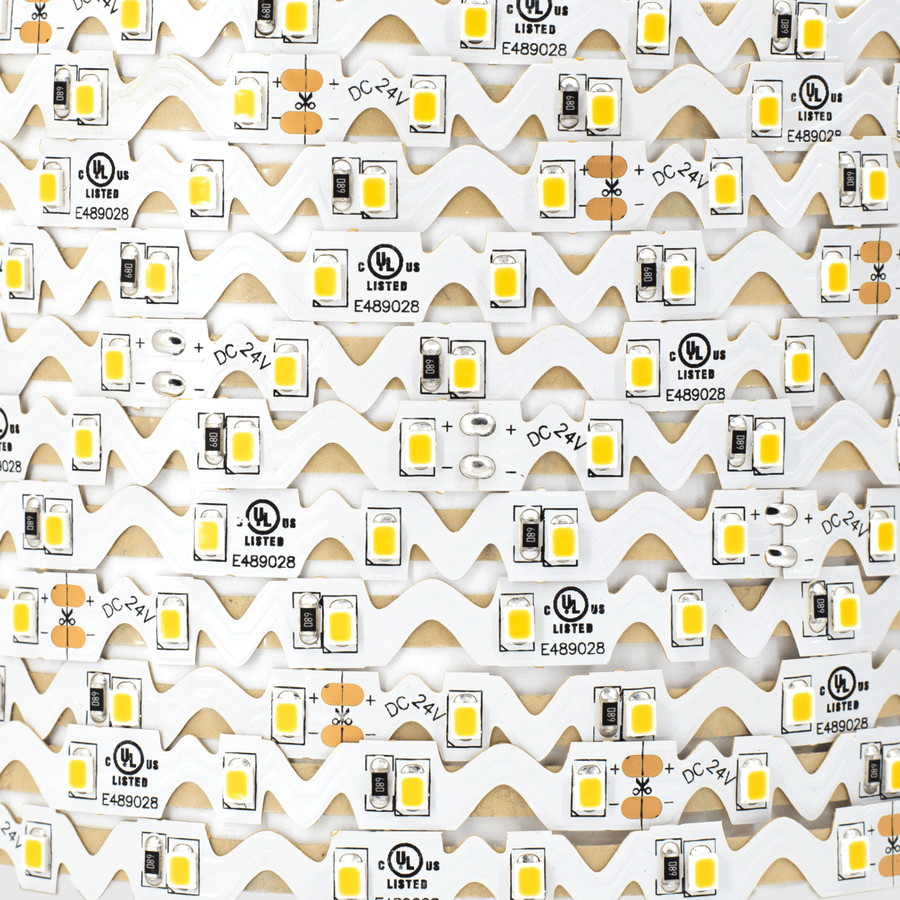

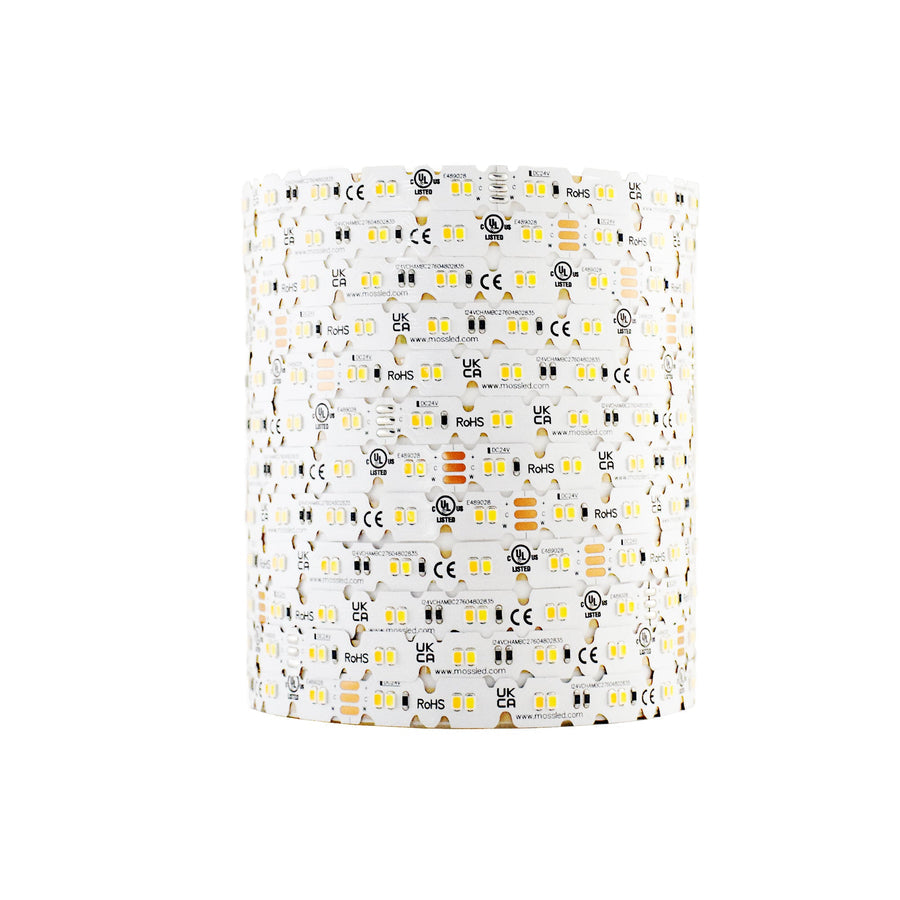

The FlexLED Chameleon 24V is fully bendable in any direction, engineered for applications where standard linear LED strips are not feasible. Featuring V-shaped cuts in the circuit board, this strip bends in any direction, making it ideal for curved surfaces, signage, and complex surfaces or challenging locations. While lower in LED density, power consumption and brightness than standard FlexLED strips, the Chameleon series offers versatile lighting solutions for non-linear locations.
Key Features:
Fully Bendable Design – V-cut circuit board allows multi-directional flexibility.
Multiple Variants Available – Choose from 2700K, 3000K, 4100K, 5600K, Dynamic White, RGB, RGBA, and RGB+W (2700K/4100K/5600K).
Energy Efficient – Lower wattage per meter while maintaining vibrant illumination.
Easy Peel-and-Stick Installation – 3M double-sided adhesive backing ensures secure mounting.
Custom Colour Temperatures Available – Tailor the strip to your specific needs.
Additional Details:
RGB and RGBA variants are non-stock items (3–4 week lead time).
Controller, power supply, and extension cables sold separately.
Pricing is for 5 meters (16.4’).
The FlexLED Chameleon 24V delivers exceptional adaptability, allowing for creative lighting applications in even the most challenging spaces.
Product Type Chameleon Dynamic White Chameleon White Chameleon RGB Chameleon RGBA Chameleon RGB+W
Product Code I24VCHAMBC27604802835 I24VCHAMXX3002835 I24VCHAMRGB2105050 I24VCHAMRGBA2405050 I24VCHAMRGBWXX2405060
CRI 95+ 95+ N/A N/A 95+
Kelvin 2700k ~ 6000k 2700k / 3000k / 4100k / 5600k N/A N/A Colour Changing + 2700k / 5600k
PCB Color White White White White White
Current, Rating 0.625 A / meter 0.45 A / meter 0.6 A / meter 0.6 A / meter 0.64 A / meter
Voltage 24 VDC 24 VDC 24 VDC 24 VDC 24 VDC
Wattage / meter 2700k = 7.5
6000k = 7.5
2700k & 6000k = 15 10.8 10.08 15.36 15.4
CC / CV Constant Voltage Constant Voltage Constant Voltage Constant Voltage Constant Voltage
IP Rating IP43 IP43 IP43 IP4
Lumens @ Full 2700k = 727
6000k = 879
2700k & 6000k = 1580 2700k = 926.4
5600k = 1097 XX lm / meter XX lm / meter 5600k = 345.4
Lumen / Watt 2700k = 98
6000k = 117
2700k & 6000k = 104 83.32 @ 2700k - 98.52 @ 5600k N/A N/A 87.6
Lifetime* 30,000 hours 30,000 hours 30,000 hours 30,000 hours

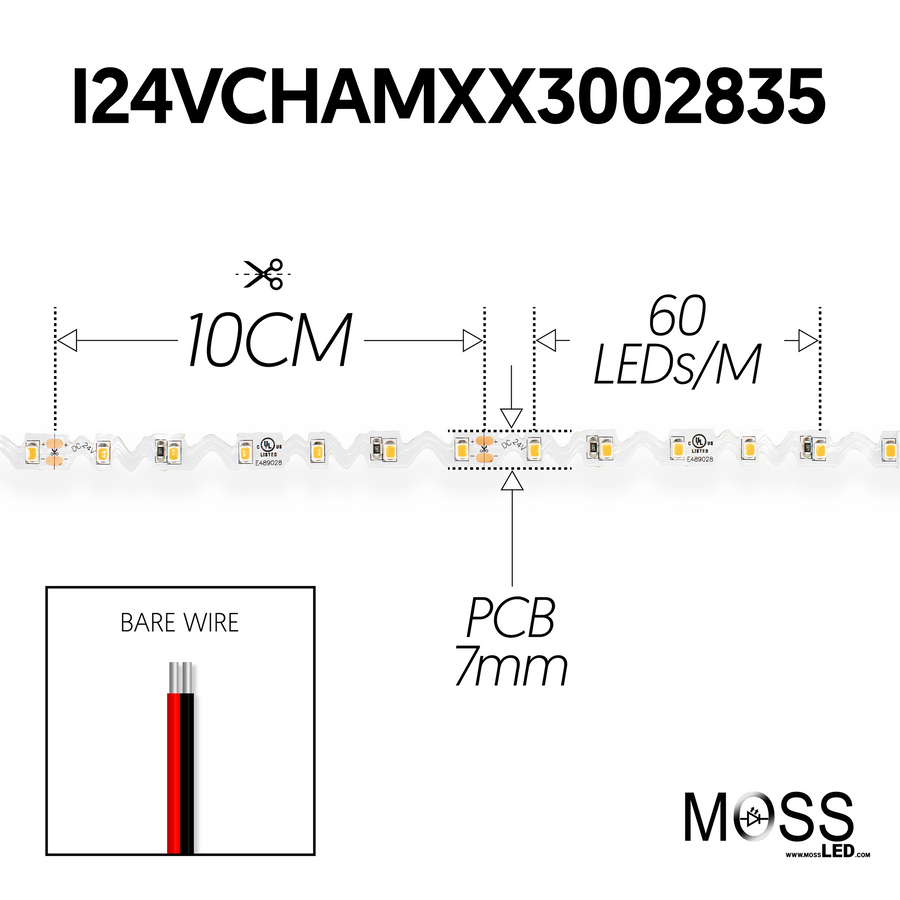

Cutting Length 10 CM 10 CM 10 CM 12.5 CM
LED Quantity 60 LED / meter 42 LED / meter 48 LED / meter 48 LED / meter
Number of Contacts 2 4 5 5
LED Type 2835 5050 5050 5050
Copper Quantity 1 Oz. 1 Oz. 1 Oz. 1 Oz.
Temperature, Operating, Maximum 70 C 70 C 70 C 70 C
Temperature, Operating, Minimum -40 C -40 C -40 C -40 C
Agency Ratings UL - E489028, CE, RoHS UL - E489028, CE, RoHS UL - E489028, CE, RoHS UL - E489028, CE, RoHS
PCB Width 6.5MM 12MM 12MM 12MM
Maximum Recommended Length 2 meters 5 meters 5 meters 5 meters
Viewing Angle 120 120 120 120
Adhesion 200MP 3M 200MP 3M 200MP 3M 200MP 3M
