Description
FlexLED 96 RGB + White 24V
SKU I24VRGBW304805050
by MossLED
$202.71
IP Rating
IP43 (Indoor)
Colour
3000k 4100k 5600k
Connector Type
Bare Wire 5-PIN Male Connector
Availability:
Out of stock
1
Quantity
Sold out
Share this:
Share on Facebook
Share on X
Share on LinkedIn
Pin on Pinterest
This Product Is No Longer a Regular Stocked Item. It has been replaced by our RGB+W All-In-One Chip. The New RGB+W All-In-One features a shorting cutting length between the LEDs, as well as better colour mixing, and a higher efficiency LED chip.
Suitable for residential, television, industrial, and commercial applications
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof must be mounted using silicone (not provided)
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
Pricing is for 5 meters (16.4')
Product Type : RGB + Warm White RGB + Neutral White RGB + Cool White
Product Code : I24VRGBW304805050 I24VRGBW414805050 I24VRGBW564805050
CRI : 95 95 95
Kelvin : 3000k +/-100k 4100k +/-100k 5600k +/-100k
PCB Color : White White White
Current, Rating : 0.96 A / meter 0.96 A / meter 0.96 A / meter
Voltage : 24 VDC 24 VDC 24 VDC
Wattage : 23 W / meter 23 W / meter 23 W / meter
CC / CV : Constant Voltage Constant Voltage Constant Voltage
IP Rating : IP43 IP43 IP43
Lumens @ Full : 1500 lm / meter 1500 lm / meter 1500 lm / meter
Lumen / Watt : 65 65 65
Lifetime* : 50,000 hours 50,000 hours 50,000 hours

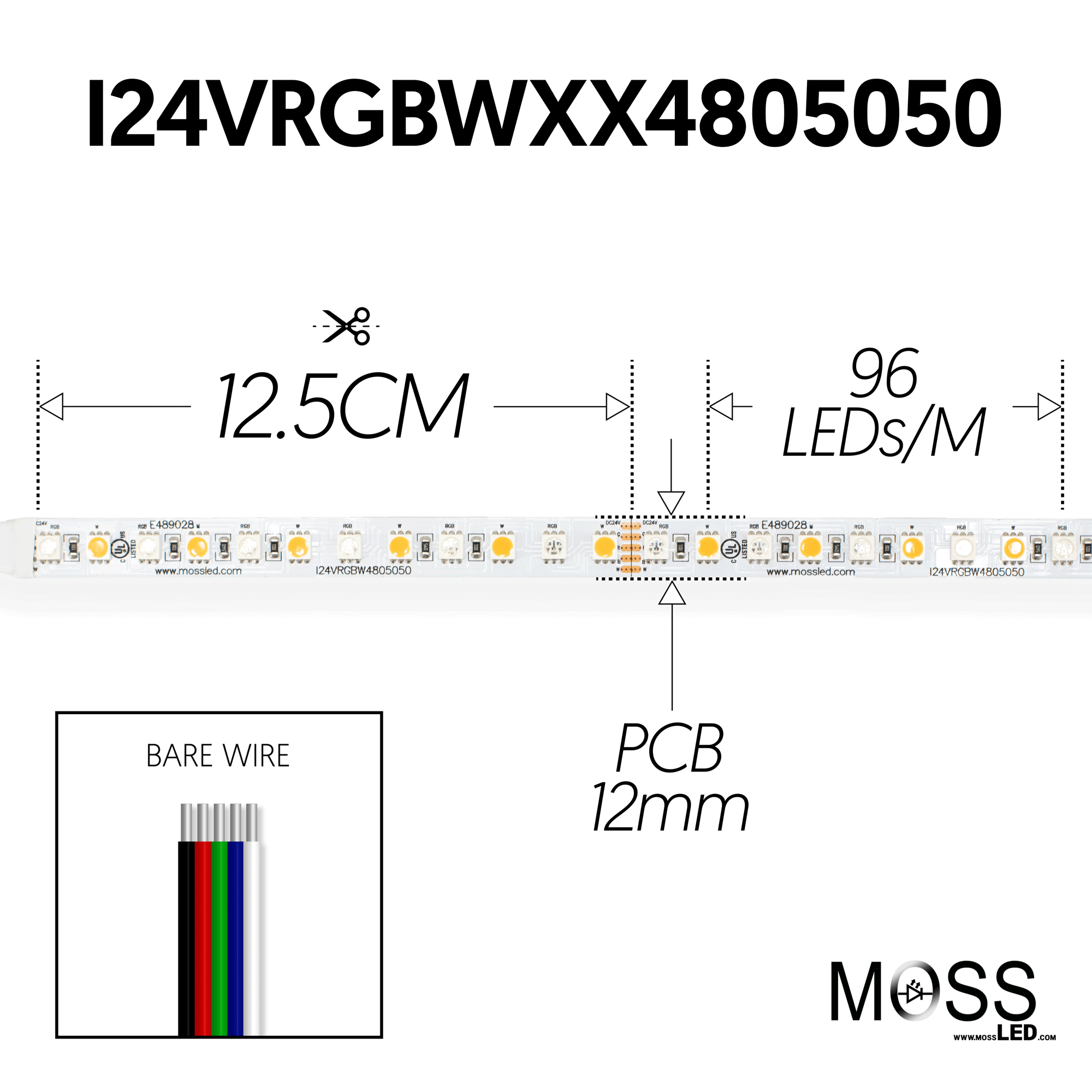

Cutting Length : 12.5CM 12.5CM 12.5CM
LED Quantity : 96 LED / meter 96 LED / meter 96 LED / meter
Number of Contacts : 5 5 5
LED Type : 5050 5050 5050
Copper Quantity : 3 Oz. 3 Oz. 3 Oz.
Temperature, Operating, Maximum : 70 C 70 C 70 C
Temperature, Operating, Minimum : -40 C -40 C -40 C
Agency Ratings : UL - E489028, CE, RoHS UL - E489028, CE, RoHS UL - E489028, CE, RoHS
PCB Width : 12MM 12MM 12MM
Maximum Recommended Length : 7 meters 7 meters 7 meters
Viewing Angle : 120 120 120
Adhesion : TESA 4965 TESA 4965 TESA 4965
Wavelength A Red : 620 ~ 625nm 620 ~ 625nm 620 ~ 625nm
Wavelength B Green : 520 ~ 525nm 520 ~ 525nm 520 ~ 525nm
Wavelength C Blue : 465 ~ 470nm 465 ~ 470nm 465 ~ 470nm
