Description
The FlexLED 252 RGBA+WW+CW is a versatile, high-output LED strip that combines RGBA colour mixing with full-spectrum dynamic white emitters, delivering unparalleled colour accuracy and brightness. Designed for film, television, architectural, and commercial applications, this 6-channel LED strip provides seamless control over both white light and rich, vibrant colours, allowing for customizable lighting effects and precision dimming.
Key Features:
RGBA + Dynamic White Control – Combines full-colour RGB+A with tunable white (WW+CW).
High-CRI White Emitters – Delivers clean, accurate white light with superior colour rendering.
Seamless Colour Mixing – Achieves smooth transitions between white and vibrant hues.
Designed for 6-Channel Control – Optimized for use with our 6-channel dimmers for maximum flexibility.
Heat Sink Required – Must be installed onto a non-combustible aluminum heat sink in running all 6 channels at full for longevity.
Customizable Cut Lengths – Allows for precise adjustments to fit any application.
Installation & Handling Considerations:
Indoor and weatherproof strips feature 3M adhesive backing for easy installation.
Waterproof versions require mounting via silicone (not included).
Soldering Guidelines:
Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.
Additional Details:
Maximum run length: 10 meters (32.81’) – Power required at both ends to avoid line loss.
Controller, power supply, and extension cables sold separately.
Quantity discounts and custom colour temperatures available.
Pricing is for 5 meters (16.4’) - custom lengths available
The FlexLED 252 RGBA+WW+CW is the ultimate solution for professional-grade lighting, offering unmatched control, high-CRI illumination, and vibrant, customizable colour output.
Product Type : RGBA + WW + CW 18MM
Product Code : I24VRGBADW276012605050
CRI : 95+
Kelvin : 2700k +/-100k AND 6000k +/- 100k AND RGBA
PCB Color : White
Current, Rating : 2.1 A / meter
Voltage : 24 VDC
Wattage - All Six Channels : 50.4 W / meter
Wattage - 2700k : 11.3 W / meter
Wattage - 6000k : 11.3 W / meter
Wattage - 2700k & 6000k (4000k) : 22.8 W / meter
Wattage - RGBA : 26.1 W / meter
CC / CV : Constant Voltage
IP Rating : IP43
Lumens @ Full - All Six Channels : 3417 lm / meter
Lumens @ Full - 2700k : 1082 lm / meter
Lumens @ Full - 6000k : 1358 lm / meter
Lumens @ Full - 2700k & 6000k (4000k) : 2440 lm / meter
Lumens @ Full - RGBA : 1110 lm / meter
Lumen / Watt - All Six Channels : 69.4
Lumen / Watt - 2700k : 96
Lumen / Watt - 6000k : 121
Lumen / Watt - 2700k & 6000k (4000k) : 107
Lumen / Watt - RGBA : 43
Lifetime* : 50,000 hours

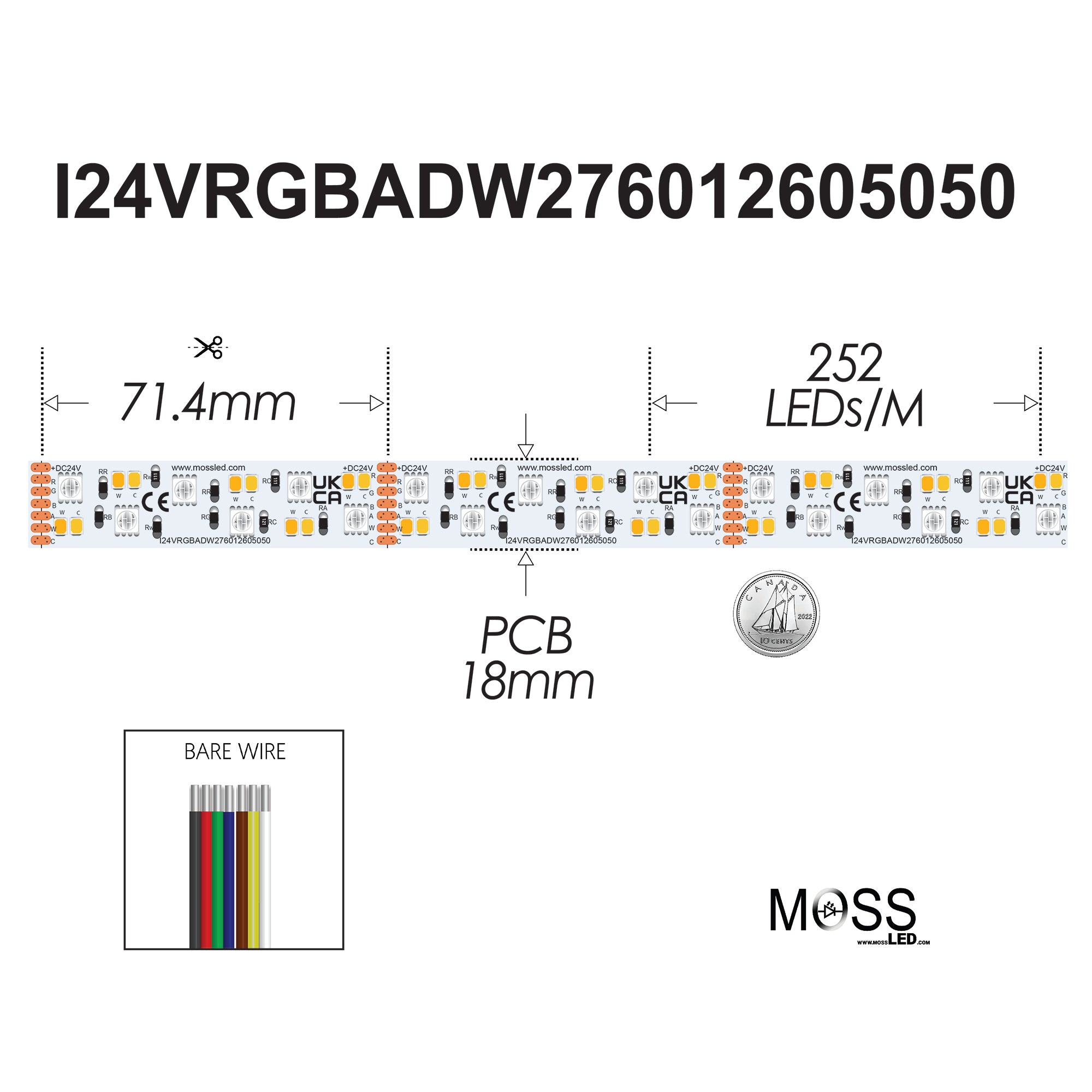

Cutting Length : 71.4 MM
LED Quantity : 252 LED / meter
Number of Contacts : 7
LED Type : 5050 + 2835
Copper Quantity : 3 Oz.
Temperature, Operating, Maximum : 50° C
Temperature, Operating, Minimum : -40° C
Agency Ratings : UL E489028, CE, RoHS, UKCA
PCB Width : 18MM
Maximum Recommended Length : 5 meters
Viewing Angle : 120
Adhesion : TESA 4965
