Description
FlexLED 210 RGB+WW+CW 24V
SKU I24VRGBWCW276010505050
by MossLED
$331.53
Colour
Bi-Colour (2700k - 6000k) Bi-Colour (2700k - 5600k) Bi-Colour (3000k - 5600k)
PCB Width
20MM 14MM
Connector Type

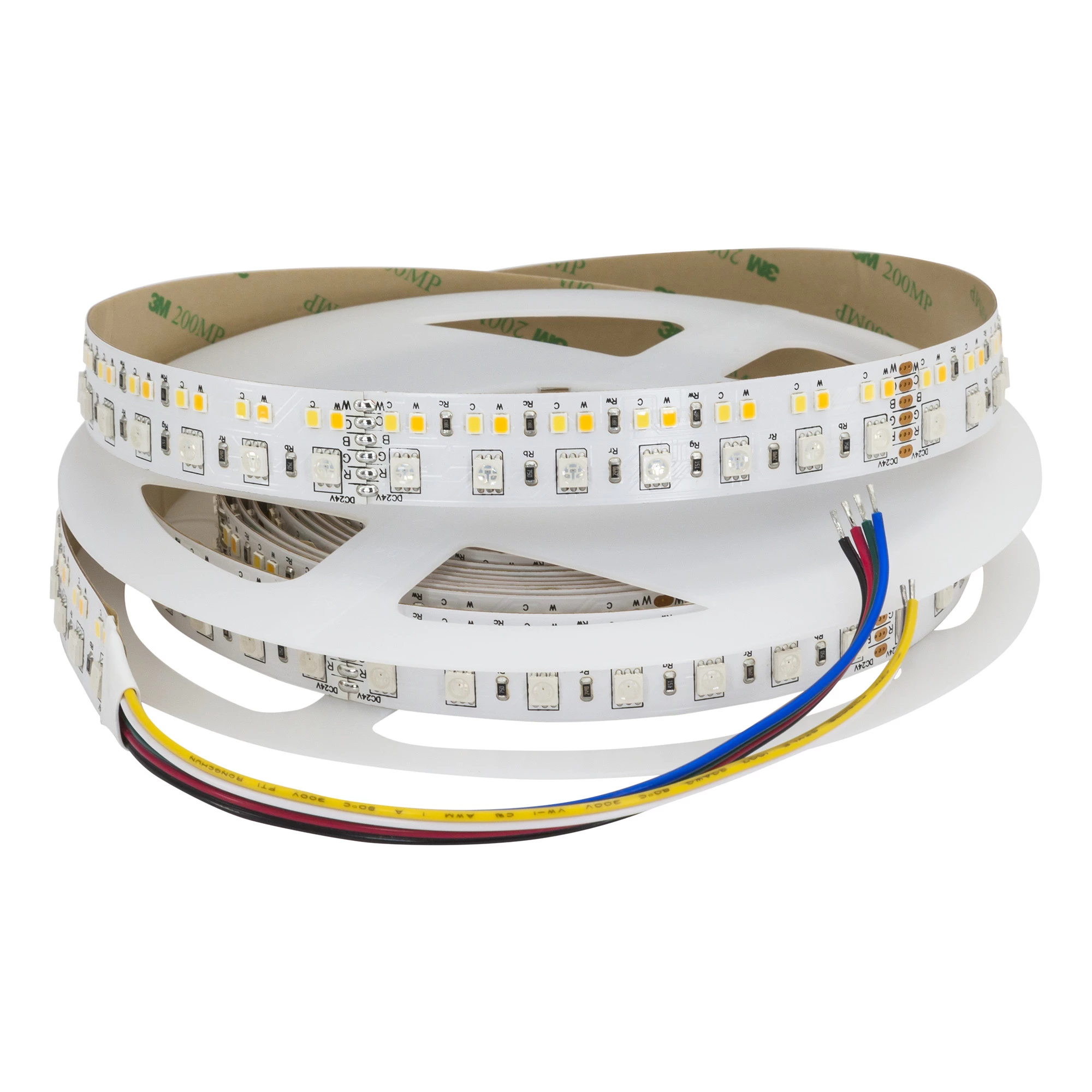

Bare Wire
Availability:
Only 5 left!
1
Quantity
Add to cart
Share this:
Share on Facebook
Share on X
Share on LinkedIn
Pin on Pinterest

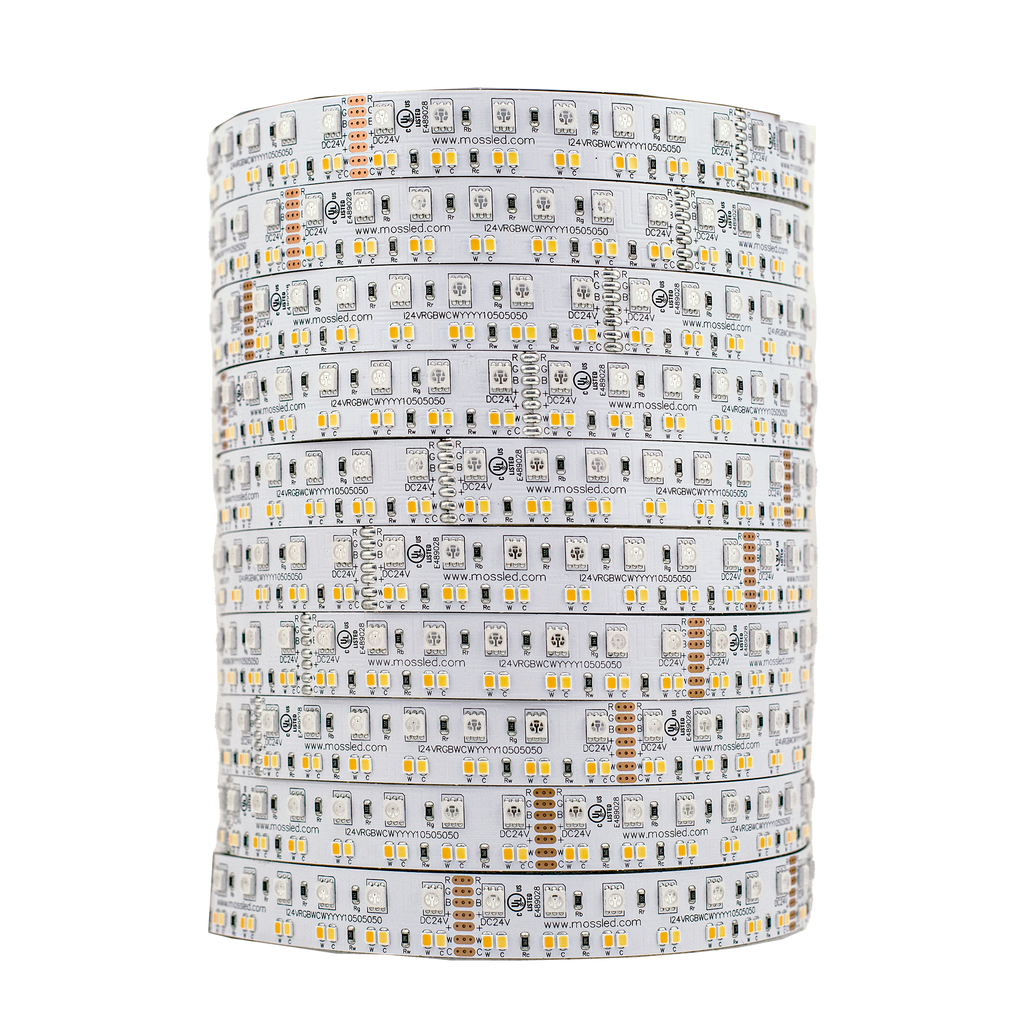

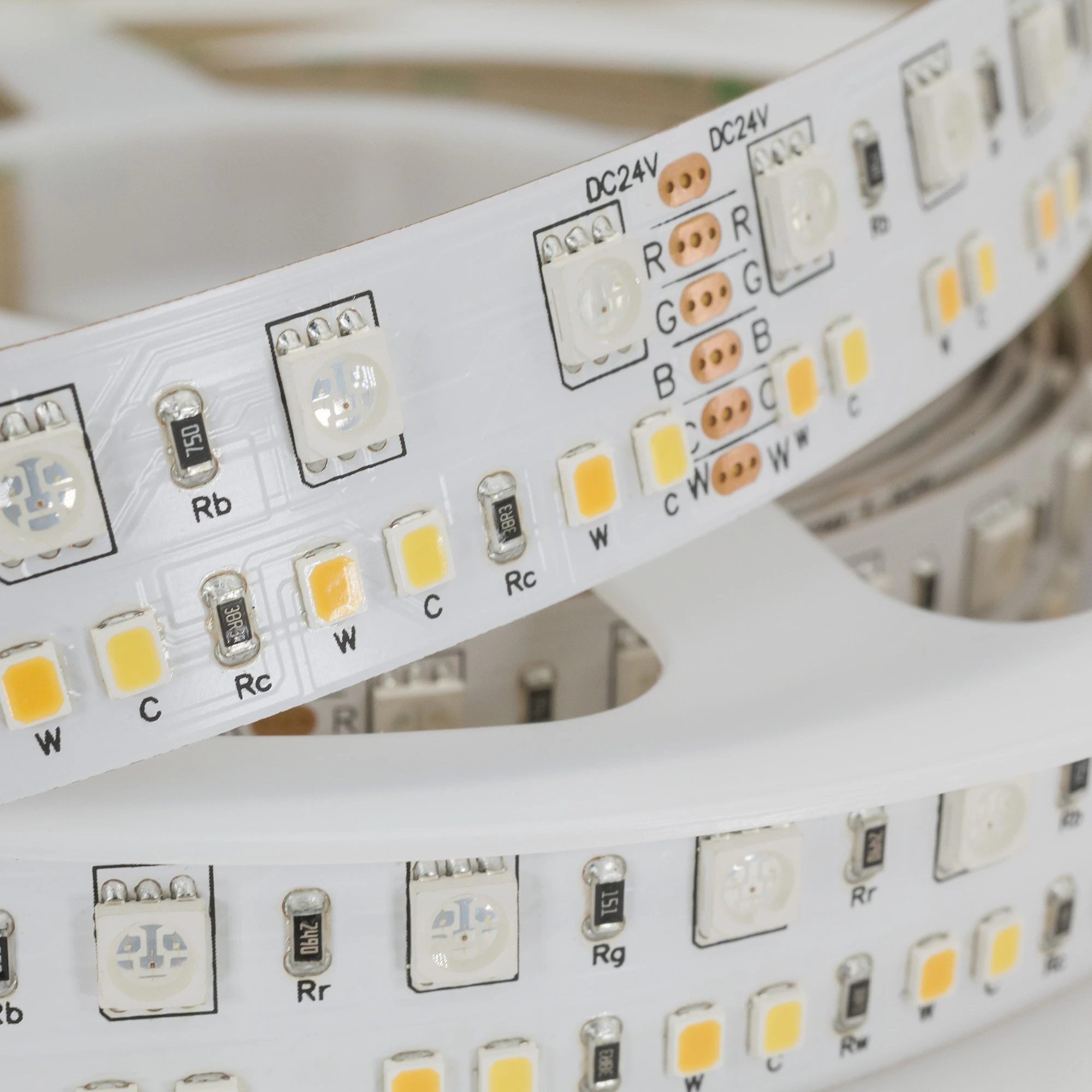

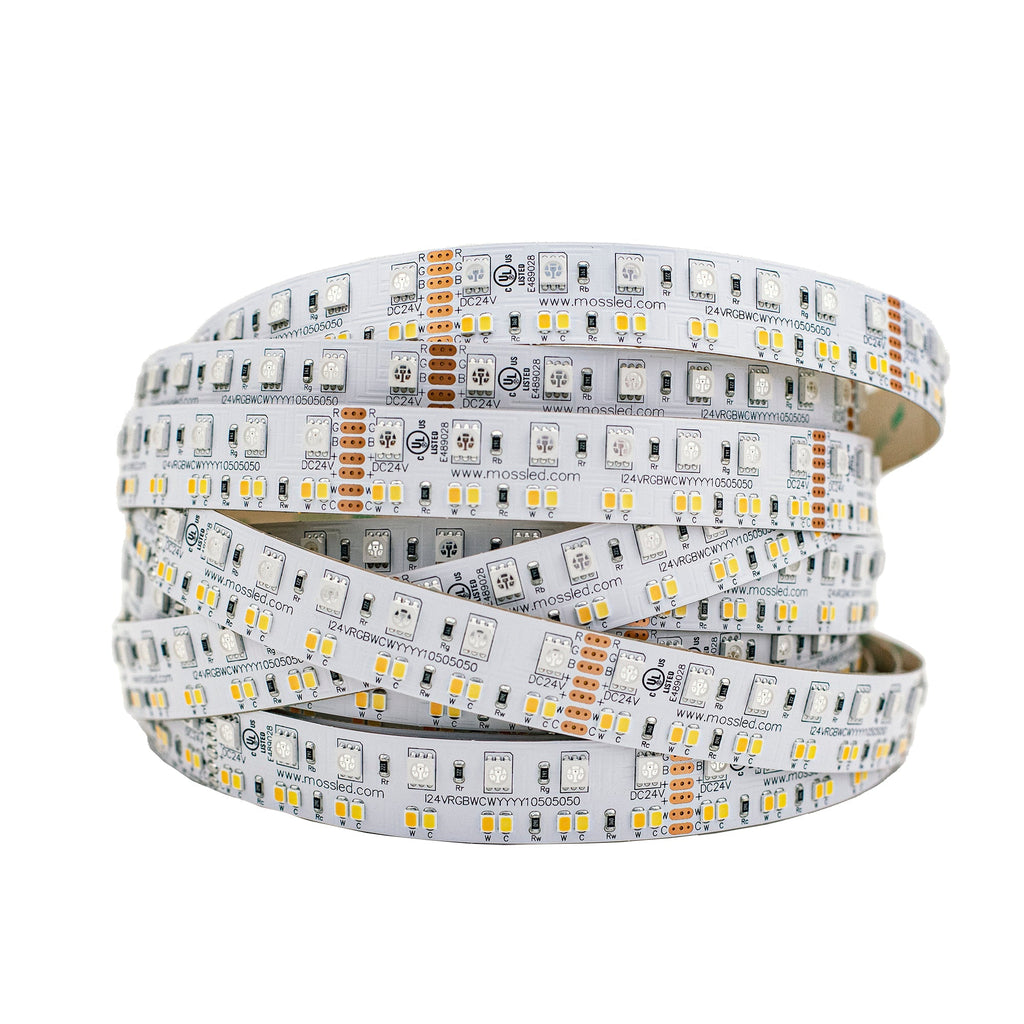

The FlexLED 210 RGB+WW+CW is one of our brightest and most versatile LED strips, featuring RGB colour mixing alongside two full-spectrum white emitters for high-CRI, high-output illumination. Available in three CCT configurations (2700K–6000K, 2700K–5600K, or 3000K–5600K), this LED strip ensures seamless integration with existing lighting systems. Designed to work perfectly with our 5-channel Cinque and VentiCinque LED DMX dimmers, it offers precision control for film, television, commercial, and architectural applications.
Key Features:
Industry standard 2700K–6000K emitters
High-CRI White LED– Delivers accurate, natural-looking white light with full-spectrum performance.
RGB + White Integration – Offers dynamic colour mixing and precision white light control.
Brightest FlexLED Tape – Optimized for maximum output and colour accuracy.
Designed for 5-Channel Control – Works seamlessly with the Cinque and VentiCinque LED DMX dimmers.
Flexible & Customizable – Available in indoor, weatherproof, and waterproof versions.
Installation & Handling Considerations:
Indoor and weatherproof strips feature 3M adhesive backing for easy installation.
Waterproof versions require mounting via silicone (not included).
Soldering Guidelines:
Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.
Additional Details:
Maximum run length: 10 meters (32.81’) – Power required at both ends to avoid line loss.
Controller, power supply, and extension cables sold separately.
Quantity discounts and custom colour temperatures available.
Pricing is for 5 meters (16.4’) - custom lengths available
The FlexLED 210 RGB+WW+CW is the ultimate solution for high-output, precision lighting, delivering unmatched flexibility, brightness, and colour accuracy.
Product Type : RGB + WW + CW 14MM RGB + WW + CW 20MM RGB + WW + CW 20MM RGB + WW + CW 20MM
Product Code : I24VRGBWCW276010505050-14MM I24VRGBWCW276010505050 I24VRGBWCW275610505050 I24VRGBWCW305610505050
CRI : 95 95 95 95
Kelvin : 2700k +/-100k AND 6000k +/- 100k AND RGB 2700k +/-100k AND 6000k +/- 100k AND RGB 2700k +/-100k AND 5600k +/- 100k AND RGB 3000k +/-100k AND 5600k +/- 100k AND RGB
PCB Color : White White White White
Current, Rating : 1.8 A / meter 1.8 A / meter 1.8 A / meter 1.8 A / meter
Voltage : 24 VDC 24 VDC 24 VDC 24 VDC
Wattage : 43.2 W / meter 43.2 W / meter 43.2 W / meter 43.2 W / meter
CC / CV : Constant Voltage Constant Voltage Constant Voltage Constant Voltage
IP Rating : IP43 IP43 IP43 IP43
Lumens @ Full : 3000 lm / meter 3000 lm / meter 3000 lm / meter 3000 lm / meter
Lumen / Watt : 69.4 69.4 69.4 69.4
Lifetime* : 50,000 hours 50,000 hours 50,000 hours 50,000 hours

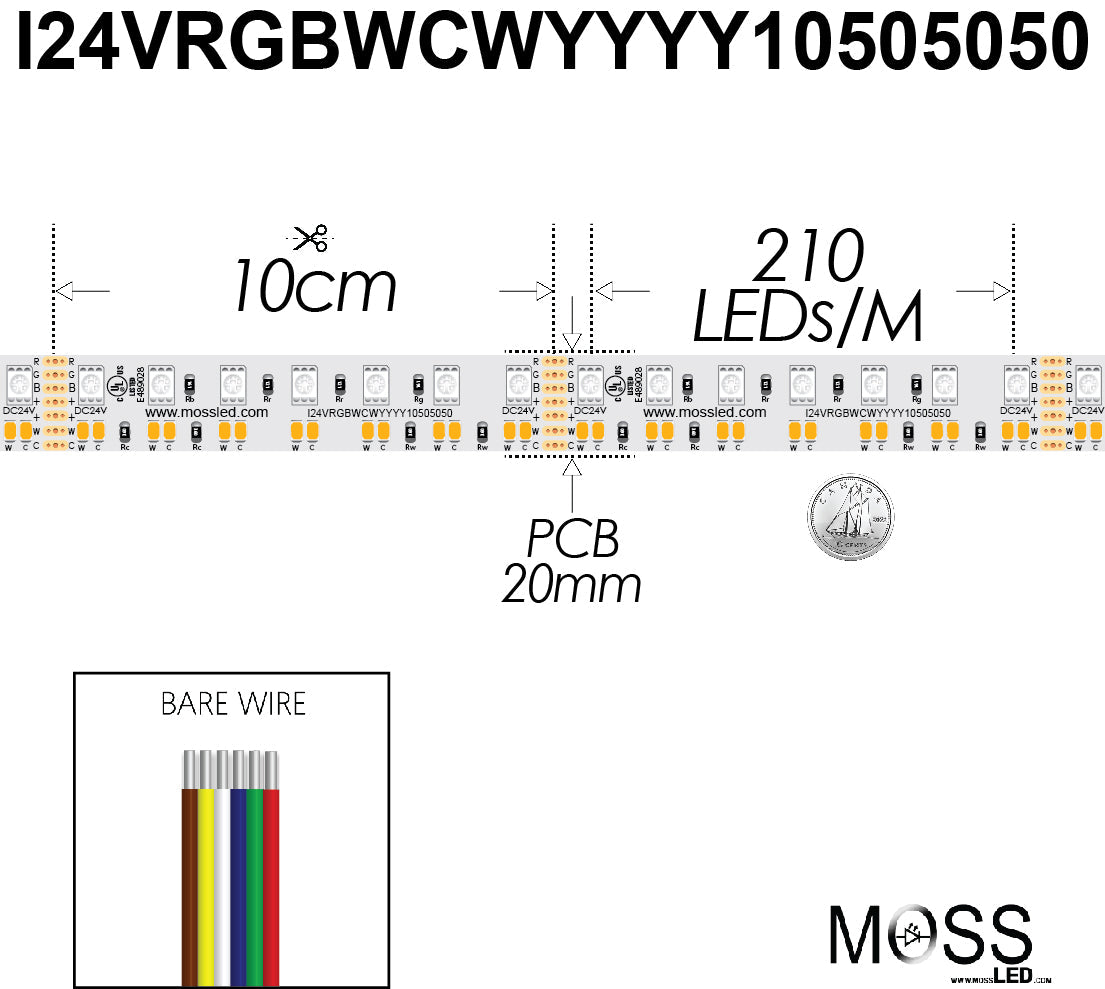

Cutting Length : 10 CM 10 CM 10 CM 10 CM
LED Quantity : 210 LED / meter 210 LED / meter 210 LED / meter 210 LED / meter
Number of Contacts : 6 6 6 6
LED Type : 5050 + 2835 5050 + 2835 5050 + 2835 5050 + 2835
Copper Quantity : 3 Oz. 3 Oz. 3 Oz. 3 Oz.
Temperature, Operating, Maximum : 50 C 50 C 50 C 70 C
Temperature, Operating, Minimum : -40 C -40 C -40 C -40 C
Agency Ratings : UL E489028, CE, RoHS UL E489028, CE, RoHS UL E489028, CE, RoHS UL E489028, CE, RoHS

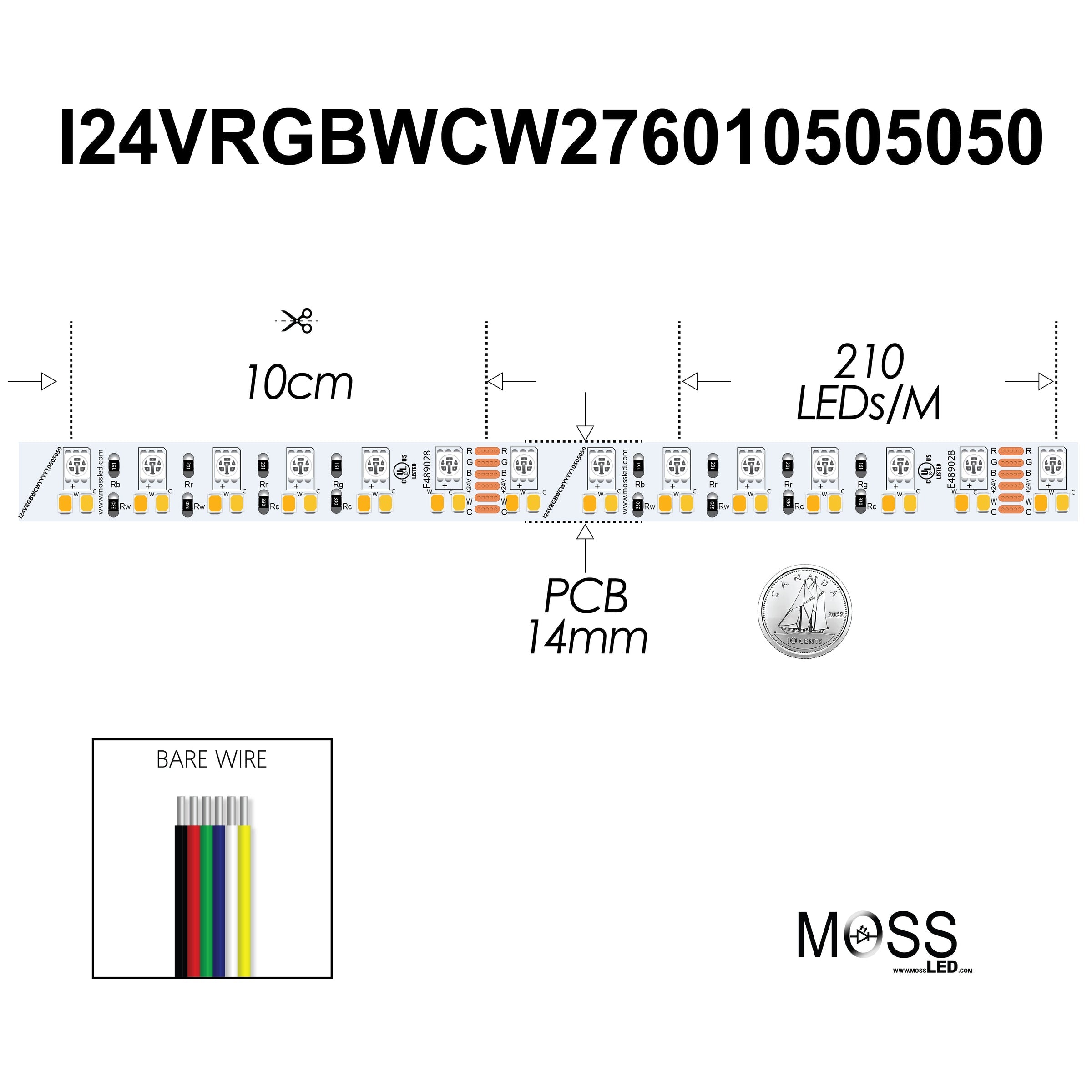

PCB Width : 14MM 20MM 20MM 20MM
Maximum Recommended Length : 5 meters 5 meters 5 meters 5 meters
Viewing Angle : 120 120 120 120
Adhesion : TESA 4965 TESA 4965 TESA 4965 TESA 4965
Red Wavelength : 620 ~ 622.5nm
Green Wavelength : 522.5 ~ 525nm
Blue Wavelength : 470 ~ 472.5nm
