Description

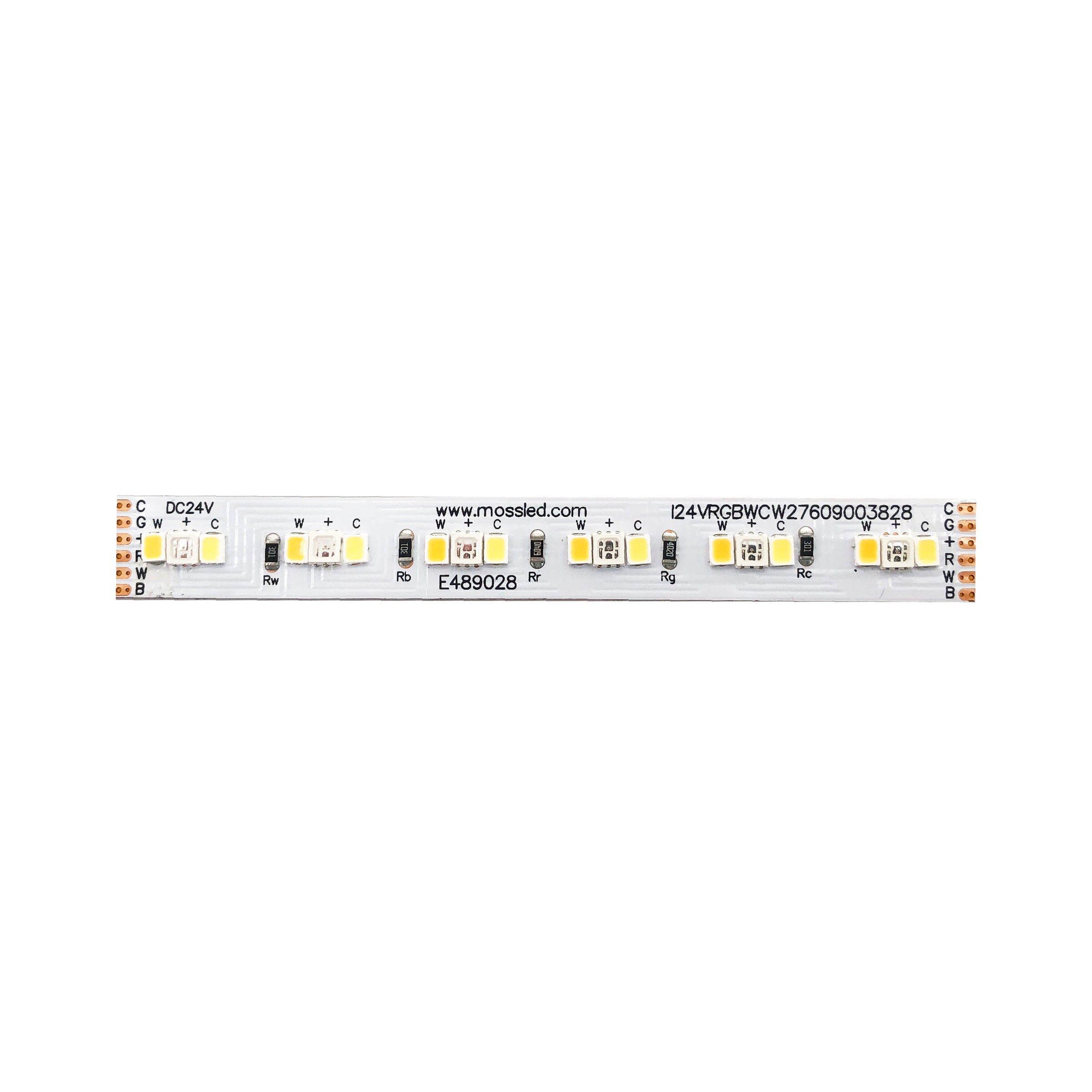

The FlexLED 180 RGB+WW+CW is a high-performance, space-efficient LED strip, featuring our new 3838 RGB chip, which delivers a similar power output as a 5050 RGB chip in a 24% smaller footprint. This versatile LED solution combines full-colour RGB with dynamic warm 2700k and cool 6000k white tuning, making it ideal for film, television, architectural, and commercial applications.
Key Features:
Compact 3838 RGB Chips – Smaller footprint with the same high output as 5050 RGB.
RGB + Dynamic White (WW+CW) – Versatile colour mixing and adjustable white light.
24VDC Efficiency – Allows for longer runs with minimal voltage drop.
Flexible & Customizable – Cuttable and adaptable for a variety of installations.
Durable & Reliable – Designed for high-performance applications.
Installation & Handling Considerations:
Indoor and weatherproof strips feature 3M adhesive backing for easy installation.
Waterproof versions require mounting via silicone (not included).
Soldering Guidelines:
Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.
Additional Details:
Maximum run length: 10 meters (32.81’) – Power required at both ends to avoid line loss.
Controller, power supply, and extension cables sold separately.
Quantity discounts and custom colour temperatures available.
Pricing is for 5 meters (16.4’) - custom lengths available
The FlexLED 180 RGB+WW+CW 24V offers a powerful, space-saving lighting solution, delivering high brightness, precision control, and seamless colour blending.
Product Type : RGB + WW + CW
Product Code : I24VRGBWCW27609003828
CRI : 95
CCT : 2700 +/-100K AND 6000 +/- 100K
PCB Color : White
Current, Rating : 0.95 A / meter
Voltage : 24 VDC
Wattage : 23.5 W / meter
CC / CV : Constant Voltage
IP Rating : IP43
Lumens @ Full : 2000 lm / meter
Lumen / Watt : 87
Lifetime* : 40,000 hours

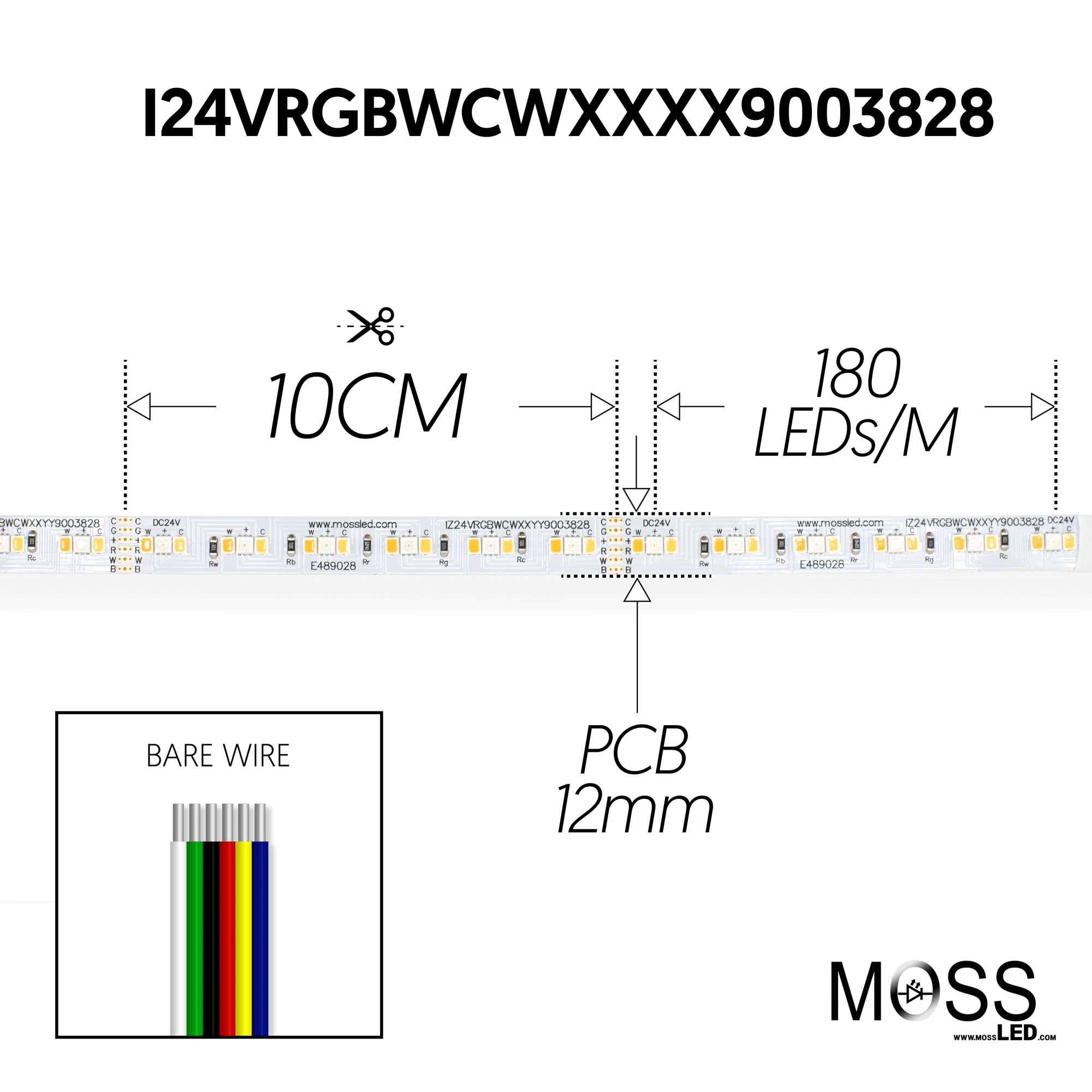

Cutting Length : 10 CM
LED Quantity : 180 LED / meter
Number of Contacts : 6
LED Type : 3838 + 2835
Copper Quantity : 3 Oz.
Temperature, Operating, Maximum : 70 C
Temperature, Operating, Minimum : -40 C
Agency Ratings : UL E489028, CE, RoHS
PCB Width : 12 MM
Maximum Recommended Length : 5 meters
Viewing Angle : 120
Adhesion : TESA 4965
