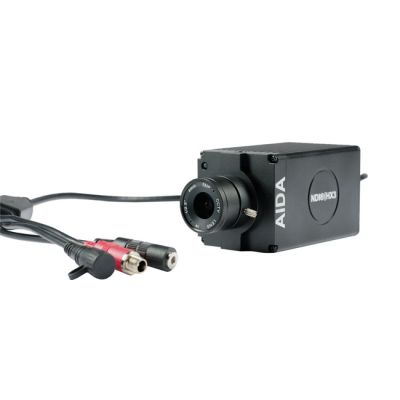

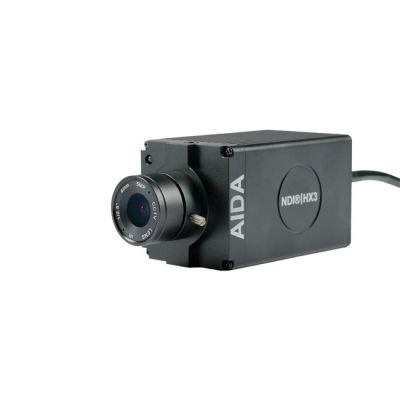

This FHD 120fps NDI|HX3 POV Camera from AIDA Imaging provides an industry leading 1080p120 video over HDMI or IP output thanks to its native NDI|HX3 support. Low-latency broadcast signals, power, and data communication can be delivered over a single connection. The camera comes with a pre-installed 4mm CS-mount lens.
AIDA Imaging offers this innovative POV camera capable of capturing full HD images at a stunning 120 frames per second with an 80° horizontal field of view. Pairing this high-speed functionality with NDI|HX3 IP streaming compatibility, the HD-NDI3-120 camera outputs uncompressed video signals at up to 60 MB/s. Coming pre-loaded with NDI|HX3 support means less cable clutter and installation hassle: video, audio, control, power, and data are all carried over a single CATx cable. Bridging this camera through NDI networking and utilizing the accessible Web UI allows for the creation of an entire video ecosystem, especially when combined with other NDI|HX-compatible devices from AIDA Imaging (available separately). HDMI output with embedded audio is also available.

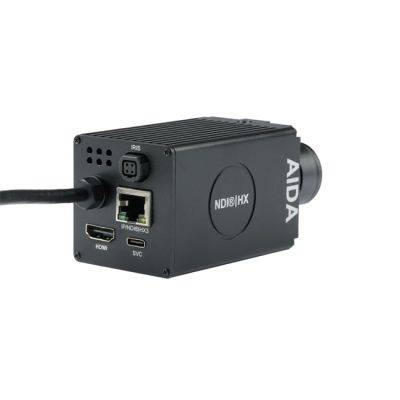

The HD-NDI3-120 is housed in a compact and rugged case suitable for a wide variety of applications. 1/4"-20 female mounting threads are located on both the bottom and top of the housing to provide flexible rigging capabilities, from tripods to truss. The front of the camera features a small tally light to ensure talent is ready to go live. A built-in breakout cable carries the 12 VDC input port and a 3.5mm jack for line-in audio as well as a set of dip switches for firmware adjustment.
Compatibility
Newtek NDI|HX
Image Sensor
1/3" Progressive CMOS
Effective Pixels (H x V)
1920 x 1080
Resolutions
NDI|HX/HDMI: 1080p120/100
NDI|HX3/SRT/RTMP/RTSP: 1080p60/59.95/50/30/29.97/25/24, 1080i60/59.94/50, 720p60/59.94/50
Lens
5MP 4mm CS-Mount
Field of View
80°
Color Spaces
4:2:2 (YCbCr) 10bit
Minimum Illumination
Day: 0.2 Lux
Night: 0.1 Lux
Inputs / Outputs
USB I/O
1 x USB-C Female Input/Output
Video I/O
1x HDMI Output
1x RJ45 Output
Audio I/O
1x 1/8" / 3.5 mm Line Input
Power
Power Source
AC Adapter with Power Brick (Included), PoE
DC Input Power
12 VDC
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Physical
Mounting
Top: 1x 1/4"-20 Thread
Bottom: 1x 1/4"-20 Thread
Color
Black
Cable Length
Not Specified by Manufacturer
Dimensions
3.35 x 1.93 x 1.93" / 8.51 x 4.9 x 4.9 cm
Weight
0.8 lb / 350 g
Packaging Info
Package Weight
1.96 lb
Box Dimensions (LxWxH)
10.1 x 5.1 x 4.3"
