EVO FLEX PROFILE is designed to fit EVO FLEX 1, 2, 3 and SMART EVO FLEX TONE 1, 2 and 5. Combine with other EVO FLEX accessories for the perfect assembly. A total of 4 profiles are available, each with its own application. See installation advice for more information on all profiles. Combine with other EVO FLEX accessories for the perfect installation.

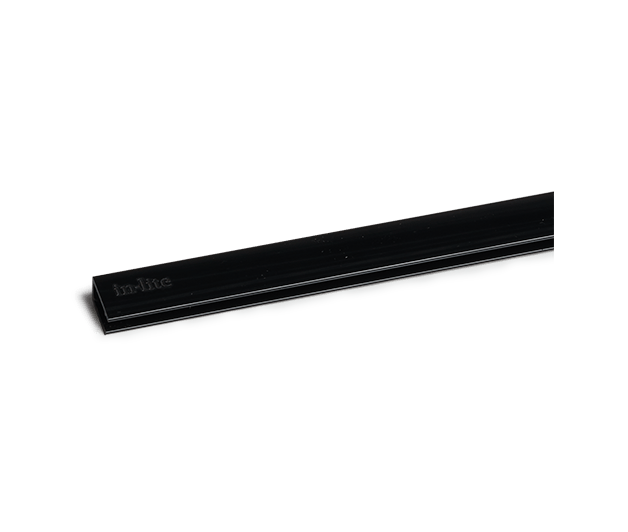

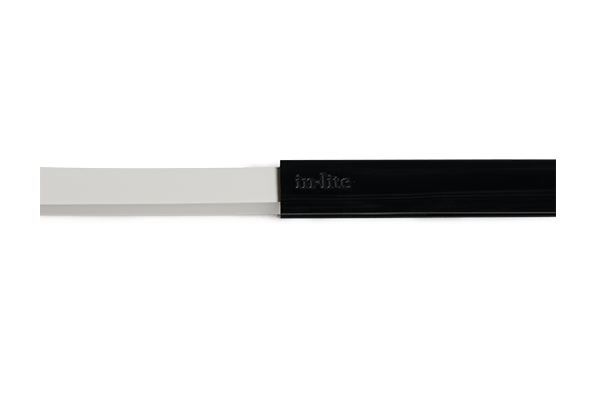

This is a straight profile, made of PC , with a length of 101 cm for mounting EVO FLEX. For easy installation under staircases, pond edges or roof overhangs. Combine with other EVO FLEX accessories for the perfect assembly.
Makes assembly of EVO FLEX easy
Applicable for all (SMART) EVO FLEX fixtures
Easy to combine with other EVO FLEX accessories
Installation advice:
Look carefully at which profile best suits the application.
EVO FLEX PROFILE 1 and 2
When mounting EVO FLEX PROFILE 1, 2 and 3 it is recommended to use mounting sealant. The profile can then (if possible) be fixed with screws to allow the sealant to harden. Screw holes have been prepared for this purpose. If required, EVO FLEX PROFILE can be cut to size. The sealant must be suitable for outdoor applications and must be UV and weather resistant. It is required that the sealant has a high initial adhesion and is permanently elastic after curing.
PROFILE 3
For mounting EVO FLEX PROFILE 1, 2 and 3, it is recommended to use mounting sealant. If required, EVO FLEX PROFILE can be cut to size. The sealant must be suitable for outdoor applications and must be UV and weather resistant. It is required that the sealant has a high initial adhesion and is permanently elastic after curing.
PROFILE 4
The profile can be mounted using screws (not supplied). Screw holes have been prepared for this purpose.
SPECS:
Art. nr. 10250352
Application: Stairs
EAN code 8717051005787
Height (inch): 0.7087
Height (mm): 18
Length (inch): 39.7638
Length (mm): 1010
Light direction: Downwards
Order unit: 12
Processing: Concrete, NaturalStone, Wood
Article group: Related products
Width (inch): 0.4331
Width (mm): 11
