Description

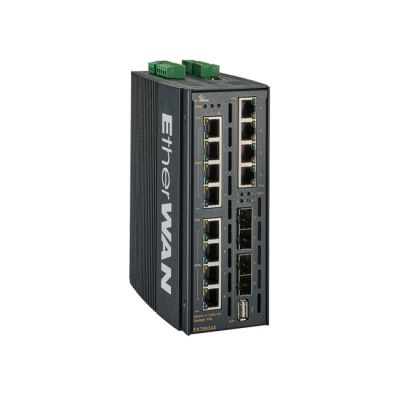

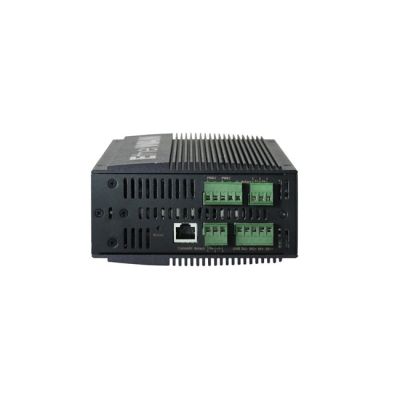

EtherWAN EX78900X Series Hardened Managed 12-Port Gigabit PoE and 4-Port 10G SFP+ Ethernet Switch
EtherWAN's EX78900X series is a hardened DIN-rail mounted managed PoE Ethernet switch platform. Equipped with 12 gigabit PoE ports providing up to 90W power per port with IEEE 802.3.bt protocol support and 4 dual-rate 10 gigabit SFP+ ports, the EX78900X series provides flexibility, speed, and reliability for networks in urban infrastructure, transportation, security, and other areas where connectivity is crucial.
Features
Twelve 10/100/1000BASE-T(X) ports for high bandwidth connections
4 dual-rate SFP+ uplink ports for 10-gigabit fiber connections to nodes
Full capacity switching running at full duplex
Integrated with 2 DIs (Digital Input) and 2 Relay Outputs
Wide operating temperature range -40 to 75°C (-40 to 167°F)
Fanless operation
High impact, thermal shock, and electrical noise resistance
Static routing, RIP v1/v2, and OSPF support
Redundancy with VRRP
Reduces amount of broadcast traffic
IEEE 802.3bt with up to 90W per port; 360W total power budget
PoE watchdog monitors status of connected PoE devices
Port control, SFTP
1x port-based network access control and remote authentication through RADIUS and TACACS+
Configure and monitor with eVue™ and eLite™ network management tools
Complimentary Technical Support
Free firmware upgrades and notifications
Limited Lifetime Warranty
