Description

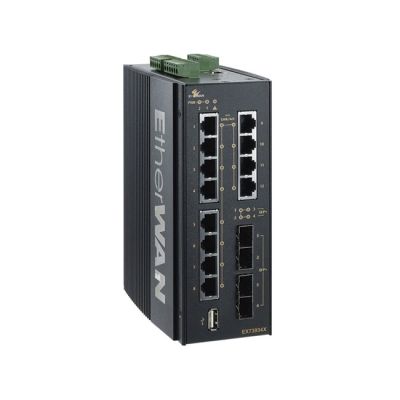

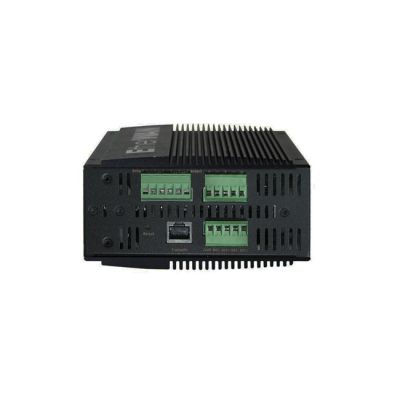

EtherWAN EX73900X Series Hardened Managed 12-Port Gigabit and 4-Port 10G SFP+ Ethernet Switch
EtherWAN's EX73900X series is a hardened DIN-rail mounted managed Ethernet switch platform. Equipped with up to 12 gigabit Ethernet and 4 dual-rate 10 gigabit SFP+ ports, the EX73900X series provides flexibility, speed, and reliability to support networks for urban infrastructure, transportation, security, power substations, and other areas where connectivity is crucial.
Features
8 or 12 10/100/1000BASE-T(X) ports for high bandwidth connections
Up to 4 dual-rate SFP+ uplink ports for 10-gigabit fiber connections to nodes
Full capacity switching running at full duplex
Integrated with 2 DIs (Digital Input) and 2 Relay Outputs
Wide operating temperature range -40 to 75°C (-40 to 167°F)
Fanless operation
High impact, thermal shock, and electrical noise resistance
Static routing, RIP v1/v2, and OSPF support
Redundancy with VRRP
Reduces amount of broadcast traffic
IEC 61850-3/IEEE 1613 certified for power substation
NEMA TS2 rated
UL certified for safety
Port control, SFTP
Dying gasp feature provides SNMP trap upon power off
Configure and monitor with eVue™ and eLite™ network management tools
Complimentary Technical Support
In-person training and free online training courses available
Limited Lifetime Warranty
