Description

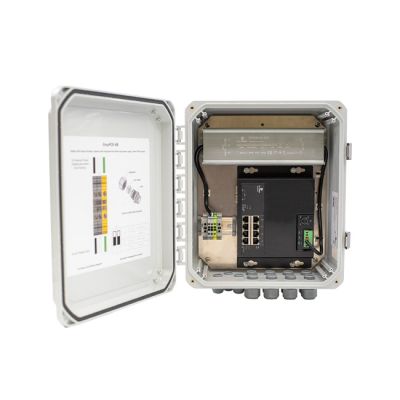

NEMA 4/4X Indoor/Outdoor Cabinet with Integrated PoE Switch and power supply. Unmanaged Gigabit Ethernet PoE Switch with 8 Gigabit PoE Ports + 2 SFP ports. IEEE802.3at 30W with 240W PoE power budget. Wall or Pole Mount, 100-240VAC power input. Pole mounting kit included.
Unmanaged Gigabit Ethernet PoE Switch with 8 Gigabit PoE Ports + 2 SFP ports. IEEE802.3at 30W with 240W PoE power budget. Wall or Pole Mount, 100-240VAC power input. Pole mounting kit included.
EtherWAN's EasyPoE®Lite series is an integrated solution that combines a PoE switch, power supply, and a surge suppressor, all in a single, secure, NEMA 4X rated cabinet enclosure. Equipped with either 4 or 8 gigabit PoE ports that provide a full 30W max PoE output per port (with a power budget of 120W for 4-ports and 240W for 8-ports), the EasyPoE Lite series provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance and other networking applications.
NEMA-Rated Indoor/Outdoor Design for Non-Ventilated & Harsh Environments
Wide operating temperature -40 to 75°C (-40 to 167°F)
Fanless, integrated design
Weather-resistant, anti-corrosion, and vandal-resistant design
Time/Cost Saving Features
Integrated components ready out of the box
Wall and pole mountable (pole mounting kit option available)
Preinstalled bulkheads for cable connections
Replaceable Hardened Components
The integrated PoE switch comes with 4 or 8-port options at full 30W PoE per port
Outdoor-rated, IP67 power supply
Optional surge suppressor
