Description

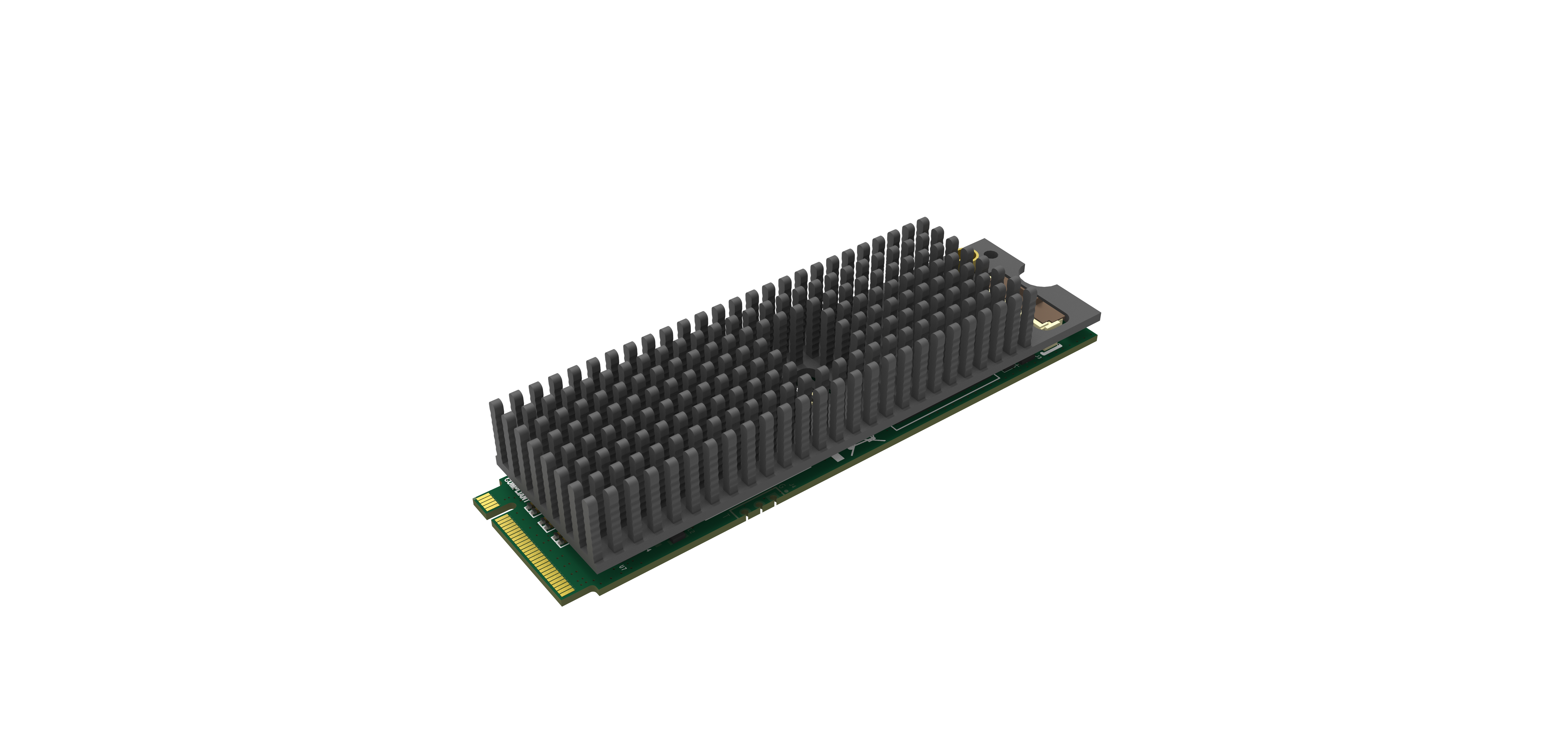

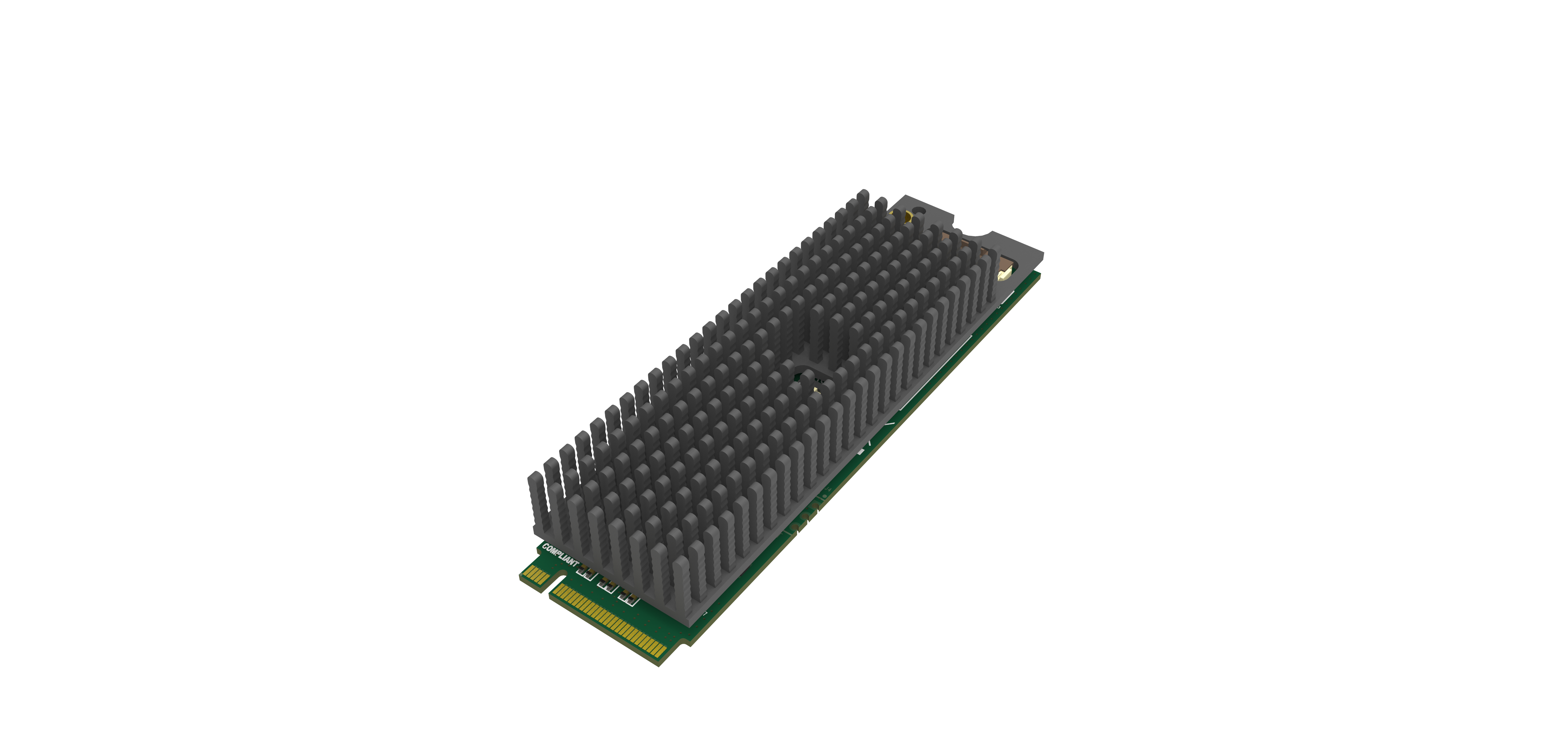

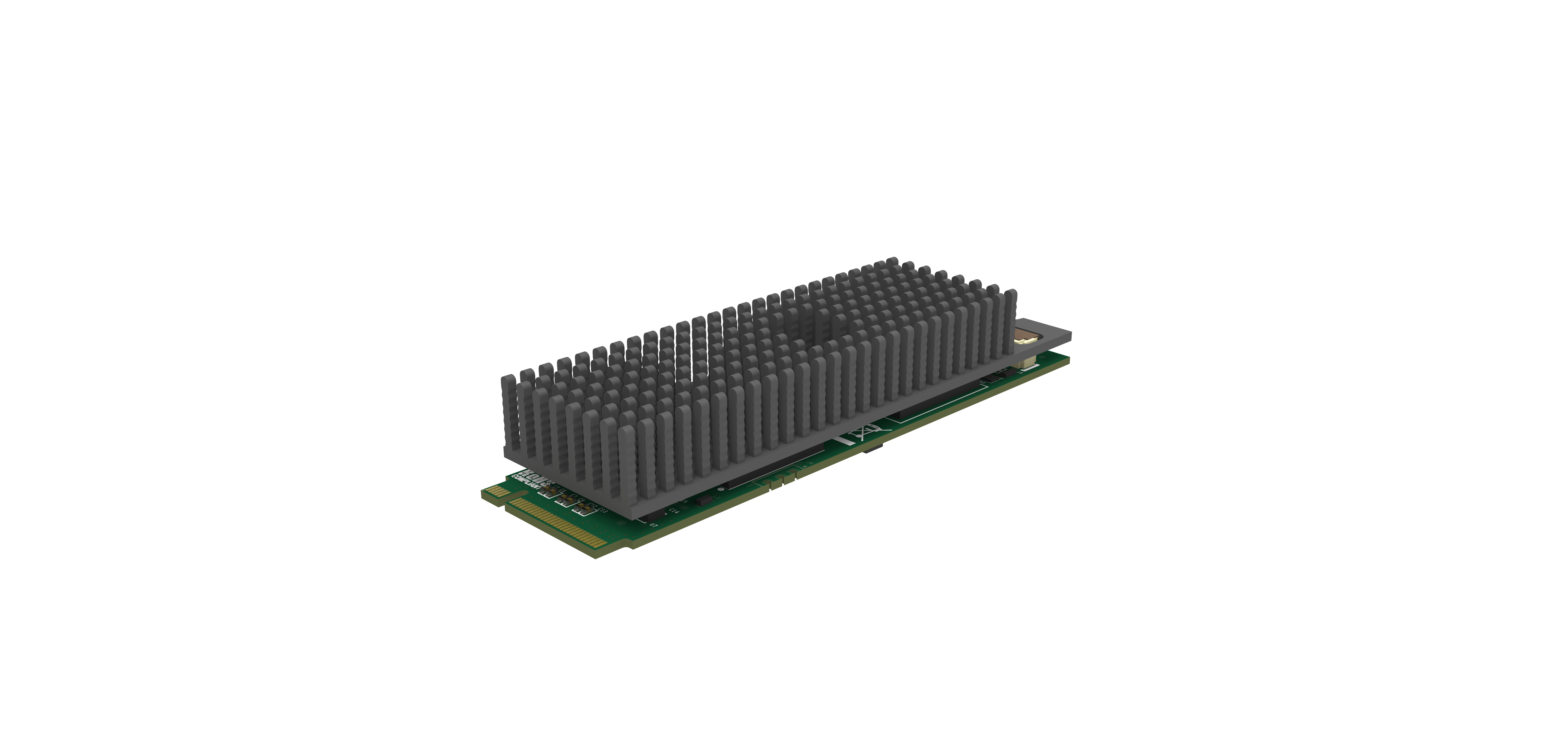

One-channel 2K capture card for all-in-one interfaces
- Support one-channel 2K HDMI/SDI input with embedded audio
- M.2 2280 standard size for small or portable chassises
Interface
Input Interface
- HDMI x1, with input resolution up to 2048 x 1080 pixels
- SD/HD/3G/2K SDI x1, with input resolution up to 2048 x 1080 pixels
Host Interface
- M.2 2280 Type M (PCIe Gen2 x2)
Video Engine
- Auto detection of input signal format
- Color formats conversion
- Low latency mode
- SG-DMA transmission mode
- Multiple replicated capture streams
- Closed caption (SDK required)
Software
- Window & Linux driver and SDK
- Upgradable firmware
- Compatible with Capture Express, Magewell Bridge for NDI®, Plugin for Premiere®
Others
- 2-year warranty
- Continuously work for 24hx7
- LED status indicator
- Multiple devices on one host
- On-board dip switch to set card number
