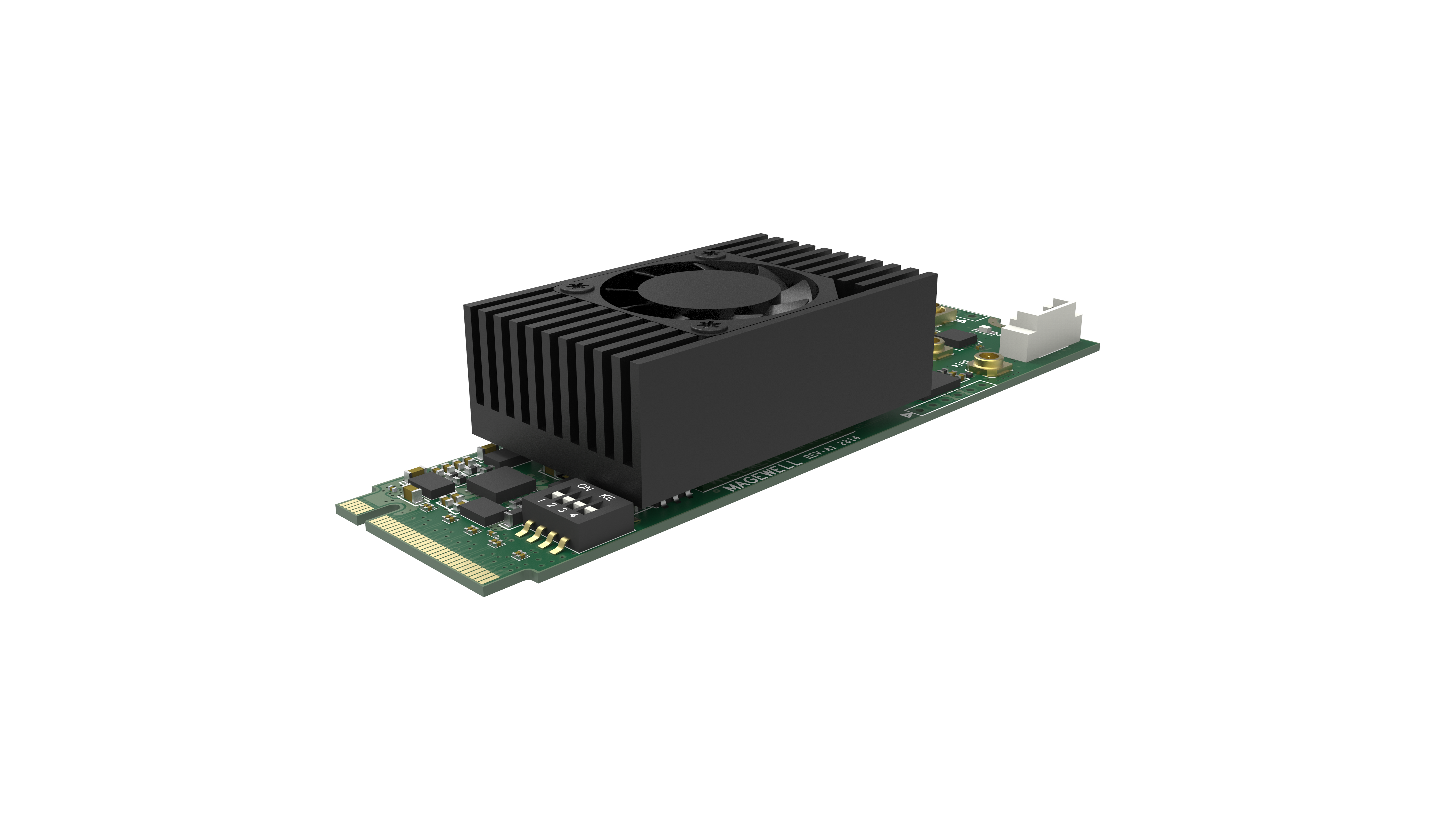

Description
- Captures 1-channel single-link 12G SDI or quad-link 3G SDI + embedded audio
- High throughout for capture and supports higher frame rates
- M.2 2280 standard size for small or portable systems
Interface
Input Interface
- SD/HD/3G/6G/12G SDI
- Supports input resolution up to 4096x2160 60fps
Host Interface
- M.2 2280 Type M (PCIe Gen3 x4)
Video Engine
- Auto detection of input signal format
- Color formats conversion
- Low latency mode
- SG-DMA transmission mode
- Multiple replicated capture streams
- Closed caption (SDK required)
Software
- Window & Linux driver and SDK
- Upgradable firmware
- Compatible with Capture Express, Magewell Bridge for NDI®, Plugin for Premiere®
Others
- 2-year warranty
- Continuously work for 24hx7
- LED status indicator
- Multiple devices on one host
- On-board dip switch to set card number
