Description
in-lite DOT 22 Stainless Steel 22mm - 12V/21V - 0.5 VA - Ring 28 SS - 99110020 from in-lite built for clean, modern outdoor lighting systems.
Illuminating your driveway or garden path with a small, versatile ground spotlight? DOT 22 is ideal for creating better visibility as well as an enchanting light display. Place DOT 22 every 1.5 meters for best results. Rather create a playful effect? DOT is available in 60 mm and 22 mm. With the three different colored rings, you can complete this ground spotlight in style.
DOT is suitable for all HUBs, including SMART HUB-300.
DOT is suitable for all HUBs, including SMART HUB-300.
- Available with and without ring
- Combinable with DOT Ø 2.36"
- Also suitable for SMART HUB-300

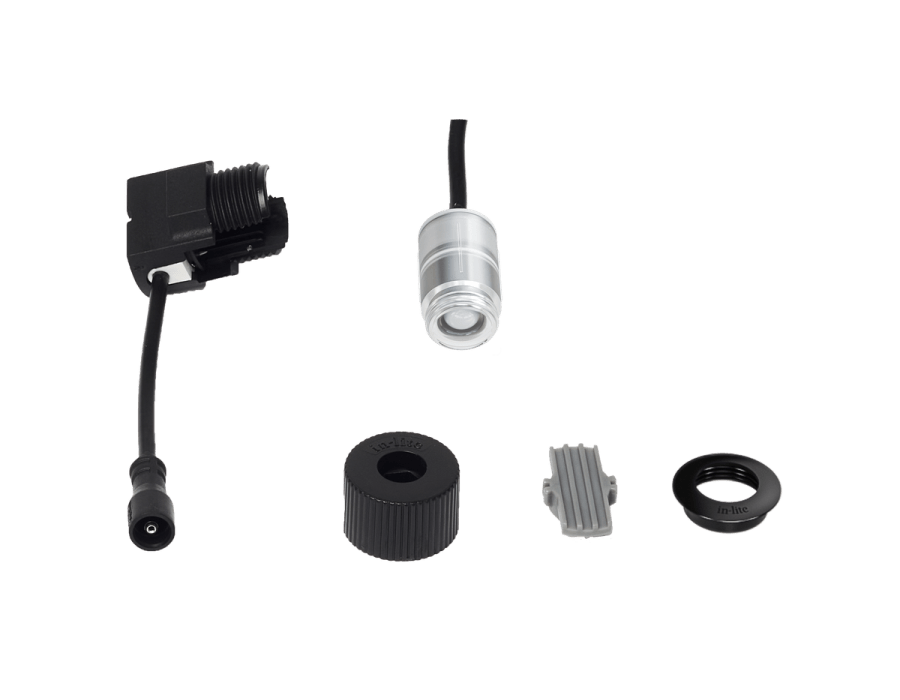

IN THE PACKAGE: INCLUDED IN PACKAGE
- DOT 22
- RING 28 (in the color of your choice)
- EASY-LOCK
Product Details
Want to stylishly illuminate your driveway or garden path with a compact, versatile ground spotlight? DOT 22 is perfect for improving visibility and adding an enchanting look to your outdoor space. For optimal effect, place DOT 22 every 1.5 meters.
Want a more playful lighting effect? Then choose from 22 mm or 60 mm sizes. DOT ground spots can be personalized with rings in three different colors, so you can customize them completely to your own taste. Black, Pearl Grey and Stainless Steel.
Moreover, DOT is the only ground spotlight in our range that is compatible with the SMART HUB-300. For detailed installation instructions, see installation advice.
Want a more playful lighting effect? Then choose from 22 mm or 60 mm sizes. DOT ground spots can be personalized with rings in three different colors, so you can customize them completely to your own taste. Black, Pearl Grey and Stainless Steel.
Moreover, DOT is the only ground spotlight in our range that is compatible with the SMART HUB-300. For detailed installation instructions, see installation advice.
Specs
Art. nr.
99110020
Application
Driveway, Path
Mounting depth (inch)
1.9685
Recessed depth (mm)
50
Diameter (inch)
1.1024
Diameter (mm)
28
Color
StainlessSteel
Energy label
G
Height (inch)
1.4173
Height (mm)
36
Efficiency (Lumen/Watt)
3
Net luminous flux (Lumen)
1
Power [W]
0.36
Processing
Concrete, Wood
Article group
Recessed lights
Voltage
12 volt, 21V
VA value
0.5
Color temperature
2850
Material finishing/coating
Anodized
Kilowatt hour
1
Luminous intensity [Cd]
0.5
Power factor
0.6
Installation instructions
DOT should be installed in a 22 mm diameter hole. This can be done in wood (with a wood drill bit) or in stone (with a cooled diamond drill bit). A dealer or landscaper can perform this installation for you. Be sure to drill the hole straight and just the right diameter to avoid problems with the lighting's electronics.
Unlike FUSION 22, HYVE 22 and DB-LED, DOT 22 is compatible with SMART HUB-300. The rest of the ground spots connect to: HUB-50, HUB-100 and SMART HUB-150.
Unlike FUSION 22, HYVE 22 and DB-LED, DOT 22 is compatible with SMART HUB-300. The rest of the ground spots connect to: HUB-50, HUB-100 and SMART HUB-150.
Need help choosing compatible parts? Contact The LA Firm for project support.
