Description
in-lite DISC WALL 200mm - 12V/21V - 4.9 VA - 99090000 from in-lite built for clean, modern outdoor lighting systems.

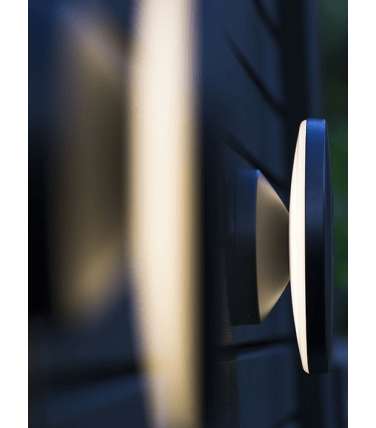

DISC WALL is a stylish and contemporary wall fixture from the DISC concept. The fixture casts a diffused, all-around glow on walls and can be connected to all in-lite HUB transformers. It pairs beautifully with the floor lamps and pendant lights from the DISC concept.
- Provides a diffuse, circumferential light image
- Suitable for installation on all in-lite HUB transformers
- Pairs perfectly with other fixtures from the DISC concept
Installation advice:
Use an extension cord to neatly hide the EASY-LOCK
IN THE PACKAGE: INCLUDED IN PACKAGE
- 1x DISC LIGHT HEAD Black
- 1x BASE 1
- 1x EASY LOCK
- 60 cm fixture cable
- Screws
- Nylon plugs
- 1x Torx wrench
Product Details
DISC WALL is a stylish and contemporary wall fixture from the DISC concept. The fixture casts a diffused, all-around glow on walls and can be connected to all in-lite HUB transformers. It pairs beautifully with the floor lamps and pendant lights from the DISC concept.
Specs
Art. nr.
99090000
Application
Canopy, Facade, Fence/wall , House
CRI
98
Diameter (inch)
7.9
Diameter (mm)
200
Color
Black
Energy label
G
Height (inch)
3.1
Height (mm)
80
IP class
55
Light direction
All around
Types of Light
Diffuse
Efficiency (Lumen/Watt)
70
Net luminous flux (Lumen)
211
Power [W]
2.9
Processing
Wood
Article group
Wall lights
Voltage
12 volt, 21V
VA value
4.9
Color temperature
2900
Material finishing/coating
FCBV
Kilowatt hour
3
Luminous intensity [Cd]
76.7
Power factor
0.59
Installation instructions
Installation advice
DISC WALL directs light toward the wall and, to a lesser extent, to the sides; therefore, the side of the head is not completely covered or sealed off, but it is sufficiently covered to direct the light toward the wall. Because the side is partially covered, you do not look directly into the light source. As a result, the fixture is not blinding.
Thanks to the included BASE 1, the light source is positioned at exactly the right distance from the wall to project a beautiful, soft, all-around glow onto the wall.
DISC WALL combines perfectly with other fixtures from the DISC concept, as well as with PUCK, HALO, and other in-lite fixtures in Black or Dark Grey anodized aluminum.
Thanks to the included BASE 1, the light source is positioned at exactly the right distance from the wall to project a beautiful, soft, all-around glow onto the wall.
DISC WALL combines perfectly with other fixtures from the DISC concept, as well as with PUCK, HALO, and other in-lite fixtures in Black or Dark Grey anodized aluminum.
