Description

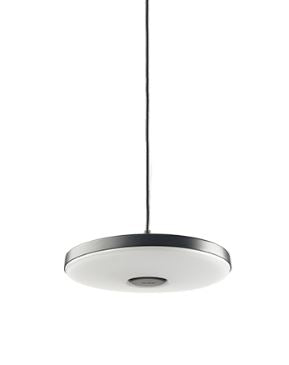

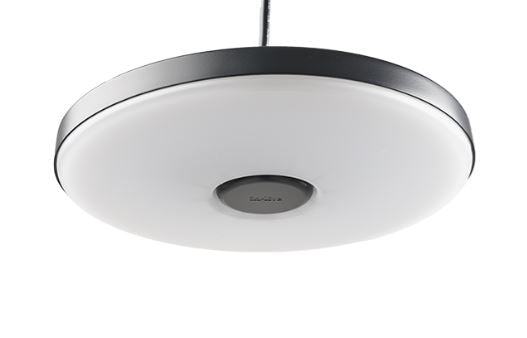

in-lite DISC PENDANT Black - 10202650 from in-lite built for clean, modern outdoor lighting systems.
The DISC PENDANT is an attractive hanging light that is part of the DISC concept.The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 220 cm.
- Attractive 12V hanging light, part of the DISC product family
- Made of aluminum with high-quality FCBV coating in the color Black
- Easy to install with strain relief provided
Product Details
DISC PENDANT (article number: 10202650) is an attractive hanging light from the DISC concept. This stylish fixture comes with a 2.20 meter long cable.The strain relief device provided is used to hang the DISC PENDANT (12V), after which the cable is concealed in the ceiling. Use the rubber cable cap provided for a tidy finish.
Specs
Art. nr.
10202650
Application
Canopy, Pergola
CRI
98
Diameter (inch)
7.874
Diameter (mm)
200
Color
Black
EAN code
8717051005015
Energy label
G
Height (inch)
1.4173
Height (mm)
36
IP class
55
Light direction
Downward
Types of Light
Diffuse
Efficiency (Lumen/Watt)
68
Net luminous flux (Lumen)
196
Power [W]
3
Article group
Ceiling lights
Voltage
12 volt
VA value
4.9
Color temperature
2900
Material finishing/coating
FCBV
Luminous intensity [Cd]
67.8
Power factor
0.64
Installation instructions
Installation advice
This stylish fixture comes with a 220 cm long cable that can be easily shortened. It is not necessary to cut the connector. The strain relief device provided is used to hang the DISC PENDANT (12V), after which the cable is concealed in the ceiling. Use the rubber cable cap provided for a tidy finish. The DISC PENDANT (12V) should preferably be hung in a windless spot. The DISC PENDANT 12V can be easily combined with other fixtures in the DISC concept, as well as the PUCK, HALO and other in-lite fixtures in Black or Dark Grey anodized aluminum.
Need help choosing compatible parts? Contact The LA Firm for project support.
