Recessed light - Ø 22mm/0.87"
Fixture DB-LED is small but fine. The subtle point of light is suitable for in staircases and terraces, for example.
The EASY-LOCK is included as standard with this fixture. The cable length to this fixture is 60cm.
TIP: Consider an extension cable.
The EASY-LOCK is included as standard with this fixture. The cable length to this fixture is 60cm.
TIP: Consider an extension cable.
- Produces a warm white sparkling, bright light
- Designed for illuminating the edges of a driveway or deck
- Drive-over
Installation advice:
A DB-LED every 1½ to 2 meters

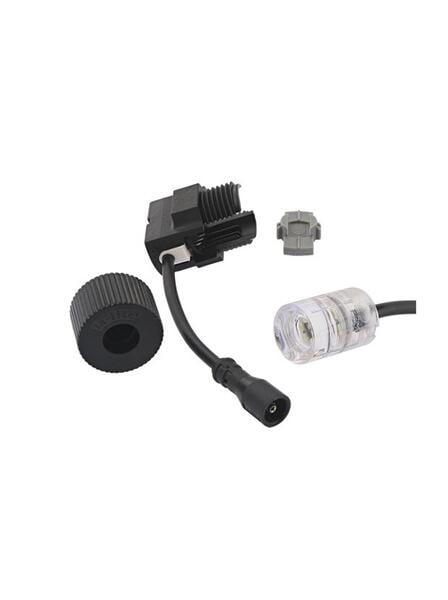

IN THE PACKAGE
INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
Product Details
The DB-LED fixture is small, but refined. The subtle point of light is also visible during the day and therefore suitable for use in, for example, stairs and decks. For a special effect, install several spotlights randomly in the path through your yard.
Specs
Art. nr.
10102402
Application
Driveway, Path, Stair
Mounting depth (inch)
1.4961
Recessed depth (mm)
38
CRI
94
Diameter (inch)
0.8661
Diameter (mm)
22
EAN code
8717051002366
Energy label
G
Height (inch)
1.2598
Height (mm)
32
IP class
67
Light direction
Boven
Light type
Accent
Efficiency (Lumen/Watt)
50
Net luminous flux (Lumen)
25
Order unit
6
Power [W]
0.5
Processing
Concrete, NaturalStone, Wood
Article group
Integrated
Voltage
12V
VA value
0.5
Color temperature
2850
Luminous intensity [Cd]
6.4
Power factor
1
Installation instructions
Installation advice
This ground light is installed in a 22.4 mm diameter hole in wood (wood drill) or stone (cooled diamond-tipped drill). A dealer or gardener can do this for you. Note: to avoid problems with the electronics, only install the fixture in a hole that has been drilled straight and in the correct size. Watch the instructional videos on the installation tips page for information on installing the in-lite system.
