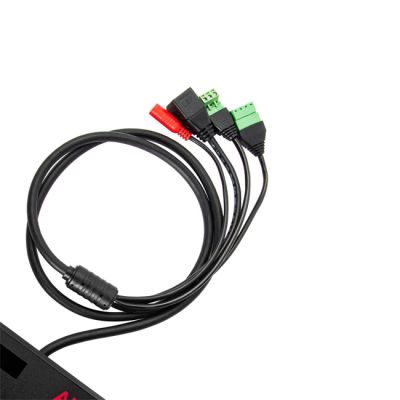

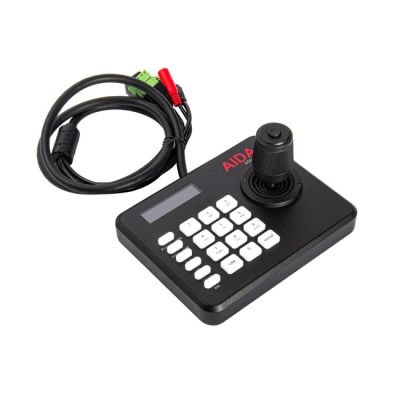

Add this simplified Compact VISCA Serial & IP PTZ Camera Controller from AIDA Imaging to your PTZ camera production for fast camera selection and easy usage. Using the built-in breakout cable, the CCU-MINI can connect to your cameras using the VISCA serial protocol or control IP cameras over a LAN. The breakout cable features a 12 VDC female power input, an RJ45 Ethernet cable, an RS-485 terminal block serial cable, and an RJ45 RS-422 serial cable.

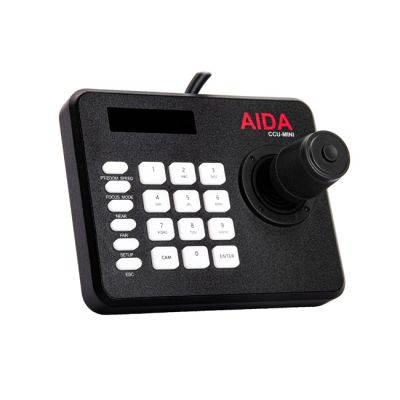

Using the 3-way joystick, you can control the pan, tilt, and zoom operations for up to seven cameras. You can select cameras using a single button press, and there are additional buttons for control of focus, pan/tilt speed, and setup operations. A large LCD shows you the status of your camera controls.
Features
Joystick allows simultaneous control over pan, tilt, and zoom
Built-in breakout cable with IP, RS-485, RS-422 communication interfaces and DC power input
VISCA and IP control protocols
LED display for status
Can operate up to seven cameras
Camera select, focus, speed, and menu buttons
Number of Supported Cameras
7 Channels
Control I/O
1x RJ45 (RS-422)
1x RJ45 (IP Control)
1x Block (RS-485)
Controls
12x Camera Selection Buttons
4x Multifunction Buttons
1x Focus Button
1x Camera Movement Speed Button
1x Menu Button
1x Pan/Tilt, Zoom Joystick
Show More
PoE Support
Yes
Security Lock Support
No
General
Number of Supported Cameras
7 Channels
Supported Control Protocols
IP
RS-232
RS-422
VISCA
Control I/O
1x RJ45 (RS-422)
1x RJ45 (IP Control)
1x Block (RS-485)
Controls
12x Camera Selection Buttons
4x Multifunction Buttons
1x Focus Button
1x Camera Movement Speed Button
1x Menu Button
1x Pan/Tilt, Zoom Joystick
Power
PoE Support
Yes
Power Connectors
1x Barrel / Coaxial
Input Power
12 VDC
Physical
Security Lock Support
No
Dimensions
6.75 x 5.5 x 4" / 171.45 x 139.7 x 101.6 mm
Weight
2 lb / 907 g
Packaging Info
Package Weight
3.12 lb
Box Dimensions (LxWxH)
9.4 x 8.3 x 6.5"
