Description

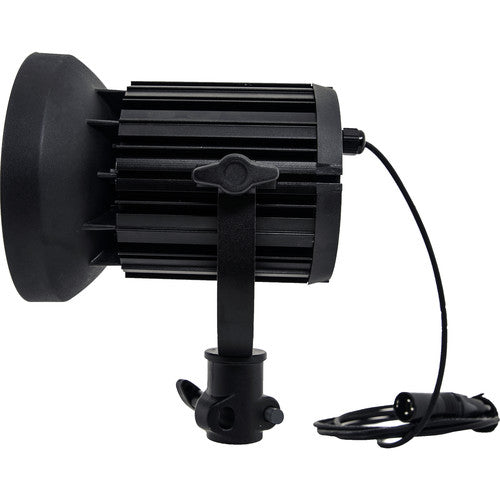

BB&S Lighting Compact Beamlight Overview
The Compact Beamlight from BB&S Lighting is versatile, lightweight, compact, and has convenient power options. The Beamlight outputs an impressive 4000 lumens while drawing just 40W with a CRI of 97. The light has a focused 14° beam with a hard-shadow rendering that fades from 100% at the center to 50% at the edges, making it a good lamp for mixing and overlapping with other lights while eliminating harsh glare. The BB&S proprietary collimator Fresnel lens produces an intense, narrow beam with minimal spill, making the Beamlight a good choice for focused selective lighting applications.
Compact, lightweight, and DMX network compatible, it is well-suited to light grid usage. Fanless cooling means silent operation for stage- and studio-based applications.
DMX Compatible
Control operation and dimming for up to four lamps via DMX/RDM protocols with the 4-way controller, available separately
Optional Battery Operation
Work on location using Gold mount or V-mount batteries with the optional battery adapter plate, available separately
Light Fixture
Lumens
4000
Photometrics
14° at 3000K:
10,388 fc / 111,825 Lux at 3.3' / 1 m*
416 fc / 4473 Lux at 16.4' / 5 m
104 fc / 1118 Lux at 32.81' / 10 m
*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature
3000K
Color Accuracy Standard
CRI 97
Cooling System
Passive
Lens
Lens Type
Fresnel
Lens Diameter
5.5" / 139.7 mm
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
14.4 VDC
Power Pass-Thru
No
Power Consumption
41 W Maximum
