Description
Includes: IP PowerKon Power Cord, Omega Bracket Control: 3-pin DMX, 5-pin DMX

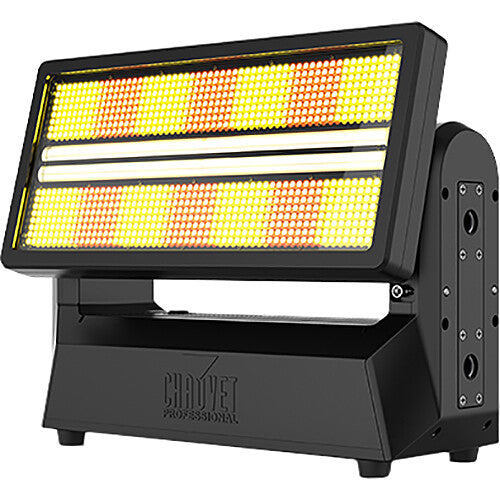

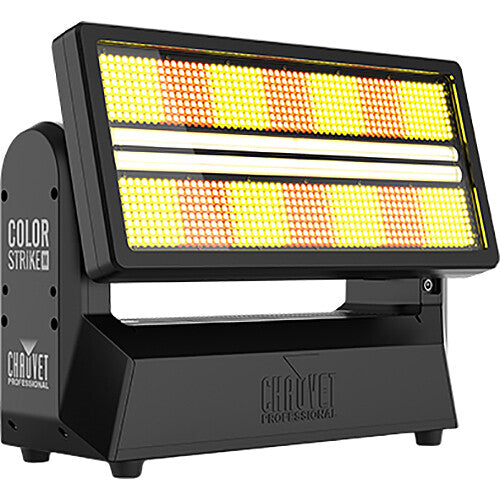

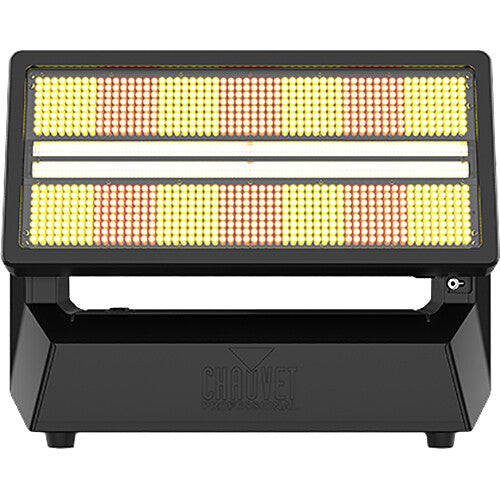

The Color STRIKE M Motorized Strobe/Wash from CHAUVET Professional is an IP65-rated motorized strobe/wash equipped with two ultrabright white light tubes at the center of a pixel-mappable face with 14 controllable RGB LEDs and 28 control sections of the white strobe LEDs. The fixture performs smooth 16-bit fades and has four selectable dimming curves and a flicker-free output with multiple PWM (Pulse Width Modulation) frequencies and RDM (Remote Device Management) for enhanced flexibility. The IP65 casing protects the fixture from adverse weather and other environmental factors. Two omega-bracket attachments enable you to mount the fixture in horizontal or vertical orientations with relative ease.
Key Features at a Glance
High-power, 180° tilting hybrid strobe/wash with IP65 rating for all-weather use
14 controllable sections of RGB LEDs and 28 sections of control of the white strobe LEDs
Multiple mounting locations and repositionable yoke with 1/4 turn adapters for creative and convenient rigging options in vertical and horizontal orientations
Multitude of built-in effect macros with control parameters
DMX, ArtNet, and sACN control capability
16-bit dimming control for smooth, perfect fades
Easy to use OLED display
Rugged design for years of rough use in the most extreme conditions
Adjustable Pulse Width Modulation (PWM) and RDM (Remote Device Management) for added flexibility
USB port for fixture software updates
Built-in alignment pins to insure perfectly straight linear arrays
Fixture Type
Linear/Bar Light
Light Source
Color LED
Colors
Unspecified Colors
Beam Angle
98 x 57°
Control Protocols
DMX512, RDM, Art-Net, sACN
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
100 VAC, 60 Hz: 720 W / 7.14 A
120 VAC, 60 Hz: 740 W / 6.36 A
208 VAC, 60 Hz: 716 W / 2.35 A
230 VAC, 50 Hz: 696 W / 3.27 A
240 VAC, 50 Hz: 709 W / 3.02 A
Show More
Mounting
Omega Bracket
Light
Fixture Type
Linear/Bar Light
Light Source
Color LED
Expected Lamp Life
50,000 Hours
Colors
Unspecified Colors
Photometrics
98°:
147 fc / 1591 Lux at 16.4' / 5 m
Color Temperature
7757K
Lumen Output
71,620 Lumens
Beam Angle
98 x 57°
Field Angle
146 x 122°
Shutter / Strobe
Electronic
Dimming
Electronic with 4 Dimmer Modes
Performance
Operating Modes
Automatic, DMX, Program
Macros / Programs
Color Wash
Effects
Color Strobe
Strobe Rate
0 to 30 Hz
Gobos
No
Refresh Rate
600 Hz to 25,000 Hz (Adjustable)
Movement
Tilt Ranges
180°
Control
Control Protocols
DMX512, RDM, Art-Net, sACN
DMX Channel Modes
8 / 11 / 13 / 24 / 30 / 47 / 74 / 97-Channel
Display / Controls
OLED Touchscreen
Remote Control
Yes
Mobile App Compatible
No

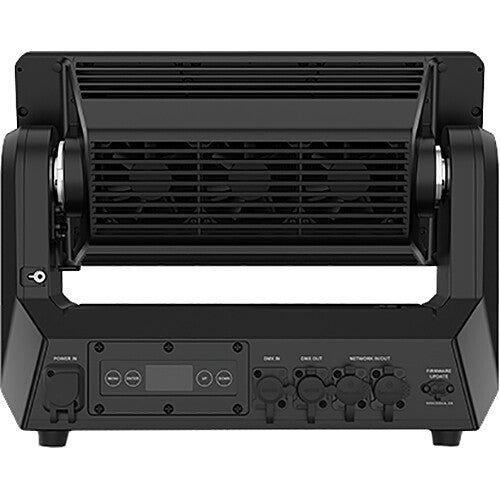

Connectivity
Inputs/Outputs
1 x XLR 5-Pin DMX/Data Input/Output
1 x etherCON/RJ45 Data Input/Output
Wireless
No
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x Seetronic IP-Rated
Output: 1x Edison
Power / Current Consumption
100 VAC, 60 Hz: 720 W / 7.14 A
120 VAC, 60 Hz: 740 W / 6.36 A
208 VAC, 60 Hz: 716 W / 2.35 A
230 VAC, 50 Hz: 696 W / 3.27 A
240 VAC, 50 Hz: 709 W / 3.02 A
Environmental
Environmental Protection
Weather-Resistant (IP65)
Operating Temperature
-4 to 113°F / -20 to 45°C
Physical
Mounting
Omega Bracket
Included Accessories
1x Power Supply
Exterior Color
Black
Max Housing Temperature
113°F / 45°C
Cooling
Convection
Certifications
CE, MET, FCC
Dimensions
16 x 12.3 x 6.9" / 407 x 312.5 x 175.4 mm
Weight
26.7 lb / 12.1 kg
