Description
Includes: Includes: IP PowerKon Power Cord, Gel Frame Control: 5-pin DMX

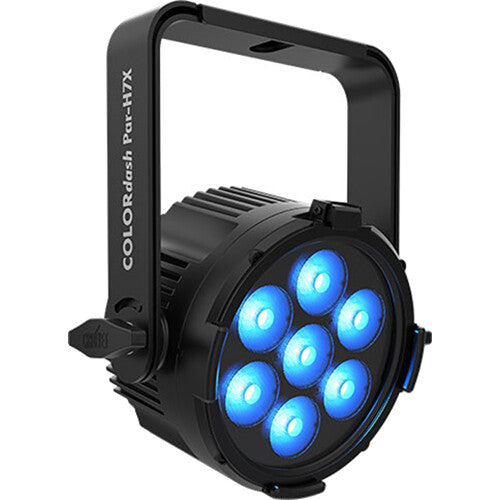

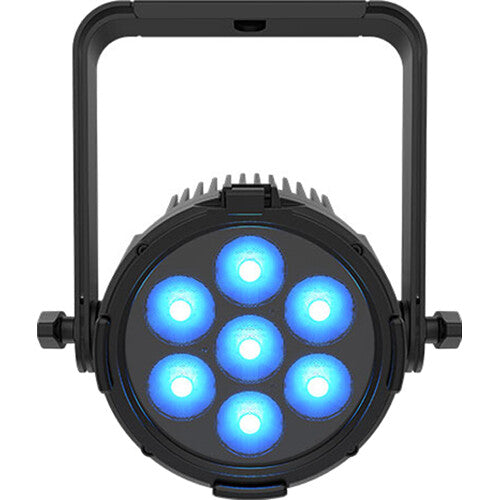

The COLORdash Par H7X from CHAUVET Professional presents a portable lighting solution weighing merely six pounds yet offering a comprehensive range of colors from subtle to vibrant with remarkable precision. It can be easily mounted on a rig or placed on the floor and employed for live events or on-camera productions. It ensures smooth 16-bit fades and provides four selectable dimming curves for optimal control. With its flicker-free output and multiple PWM frequencies, it delivers consistent performance.
Whether you desire a bold hot pink, a delicate pastel shade, a precisely calibrated Kelvin color temperature, or intense strobe effects, this fixture has you covered. Featuring RDM for remote selection of its DMX control protocol personalities and an OLED display for easy access to its onboard menu, the H7X is a robust workhorse built to endure the demands of real-world use while providing convenient operation and outstanding performance.
Key Features at a Glance
Rugged RGBWA-UV LED wash for events
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
RDM (Remote Device Management) for added flexibility
Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
Easy to read OLED display with password protection and touchscreen interface
Advanced optics provide exceptional color mixing and high efficiency
Double-bracketed yoke with omega bracket doubles as floor stand
Key Specs
Fixture Type
PAR
Light Source
7x Color/UV LED - 84 W / 505 mA
Colors
Unspecified Colors (Wash)
Beam Angle
22.7°
Control Protocols
DMX512, RDM
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
100 VAC, 60 Hz: 71 W / 0.7 A
120 VAC, 60 Hz: 70 W / 0.59 A
208 VAC, 60 Hz: 67 W / 0.34 A
230 VAC, 50 Hz: 67 W / 0.31 A
240 VAC, 50 Hz: 66 W / 0.3 A
Show More
Mounting
Omega Bracket, Yoke-5/8" Receiver
Light
Fixture Type
PAR
Light Source
7x Color/UV LED - 84 W / 505 mA
Expected Lamp Life
50,000 Hours
Colors
Unspecified Colors (Wash)
Photometrics
22.7°:
48 fc / 522 Lux at 16.4' / 5 m
Color Temperature
2800 to 10,000K
Lumen Output
2738 Lumens (Output)
Beam Angle
22.7°
Field Angle
37.6°
Shutter / Strobe
Electronic
Dimming
Electronic with 4 Dimmer Modes
Performance
Operating Modes
Automatic, Color Dimmer, DMX, Program
Macros / Programs
Color Wash
Effects
Color Strobe (Variable Speed)
Strobe Rate
0 to 20 Hz
Gobos
No
Refresh Rate
600 Hz to 25,000 Hz (Adjustable)
Control
Control Protocols
DMX512, RDM
DMX Channel Modes
5 Mode(s):
6 / 8 / 9 / 13 / 14-Channel
Display / Controls
OLED Touchscreen
Remote Control
Yes
Mobile App Compatible
No
Connectivity
Inputs/Outputs
1 x XLR 3-Pin DMX/Data Input/Output
1 x XLR 5-Pin DMX/Data Input/Output
Wireless
No
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated
Cord Length: 5' / 1.5 m
Fuse
T 2 A L 250 V
Power / Current Consumption
100 VAC, 60 Hz: 71 W / 0.7 A
120 VAC, 60 Hz: 70 W / 0.59 A
208 VAC, 60 Hz: 67 W / 0.34 A
230 VAC, 50 Hz: 67 W / 0.31 A
240 VAC, 50 Hz: 66 W / 0.3 A
Power Linking
16 Units at 100 VAC
20 Units at 120 VAC
34 Units at 208 VAC
38 Units at 230 VAC
39 Units at 240 VAC
Total Current: 12 A
Environmental
Environmental Protection
Weather-Resistant (IP65)
Operating Temperature
-4 to 113°F / -20 to 45°C
Physical
Mounting
Omega Bracket, Yoke-5/8" Receiver
Included Accessories
1x Power Supply
1x Gel
1x Gel Frame
Exterior Color
Black
Max Housing Temperature
113°F / 45°C
Cooling
Convection
Certifications
CE, MET, UKCA, FCC
Dimensions
10.2 x 9.4 x 4.6" / 258 x 240 x 116 mm
Weight
6 lb / 2.7 kg
