Description
Includes: PowerCON Power Cord Control: 3-pin DMX, 5-pin DMX

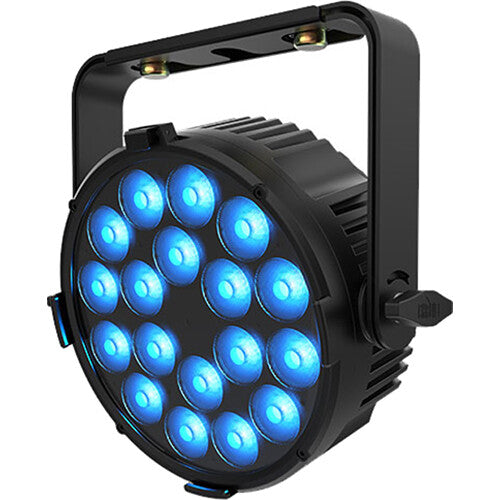

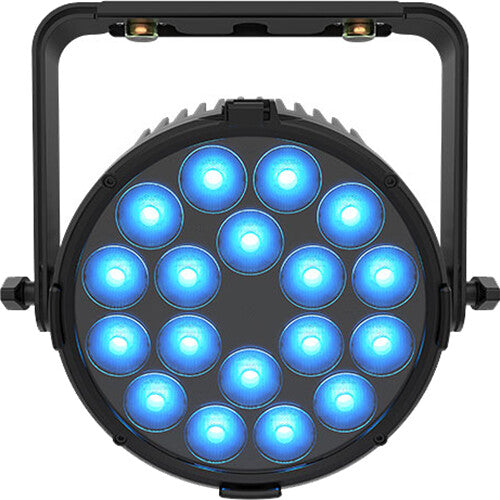

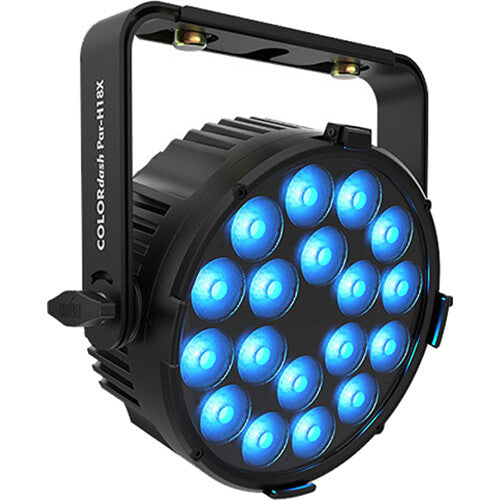

Lighting designers in search of a quality wash light will be impressed with the CHAUVET PROFESSIONAL COLORdash PAR H18X, a hex-colored LED wash light designed to produce color washes with variations of white and smooth color mixing, devoid of multicolored shadows. Featuring 18 RGBWA+UV LEDs (red, green, blue, white, amber, and ultraviolet) and an 23.6° beam angle, it is well suited for venue uplighting, dancefloor color washing, stage illumination, and more.
The COLORdash PAR H18X can be used as a standalone with dynamic effects including electronic dimming, color macros, variable strobe, built-in automated programs, and color-temperature presets. It can also be controlled via DMX or used in a primary/secondary configuration to coordinate multiple fixtures without the need for a controller. The fixture comes equipped with an LED display, an autoranging power supply, and a double-bracket yoke, which can be used for conventional mounting to a truss or as a variable-angle floor stand. The COLORdash PAR H18X ships with a gel-frame holder.
Key Features
Rugged RGBWA-UV LED wash for events
Adjustable PWM (pulse width modulation) to avoid flickering on camera
RDM (Remote Device Management) for added flexibility
Selectable smooth dimming curves to eliminate flicker and choppiness in fades
Easy to read OLED display with password protection and touchscreen interface
Advanced optics provide exceptional color mixing and high efficiency
Double-bracketed yoke with omega bracket doubles as floor stand
Key Specs
Fixture Type
PAR
Light Source
18x Color LED - 150 W / 550 mA
Colors
Red, Green, Blue, White, Amber, Ultraviolet
Beam Angle
23.6°
Control Protocols
DMX512
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 155 W / 1.3 A
208 VAC, 50 Hz: 153 W / 0.77 A
230 VAC, 50 Hz: 152 W / 0.7 A
Mounting
Omega Bracket
Light
Fixture Type
PAR
Light Source
18x Color LED - 150 W / 550 mA
Expected Lamp Life
50,000 Hours
Colors
Red, Green, Blue, White, Amber, Ultraviolet
Photometrics
112 fc / 1207 Lux at 16.4' / 5 m
Color Temperature
2800 to 10,000K
Lumen Output
5736 Lumens
Beam Angle
23.6°
Field Angle
38.6°
Shutter / Strobe
Electronic
Zoom Adjustment
No
Dimming
Electronic, 0 to 100%
Performance
Operating Modes
DMX
Macros / Programs
Color Mixing
Color Temperature
Auto-Program
Color Fade
Effects
Strobe
Strobe Rate
0 to 20 Hz
Gobos
No
Control
Control Protocols
DMX512
DMX Channel Modes
5 Mode(s):
6 / 8 / 9 / 13 / 14-Channel
Display / Controls
OLED / 4-Button
Remote Control
No
Mobile App Compatible
No
Connectivity

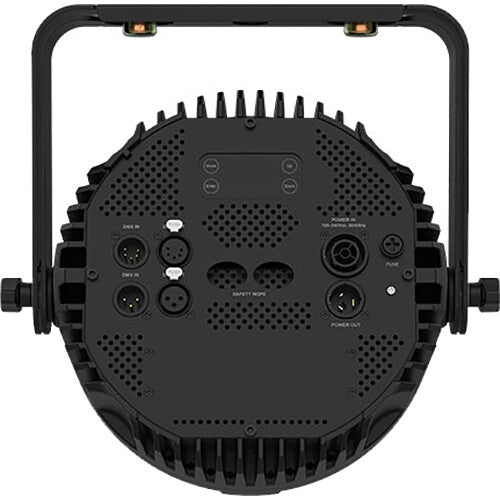

Inputs/Outputs
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: powerCON
Output: powerCON
Plug Type: NEMA 5-15
Cord Length: 5' / 1.5 m
Power / Current Consumption
120 VAC, 60 Hz: 155 W / 1.3 A
208 VAC, 50 Hz: 153 W / 0.77 A
230 VAC, 50 Hz: 152 W / 0.7 A
Power Linking
9 Units at 120 VAC
15 Units at 208 VAC
17 Units at 230 VAC
Environmental
Environmental Protection
Dust-Resistant (IP20)
Physical
Mounting
Omega Bracket
Included Accessories
1x Power Cable
1x Gel Frame
Duty Cycle
No
Exterior Color
Black
Cooling
Convection
Certifications
CE, MET, FCC, UKCA
Dimensions
12.45 x 8.68 x 4.38" / 31.62 x 22.05 x 11.13 cm
Weight
10.4 lb / 4.7 kg
Packaging Info
Package Weight
13.01 lb
Box Dimensions (LxWxH)
14.4 x 14.3 x 6.6"
