Description
Includes: Includes: IP PowerKon Power Cord, Gel Frame Control: 5-pin DMX

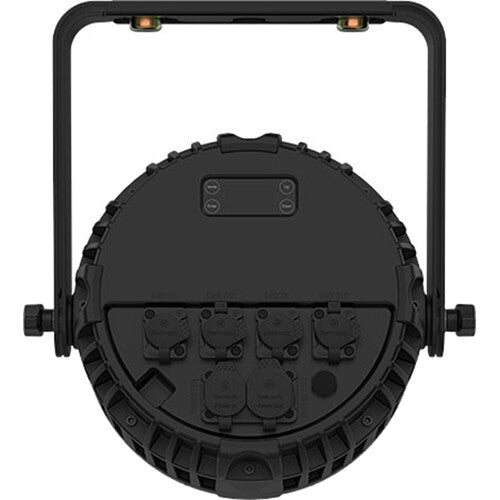

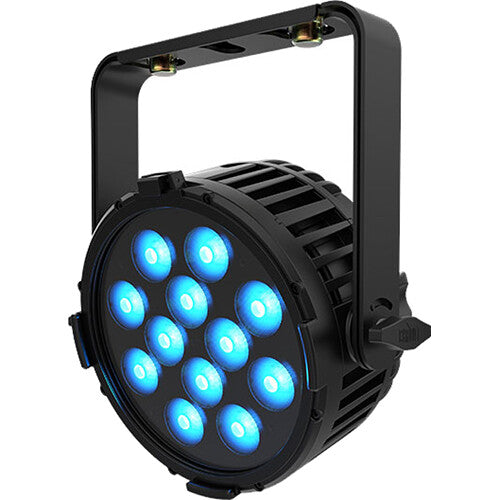

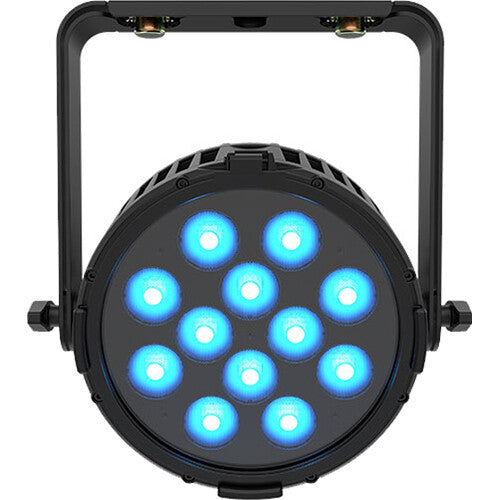

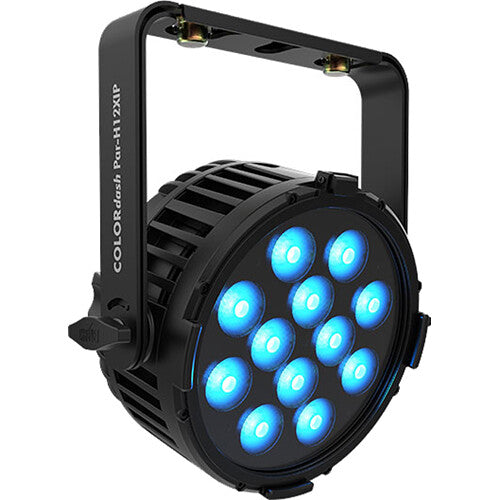

Lighting designers looking for a compact, yet powerful LED Par light will be impressed with the Chauvet Professional COLORdash PAR H12X IP, an IP65-rated RGBAW+UV LED wash light that delivers soft fields of saturated colors in any weather condition, well suited for touring companies, rental houses, festivals, clubs, bars, cruise ships, and houses of worship.
The fixture features a user-friendly OLED full-text display with password protection and touchscreen interface. The IP65-rated connection for power and DMX allows for use during inclement weather and outdoor settings. The attached double-bracketed yoke can be used as a floor stand. A gel-frame holder, Omega bracket, and Seetronic PowerCON power cable are included.
At a Glance
Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed
At home in any weather conditions with IP rated power and DMX connections
Adjustable PWM (pulse width modulation) to avoid flickering on camera
RDM (Remote Device Management) for added flexibility
Selectable smooth dimming curves to eliminate flicker and choppiness in fades
Easy-to-read OLED display with password protection and touchscreen interface
Advanced optics provide exceptional color mixing and high efficiency
Double-bracketed yoke with omega bracket doubles as a floor stand
Fixture Type
PAR
Light Source
12x Color/UV LED - 120 W / 512 mA
Colors
Red, Green, Blue, White, Amber, Ultraviolet
Beam Angle
22.2°
Control Protocols
DMX512
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 126 W / 1.04 A
208 VAC, 60 Hz: 123 W / 0.6 A
230 VAC, 50 Hz: 123 W / 0.55 A
Mounting
Dual/Scissor Yoke
Light
Fixture Type
PAR
Light Source
12x Color/UV LED - 120 W / 512 mA
Expected Lamp Life
50,000 Hours
Colors
Red, Green, Blue, White, Amber, Ultraviolet
Photometrics
98 fc / 1052 Lux at 16.4' / 5 m
Lumen Output
4532 Lumens
Beam Angle
22.2°
Field Angle
36.9°
Shutter / Strobe
Electronic
Dimming
Electronic, 0 to 100% with 4 Dimmer Modes
Performance
Operating Modes
Automatic, DMX, Primary/Secondary
Macros / Programs
Color Mixing
Auto-Program
Color Fade
Effects
Strobe
Strobe Rate
0 to 20 Hz
Gobos
No
Control
Control Protocols
DMX512
DMX Channel Modes
5 Mode(s):
6 / 8 / 9 / 13 / 14-Channel
Display / Controls
OLED / 4-Button
Remote Control
No
Mobile App Compatible
No
Connectivity
Inputs/Outputs
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated
Plug Type: NEMA 5-15
Cord Length: 5' / 1.5 m
Power / Current Consumption
120 VAC, 60 Hz: 126 W / 1.04 A
208 VAC, 60 Hz: 123 W / 0.6 A
230 VAC, 50 Hz: 123 W / 0.55 A
Power Linking
11 Units at 120 VAC
19 Units at 208 VAC
21 Units at 230 VAC
Environmental
Environmental Protection
Dust/Water-Resistant (IP65)
Physical
Mounting
Dual/Scissor Yoke
Included Accessories
1x Power Cable
Duty Cycle
No
Exterior Color
Black
Cooling
Convection
Dimensions
12 x 9.8 x 9.1" / 30.5 x 24.9 x 23.1 cm
Weight
11.8 lb / 5.4 kg
Packaging Info
Package Weight
14.545 lb
Box Dimensions (LxWxH)
15.6 x 13.4 x 7.2"
