Description
Includes: Includes: IP PowerKon Power Cord, Glare Shield, 2pcs Omega Bracket Control: 5-pin DMX, Artnet, sACN

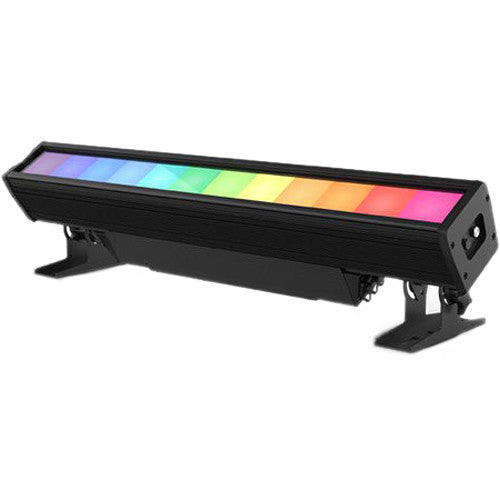

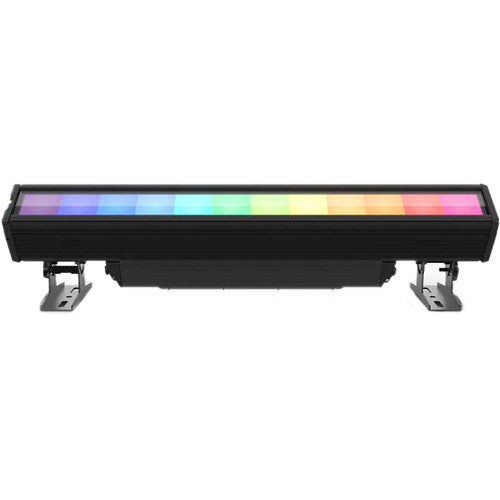

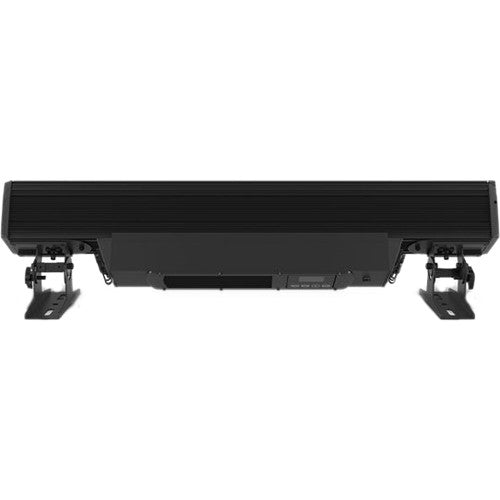

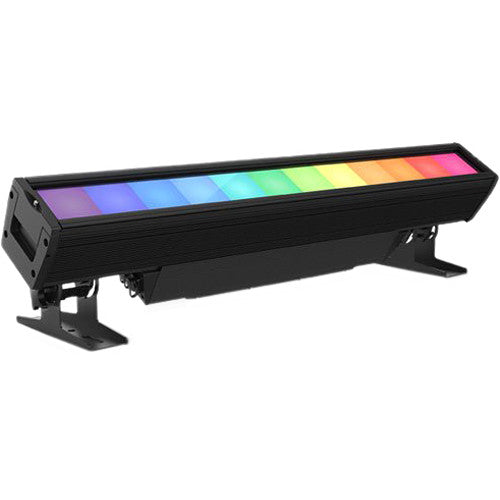

Lighting designers looking for a linear fixture that goes beyond standard wash effects will appreciate the Chauvet Professional COLORado Solo Batten, a single homogenized wash with smooth color-mixing, providing the appearance of a bright single bar of light without round eyes or pixels.
This versatile fixture is engineered with 12 square sections that can be controlled individually. They appear seamlessly together without separation and create an endless variety of color control and pixel mapping effects. The COLORado Solo Batten complements the COLORado Solo PAR. It is IP65 rated and equipped with DMX and RDM protocols.
RGBAW LED batten-style fixture with seamless end-to-end color for wash or pixel mapping
Completely homogenized color with no separation or dimmed lens corners
All-environment operation with IP-rated power, DMX, and Ethernet connections
Color-temperature presets, from 1800 to 8000K
Selectable smooth dimming curves for programming versatility
Built for touring, live event, television, and theatrical productions
Large, easy-to-navigate display with password protection
Key Specs
Fixture Type
Linear/Bar Light
Light Source
144x Color LED - 3 W / 612
Colors
Red, Green, Blue, Amber, White
Pixel Configuration
12x Zone
Beam Angle
37° (with Filter)
20° (without Filter)
Control Protocols
DMX512, RDM, Art-Net, sACN
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 336 W / 3.05 A
208 VAC, 60 Hz: 336 W / 1.61 A
230 VAC, 50 Hz: 339 W / 1.6 A
Mounting
Floor Base, Mounting Bracket
Light
Fixture Type
Linear/Bar Light
Light Source
144x Color LED - 3 W / 612
Expected Lamp Life
50,000 Hours
Colors
Red, Green, Blue, Amber, White
Pixel Configuration
12x Zone
Photometrics
20°:
360 fc / 3870 Lux at 16.4' / 5 m
37°:
114 fc / 1230 Lux at 16.4' / 5 m
Color Temperature
1800 to 8000K
Lumen Output
6968 Lumens
Beam Angle
37° (with Filter)
20° (without Filter)
Field Angle
63° (with Filter)
34° (without Filter)
Shutter / Strobe
Electronic
Focus
Manual
Zoom Adjustment
No
Dimming
Electronic, 0 to 100% with 5 Dimmer Modes
Performance
Operating Modes
DMX, Primary/Secondary
Macros / Programs
Auto-Program
Color Macro
Effects
Strobe
Strobe Rate
0 to 25 Hz
Gobos
No
Control
Control Protocols
DMX512, RDM, Art-Net, sACN
DMX Channel Modes
37 Mode(s)
Remote Control
No
Connectivity
Inputs/Outputs
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
1 x RJ45 Data Input
1 x RJ45 Data Output
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated
Plug Type: NEMA 5-15
Cord Length: 5' / 1.5 m
Power / Current Consumption
120 VAC, 60 Hz: 336 W / 3.05 A
208 VAC, 60 Hz: 336 W / 1.61 A
230 VAC, 50 Hz: 339 W / 1.6 A
Power Linking
4 Units at 120 VAC
8 Units at 208 VAC
8 Units at 230 VAC
Environmental
Environmental Protection
Dust/Water-Resistant (IP65)
Operating Temperature
-4 to 113°F / -20 to 45°C
Physical
Mounting
Floor Base, Mounting Bracket
Duty Cycle
No
Exterior Color
Black
Cooling
Convection
Certifications
CE, FCC, MET
Dimensions
39.86 x 9.84 x 9.06" / 1012.44 x 249.94 x 230.12 mm
Weight
41.9 lb / 19 kg
