Description
Includes: Includes: IP PowerKon Power Cord, 2 pcs Omega Bracket, Control: 5-pin DMX, Artnet, sACN

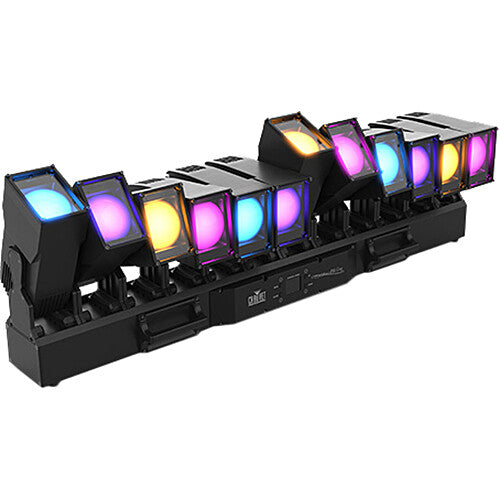

The CHAUVET PROFESSIONAL COLORado PXL Curve 12 LED Light is a fully pixel-mappable motorized IP65-rated RGBW LED batten with individual control of zoom, tilt, and color across twelve independent heads. Basic and advanced operating modes and an extensive library of pre-built effects that includes virtual gobos, movement macros, and foreground/background color control make creating complex and volumetric looks easy. Seamless edge-to-edge mounting maintains pixel pitch between fixtures, helping to make runway effects consistent. The COLORado PXL Curve 12 is compatible with DMX, sACN, Art-Net, Kling-Net, and RDM.
Fixture Type
Linear/Bar Light / Moving Head
Light Source
12x Color LED - 45 W / 2.96 A
Colors
Blue, Green, Red, White
Pixel Configuration
12x Zone
Beam Angle
5.7 to 26.8°
Control Protocols
DMX512, RDM, Art-Net, Kling-Net, sACN
AC Input Power
120 to 240 VAC, 50/60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 790 W
208 VAC, 60 Hz: 772 W
230 VAC, 50 Hz: 768 W
Mounting
Omega Bracket
Light
Fixture Type
Linear/Bar Light / Moving Head
Light Source
12x Color LED - 45 W / 2.96 A
Expected Lamp Life
50,000 Hours
Colors
Blue, Green, Red, White
Pixel Configuration
12x Zone
Photometrics
5.7°:
3597 fc / 38,727 Lux at 16.4' / 5 m
26.8°:
104 fc / 1120 Lux at 0' / 5 mm
Color Temperature
2700 to 8000K
Lumen Output
5807 Lumens
Beam Angle
5.7 to 26.8°
Field Angle
9 to 33.9°
Shutter / Strobe
Electronic
Iris
No
Zoom Adjustment
Motorized, 5.7 to 36.3°
Dimming
Electronic
Performance
Operating Modes
DMX
Macros / Programs
Auto-Program
Effects
Strobe
Strobe Rate
0 to 20 Hz
Gobos
No
Movement
Tilt Ranges
200° / 180°
Control
Control Protocols
DMX512, RDM, Art-Net, Kling-Net, sACN
DMX Channel Modes
5 Mode(s):
20 / 53 / 101 / 155 / 179-Channel
Remote Control
No
Mobile App Compatible
No
Connectivity
Inputs/Outputs
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
1 x etherCON/RJ45 Network Input
1 x etherCON/RJ45 Network Output
Wireless
No
Power
AC Input Power
120 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated
Plug Type: NEMA 5-15
Cord Length: 5' / 1.5 m
Fuse
F 12 A 250 V
Power / Current Consumption
120 VAC, 60 Hz: 790 W
208 VAC, 60 Hz: 772 W
230 VAC, 50 Hz: 768 W
Power Linking
1 Units at 120 VAC
3 Units at 208 VAC
3 Units at 230 VAC
Environmental
Environmental Protection
Dust/Water-Resistant (IP65)
Operating Temperature
14 to 113°F / -10 to 45°C
Physical
Mounting
Omega Bracket
Included Accessories
1x Power Cable
Duty Cycle
No
Exterior Color
Black
Cooling
Fan
Certifications
CE, MET, UKCA, FCC
Dimensions
39.49 x 12.76 x 6.65" / 100.3 x 32.41 x 16.89 cm
Weight
76 lb / 34.5 kg
