Description
Includes: Includes: IP PowerKon Power Cord, 2 pcs Omega Bracket, Control: 5-pin DMX, Artnet, sACN

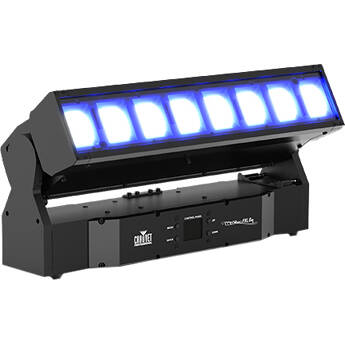

Lighting designers looking for a professional batten LED light fixture with individually addressable LEDs will be impressed by the CHAUVET PROFESSIONAL COLOrado PXL Bar 8, a rugged, tour-ready IP65 motorized batten-style LED wash-strip lighting fixture, well suited for touring, rental, and production indoors or out. The fixture is powered by eight individually addressed 45W RGBW LEDs, which eliminates the appearance of skittles and allows for remarkable pixel-mappable looks.
This bright, moving pixel bar also features seamless edge-to-edge mounting and includes virtual gobo and movement macros with separate foreground and background color control for more design options than ever before. The PXL Bar 8 can be mounted by way of slotted Omega brackets, which make it quick and easy to hang the fixture on truss. The COLORado PXL Bar 8 can also be positioned on the ground, which allows for a variety of different light angles.
At a Glance
IP65-rated motorized tilting batten with eight 45 W RGBW LEDs with a 3.5 to 47.3° zoom range; maintains pixel pitch between fixtures
Quiet and quick operation of 200° tilt
Quiet and quick operation of 2-section zoom
Fully pixel mappable
Several built-in effects, including virtual gobos and movement macros with foreground and background color control for easy pixel animation effects
DMX, SACN, Art-Net, and Kling-Net control for full flexibility
RDM enabled for remote addressing and troubleshooting
3.5 to 47.3° zoom range for variable beam sizes
TRUE1 compatible power input/output ports
IP65-rated 5-pin DMX and TCP/IP input/output ports
IP65-rated USB-C software upload port
Slotted Omega brackets for easy hanging on truss
Fixture Type
Moving Head
Light Source
8x Color LED - 45 W / 3 A
Colors
Red, Green, Blue, White
Pixel Configuration
8x Zone
Beam Angle
3.5 to 30.8°
Control Protocols
DMX512, RDM, Art-Net, Kling-Net, sACN
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 422 W / 3.5 A
208 VAC, 60 Hz: 409 W / 2 A
230 VAC, 50 Hz: 407 W / 1.8 A
Mounting
Floor Base, Omega Bracket
Light
Fixture Type
Moving Head
Light Source
8x Color LED - 45 W / 3 A
Expected Lamp Life
50,000 Hours
Colors
Red, Green, Blue, White
Pixel Configuration
8x Zone
Photometrics
4°:
1125 fc / 12,109 Lux at 16.4' / 5 m
47°:
52 fc / 563 Lux at 16.4' / 5 m
Color Temperature
6121K
Lumen Output
3503 Lumens
Beam Angle
3.5 to 30.8°
Field Angle
5.2 to 42.7°
Shutter / Strobe
Electronic
Iris
No
Zoom Adjustment
Motorized, 3.5 to 47.3°
Dimming
Electronic with 2 Dimmer Modes
Performance
Operating Modes
DMX
Macros / Programs
Color Macro
Effects
Strobe
Strobe Rate
0 to 20 Hz
Gobos
No
Color Accuracy Index
CRI: 64
Movement
Tilt Ranges
200°
Control
Control Protocols
DMX512, RDM, Art-Net, Kling-Net, sACN
DMX Channel Modes
10 Mode(s)
Remote Control
No
Mobile App Compatible
No
Connectivity
Inputs/Outputs
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
1 x RJ45 Data Input
1 x RJ45 Data Output
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated
Plug Type: Unterminated/Bare Wire
Cord Length: 5' / 1.5 m
Power / Current Consumption
120 VAC, 60 Hz: 422 W / 3.5 A
208 VAC, 60 Hz: 409 W / 2 A
230 VAC, 50 Hz: 407 W / 1.8 A
Power Linking
2 Units at 120 VAC
4 Units at 208 VAC
5 Units at 230 VAC
Environmental
Environmental Protection
Dust/Water-Resistant (IP65)
Operating Temperature
-4 to 113°F / -20 to 45°C
Physical
Mounting
Floor Base, Omega Bracket
Included Accessories
1x Power Cable
Duty Cycle
No
Exterior Color
Black
Cooling
Forced Convection
Certifications
CE, FCC, MET
Dimensions
19.7 x 10.8 x 5.5" / 50 x 27.4 x 14 cm
Weight
25.2 lb / 11.4 kg
