Description
Includes: Includes: IP PowerKon Power Cord, 2 pcs Omega Bracket, Control: 5-pin DMX, Artnet, Sacn

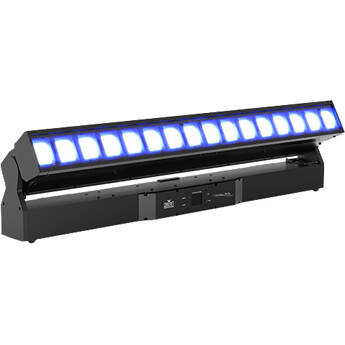

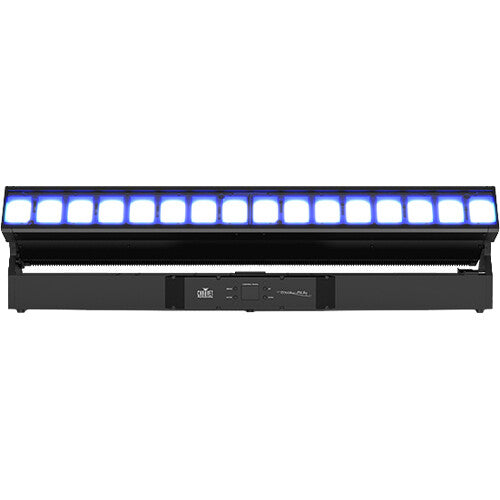

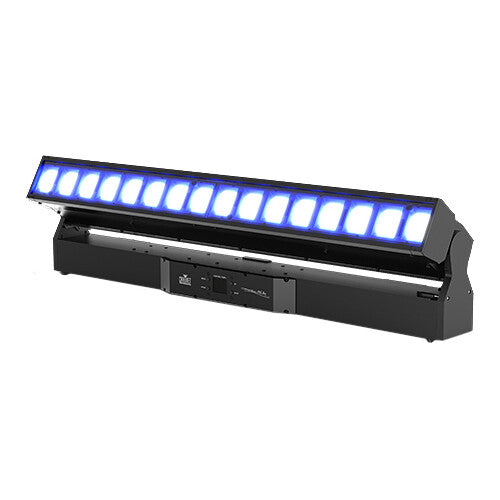

Lighting designers looking for a professional batten LED light fixture with individually addressable LEDs will be impressed by the Chauvet Professional COLOrado PXL Bar 16, a rugged, tour-ready IP65 motorized batten-style LED wash-strip lighting fixture, well suited for touring, rental, and production indoors or out. The fixture is powered by 16 individually addressed 45W RGBW LEDs, which eliminates the appearance of skittles and allows for remarkable pixel-mappable looks.
This bright, moving pixel bar also features seamless edge-to-edge mounting and includes virtual gobo and movement macros with separate foreground and background color control for more design options than ever before. The PXL Bar 16 can be mounted by way of slotted Omega brackets, making it quick and easy to hang the fixture on a truss. The COLORado PXL Bar 16 can also be positioned on the ground, allowing for a variety of different light angles.
At a Glance
IP65-rated motorized tilting batten with sixteen 45W RGBW LEDs with a 5.8 to 47.9° zoom range; maintains pixel pitch between fixtures
Quiet and quick operation of 200° tilt
Quiet and quick operation of 2-section zoom
Fully pixel mappable
Several built-in effects, including virtual gobos and movement macros with foreground and background color control for easy pixel animation effects
DMX, SACN, Art-Net, and Kling-Net control for full flexibility
RDM enabled for remote addressing and troubleshooting
5.8 to 47.9° zoom range for variable beam sizes
TRUE1 compatible power input/output ports
IP65-rated 5-pin DMX and TCP/IP input/output ports
IP65-rated USB-C software upload port
Slotted Omega brackets for easy hanging on truss
Photometrics
6°:
2547 fc / 27,415 Lux at 16.4' / 5 m
43°:
120 fc / 1294 Lux at 16.4' / 5 m
Color Temperature
6122K
Lumen Output
8959 Lumens
Beam Angle
5.8 to 30.4°
8.9 to 29.9° (Each Light)
Field Angle
8.9 to 42.2°
5.4 to 42.3° (Each Light)
Shutter / Strobe
Electronic
Iris
No
Zoom Adjustment
Motorized, 6 to 48°
Dimming
Electronic, 0 to 100% with 2 Dimmer Modes
Performance
Operating Modes
Automatic, Color Change, Color Dimmer, DMX, Primary/Secondary, Program
Macros / Programs
No
Effects
No
Strobe Rate
0 to 20 Hz
Gobos
No
Movement
Tilt Ranges
200° / 180°
Control
Control Protocols
DMX512, RDM, Kling-Net, sACN
DMX Channel Modes
12 Mode(s):
19 / 20 / 84 / 154 / 186 / 7 / 8 / 20 / 26 / 48 / 64 / 128-Channel
Display / Controls
LCD / 4-Button
Remote Control
No
Mobile App Compatible
No
Connectivity
Inputs/Outputs
2 x XLR 5-Pin DMX Input/Output
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated
Power / Current Consumption
120 VAC, 60 Hz: 790 W / 6.6 A
208 VAC, 60 Hz: 771 W / 3.82 A
230 VAC, 50 Hz: 768 W / 3.48 A
Power Linking
0 Units at 100 VAC
0 Units at 120 VAC
2 Units at 208 VAC
2 Units at 230 VAC
Environmental
Environmental Protection
Dust/Water-Resistant (IP65)
Operating Temperature
-4 to 113°F / -20 to 45°C
Physical
Mounting
Floor Base, Omega Bracket
Included Accessories
1x Power Cable
Duty Cycle
No
Exterior Color
Black
Certifications
CE, MET, FCC
Dimensions
39.37 x 10.75 x 5.47" / 100 x 27.3 x 13.89 cm
Weight
45.6 lb / 20.7 kg
