Description
Includes: Includes: IP PowerKon Power Cord, Wash Filter, Omega Bracket Control: 5-pin DMX, WDMX

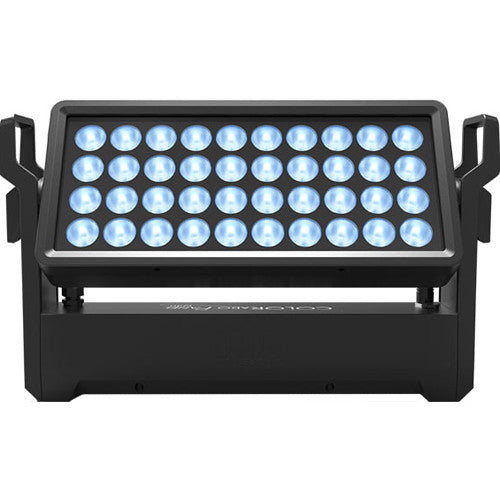

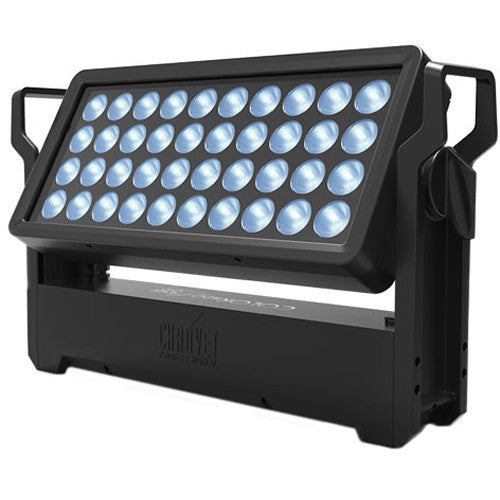

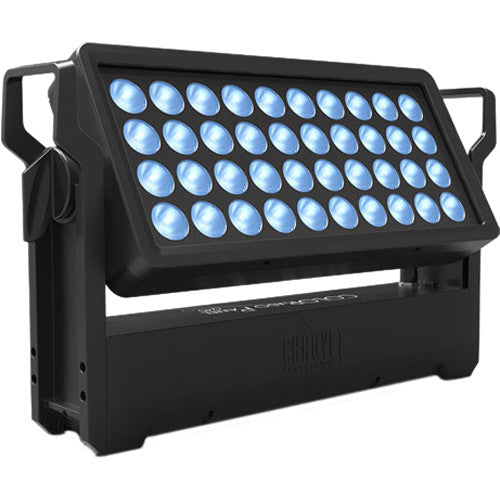

The COLORado Panel Q40 Rectangular Wash Light from CHAUVET PROFESSIONAL is an IP65-rated rectangular wash light that features 40 15W RGBW LEDs capable of edge-to-edge color mixing. A color temperature of 2800 to 10,000K is supported with a brightness of 16,589 lumens. This rugged indoor/outdoor unit can be manipulated through adjustable beam angles and includes a magnetic flood filter to produce a wide, even area wash. Its outdoor-rated power and data connectors allow for easy connections without propriety cabling. You can control it as you see fit with W-DMX and RDM management. An omega bracket is included for quick and easy truss/pipe mounting.
Rugged RGBW LED wash for events where indoor/outdoor flexibility is needed
Edge-to-edge color mixing
IP-rated power and DMX connections
Adjustable PWM (pulse width modulation) to avoid flickering on camera
W-DMX and RDM (remote device management) for added flexibility
Selectable, smooth dimming curves to eliminate flicker and choppiness in fades
Easy to read OLED display with password protection and touchscreen interface
Advanced optics provide exceptional color mixing and high efficiency
Optical
Light Source
40 x 15 W Quad-Color RGBW LEDs, 970 mA, 50,000 Hours Life Expectancy
Color Temperature
2800 to 10,000K
Installed Optics
15°
Beam Angle
Without Filter: 15°
With Filter: 24°
Field Angle
Without Filter: 28°
With Filter: 48°
Brightness
Lumens: 16,589
Lumens with Filter: 14,294
Illuminance
Without Filter: 9480 lux at 16.4' / 5 m
With Filter: 3045 lux at 16.4' / 5 m
PWM Frequency
600, 1200, 2000, 4000, 6000, and 25,000 Hz
Dynamic Effects
Tilt Range
0 to 150°
Dimmer
Electronic
Shutter/Strobe
Electronic
Strobe Rate
0 to 27 Hz
Color Mixing
Standalone
Color Temperature Presets
Yes
Dimming
Four Modes
Built-In Programs
Automated Programs
Connections
Power Connection Type
Edison (Local) Plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Data Connectors
5-Pin XLR IP65
Power Cord/Cable Length
5' / 1.5 m
Control
Control Protocol
DMX, W-DMX, RDM
DMX Channels
4, 7, 11, 16 or 22
DMX Personalities
5 Personalities (4-Channel, 7-Channel, 11-Channel, 16-Channel, 23-Channel)
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking
2 units at 120 V
4 units at 208 V
5 units at 230 V
Power and Current
570 W, 4.69 A at 120 V, 60 Hz
560 W, 2.71 A at 208 V, 60 Hz
560 W, 2.44 A at 230 V, 50 Hz
Certifications
Certifications
CE, MET
IP Rating
IP65, Outdoor/Wet, with Pressure-Equalizing M12 GORE Valve
Ambient Temperature Range
-4 to 113°F / -20 to 45°C
Physical
Exterior Color
Black
Housing Material
Aluminum Alloy, Aluminum Die-Cast
Filter Size
16.75 x 8" (425.45 x 203.2 mm)
Dimensions
20.27 x 7.71 x 11.96" (515 x 196 x 304 mm)
Weight
28.2 lb / 12.8 kg
