Description
Includes: Includes: IP PowerKon Power Cord, Floor Bracket, Glare Shield Control: 5-pin DMX, Artnet, sACN

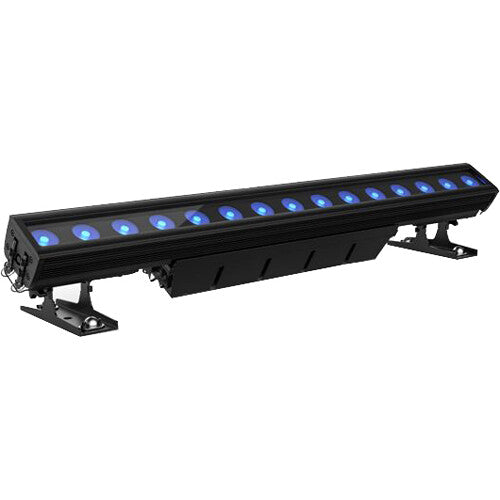

Lighting designers looking for a professional batten LED light fixture with individually addressable LEDs will be impressed by the Chauvet Professional COLOrado Batten Q15, a rugged, tour-ready IP65 batten-style LED wash-strip lighting fixture, well suited for touring, rental, and production indoors or out. The fixture is powered by 15 individually addressed 20W RGBWA LEDs, which eliminates the appearance of skittles and allows for remarkable pixel-mappable looks.
The fixture is capable of some serious output with selectable smooth dimming curves, convenient color temperature presets and an extraordinary reach with a native 16° beam angle. An included wall wash filter creates a 16 by 43° beam spread for guaranteed smoothness. The Q15 can be mounted by way of adjustable trunnions with ¼ turn adaptors for the Omega Bracket, innovative end-cap, or back plate mounting for seamless row alignment, icicles, and floor mounting. The fixture also includes a stowable glare shield.
Quad-Color RGBW LED Batten for touring, rental, and production, indoors or out
All environment operation with IP rated power and DMX connections
Remarkable end-cap and back plate mounting options
Color temperature presets, from 1800 to 8000K
Selectable smooth dimming curves for programming versatility
Built for touring, live events, television, and theatrical productions
Large, easy to navigate display with password protection
Key Specs
Fixture Type
Linear/Bar Light
Light Source
15x Color LED - 20 W / 800 mA
Colors
Red, Green, Blue, White
Pixel Configuration
15x Zone
Beam Angle
15.5° (without Filter)
41.9° (with Filter)
14.7° (without Filter)
15.3° (with Filter)
Show More
Control Protocols
DMX512, RDM
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 194 W / 1.6 A
208 VAC, 60 Hz: 197 W / 0.95 A
230 VAC, 50 Hz: 197 W / 0.86 A
Mounting
Floor Base, Omega Bracket
Light
Fixture Type
Linear/Bar Light
Light Source
15x Color LED - 20 W / 800 mA
Expected Lamp Life
50,000 Hours
Colors
Red, Green, Blue, White
Pixel Configuration
15x Zone
Photometrics
223 fc / 2399 Lux at 16.4' / 5 m
61 fc / 653 Lux at 16.4' / 5 m
Color Temperature
1800 to 8000K
Lumen Output
6324 Lumens (Output)
5547 Lumens
Beam Angle
15.5° (without Filter)
41.9° (with Filter)
14.7° (without Filter)
15.3° (with Filter)
Field Angle
28.6° (with Filter)
77.9° (without Filter)
28.1° (with Filter)
32.1° (without Filter)
Shutter / Strobe
Electronic
Iris
No
Dimming
16-Bit Electronic, 0 to 100% with 4 Dimmer Modes
Performance
Operating Modes
Automatic, Color Change, Color Dimmer, DMX, Primary/Secondary, Program
Macros / Programs
10x Auto-Program
Effects
Color Scroll (Variable Speed)
Color Strobe (Variable Speed)
Strobe Rate
0 to 25 Hz
Gobos
No
Control
Control Protocols
DMX512, RDM
DMX Channel Modes
9 Mode(s):
4 / 6 / 8 / 10 / 45 / 60 / 64 / 66 / 76-Channel
Display / Controls
LCD / 4-Button
Remote Control
No
Connectivity
Inputs/Outputs
2 x XLR 5-Pin DMX Input/Output
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated
Power / Current Consumption
120 VAC, 60 Hz: 194 W / 1.6 A
208 VAC, 60 Hz: 197 W / 0.95 A
230 VAC, 50 Hz: 197 W / 0.86 A
Power Linking
6 Units at 100 VAC
8 Units at 120 VAC
14 Units at 208 VAC
15 Units at 230 VAC
16 Units at 240 VAC
Environmental
Environmental Protection
Dust/Water-Resistant (IP65)
Operating Temperature
-14 to 113°F / -26 to 45°C
Physical
Mounting
Floor Base, Omega Bracket
Duty Cycle
No
Exterior Color
Black
Dimensions
41.22 x 7.28 x 6.55" / 104.7 x 18.49 x 16.64 cm
Weight
28.8 lb / 13.1 kg
