Description
Includes: Includes: IP PowerKon Power Cord, Floor Bracket, Glare Shield Control: 5-pin DMX, Artnet, sACN

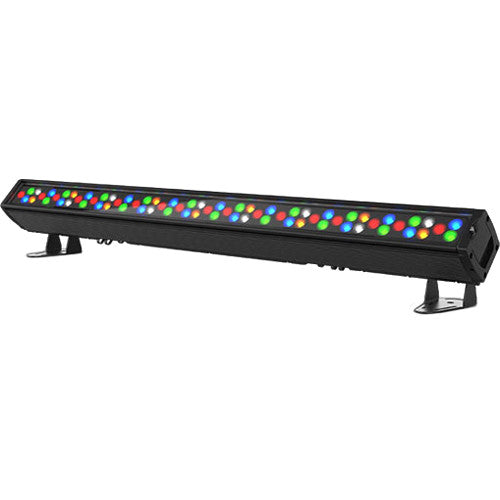

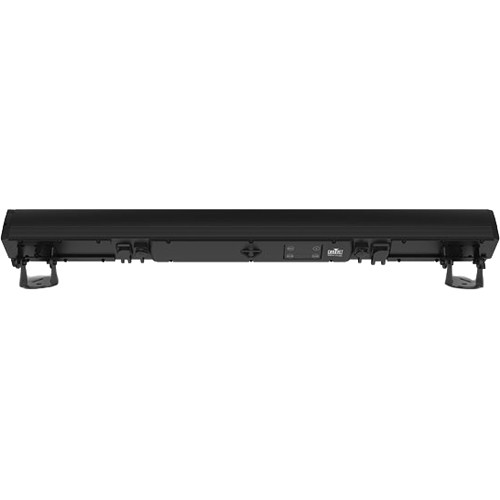

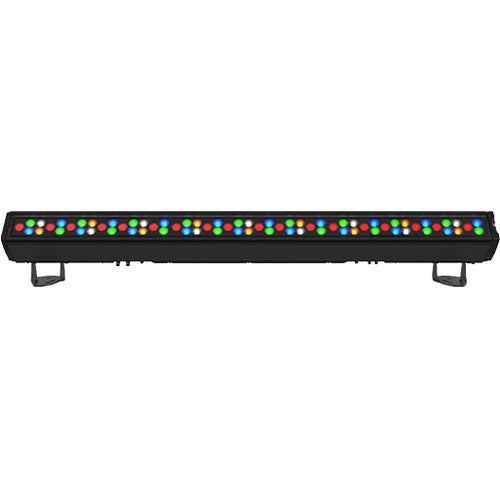

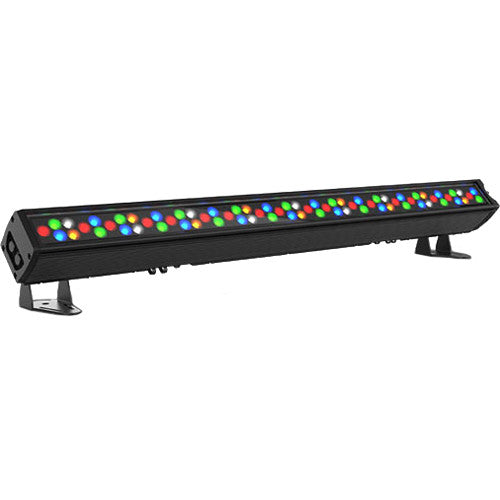

Lighting designers and touring companies in need of a professional, all-weather linear LED strip will be impressed with the Chauvet Professonal COLORado Batten 72X, an IP65 batten-style wash-lighting fixture powered by 72 calibrated RGBWA LEDs. The fixture produces superb color rendering and a vast palette from soft pastels to saturated hues, well suited for touring, live events, television, and theatrical productions.
The COLORado Batten 72X is equipped with 16-bit dimming capability, as well as five selectable dimming curves. They provide smooth fades and can easily integrate into traditional rigs. In addition, it is built with integrated trunnions to accommodate clamps for vertical or horizontal hanging.
RGBAW LED Batten for touring, rental, and production, indoors or out
72 LEDs (18 red, 18 green, 18 blue, 9 white, 9 amber)
All environment operation with IP rated power and DMX connection
Color temperature presets, from 3200 K to 10000 K
Selectable, smooth dimming curves for programming versatility
Built for touring, live event, television, and theatrical productions
Large, easy to navigate display with password protection
Electronic dimmer
Electronic shutter/strobe
Strobe Rate: 0 to 25 Hz
Color temperature presets
5 dimming modes
Built-in automated programs
Customizable programs
Recall custom programs
Key Specs
Fixture Type
Linear/Bar Light
Light Source
72x Color LED - 3 W / 690 mA
Colors
Red, Green, Blue, White, Amber
Beam Angle
22°
Control Protocols
DMX512, RDM
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 161 W / 1.33 A
208 VAC, 60 Hz: 164 W / 0.79 A
230 VAC, 50 Hz: 163 W / 0.71 A
Mounting
Omega Bracket
Light
Fixture Type
Linear/Bar Light
Light Source
72x Color LED - 3 W / 690 mA
Expected Lamp Life
50,000 Hours
Colors
Red, Green, Blue, White, Amber
Photometrics
161 fc / 1730 Lux at 16.4' / 5 m
Color Temperature
3200 to 10,000K
Lumen Output
3631 Lumens
Beam Angle
22°
Field Angle
39°
Shutter / Strobe
Electronic
Zoom Adjustment
No
Dimming
Electronic, 0 to 100% with 5 Dimmer Modes
Performance
Operating Modes
DMX
Macros / Programs
Auto-Program
Internal Program
Effects
Strobe
Strobe Rate
0 to 25 Hz
Gobos
No
Color Accuracy Index
CRI: 80
Control
Control Protocols
DMX512, RDM
DMX Channel Modes
18 Mode(s):
3 / 43-Channel
Display / Controls
LCD
Remote Control
No
Connectivity
Inputs/Outputs
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated
Cord Length: 5' / 1.5 m
Power / Current Consumption
120 VAC, 60 Hz: 161 W / 1.33 A
208 VAC, 60 Hz: 164 W / 0.79 A
230 VAC, 50 Hz: 163 W / 0.71 A
Power Linking
10 Units at 120 VAC
17 Units at 208 VAC
Environmental
Environmental Protection
Dust/Water-Resistant (IP65)
Operating Temperature
-4 to 113°F / -20 to 45°C
Physical
Mounting
Omega Bracket
Duty Cycle
No
Exterior Color
Black
Cooling
Convection
Certifications
CE, MET
Dimensions
39.4 x 6.1 x 3" / 1000 x 156 x 75 mm
Weight
18.6 lb / 8.4 kg
Packaging Info
Package Weight
24.5 lb
Box Dimensions (LxWxH)
43.25 x 11.25 x 7.25"
