Description
Includes: Includes: IP PowerKon Power Cord, Gel Frame Control: 5-pin DMX

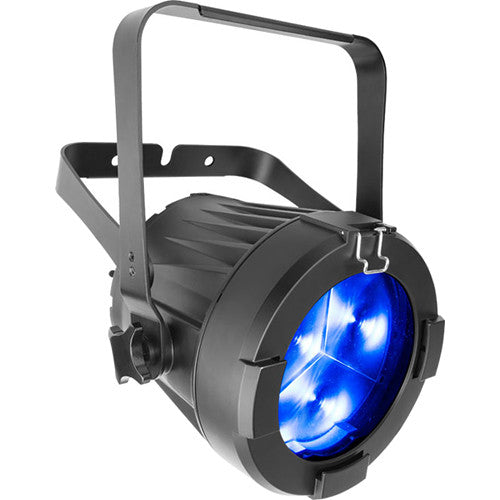

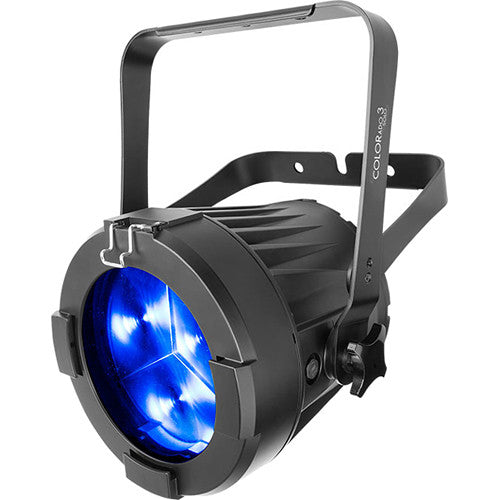

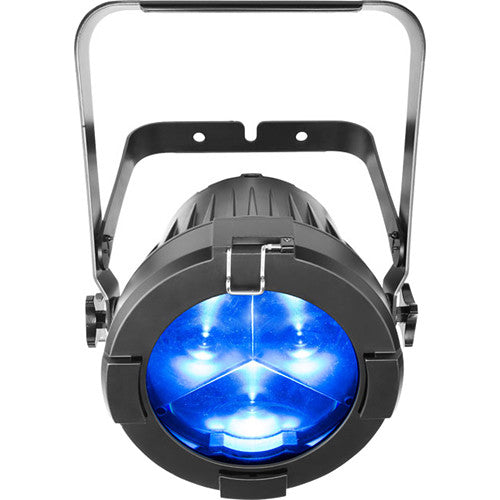

The COLORado 3 Solo from Chauvet is a zooming wash light that delivers all-environment performance and advanced optics with three 60W RGBW LED engines that project an intense, even, and fully homogenized beam through fast and smooth zooming optics. Utilization of IP65-rated power & data connectors and full convection cooling allows this fixture to perform in all kinds of environments.
Zooming RGBW LED wash for touring, rental, and production, indoors or outdoors
Completely homogenized wash with color mixing and zoom
8° to 45° smooth and fast zoom
All environment operation with IP65-rated power and DMX connections
Color temperature presets, from 3200 to 10000K
Selectable, smooth-dimming curves for programming versatility
OLED display with password protection
Light Source
3 x RGBW LEDs, 7 W (500 mA)
Life Expectancy
50,000 hours
Illuminance
4°: 10,422 lux @ 16.4' / 5 m
34°: 185 lux @ 16.4' / 5 m
Beam Angle
4 to 34°
Field Angle
8 to 45°
Zoom Angle
8 to 45°
Zoom Adjustment
Motorized
Color Mixing
HSI, RGBW, RGBW (16-bit), Standalone
Color Temperature
3200 to 10000K
Color Temperature Presets
Yes
Dimmer
Electronic
Dimmer Mode
5 x modes
Shutter/Strobe
Electronic
Strobe Rate
0 to 25 Hz
PWM Frequency
600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25,000 Hz
Built-In Programs
Yes
Custom Functions
Customizable Programs: Yes
Recall Custom Programs: Yes
Protocols
DMX, RDM

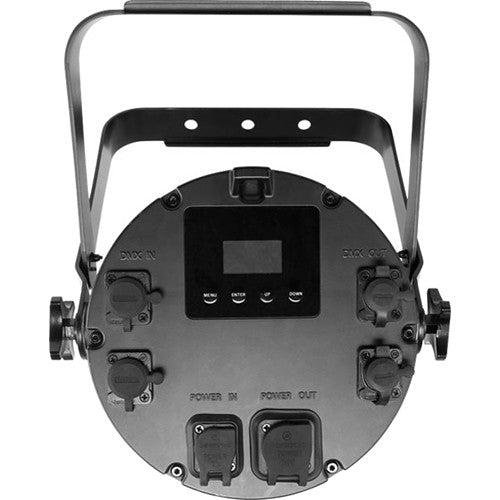

DMX Connectors
Input: XLR 3-pin, XLR 5-pin
Output: XLR 3-pin, XLR 5-pin
DMX Channel Modes
9, 12, or 17 channels
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Connectors
Input: Seetronic Powerkon IP65
Output: Seetronic Powerkon IP65
Power Linking
120 V: 8 units
208 V: 14 units
230 V: 15 units
Power Consumption
120 V, 60 Hz: 187 W, 1.58 A
208 V, 60 Hz: 181 W, 0.91 A
230 V, 50 Hz: 175 W, 0.87 A
Power Cable
Edison plug to Seetronic Powerkon IP65
Power Cable Length
5' (1.5 m)
Certifications & Approvals
CE, MET
IP Rating
IP65
Housing Material
Aluminum die-cast
Dimensions
13 x 12 x 4.1" (32 x 30 x 11 cm)
Weight
10 lb (4.6 kg)
Packaging Info
Package Weight
26.35 lb
Box Dimensions (LxWxH)
18.5 x 15.3 x 12.6"
