Description
Includes: Includes: IP PowerKon Power Cord, Gel Frame Control: 5-pin DMX

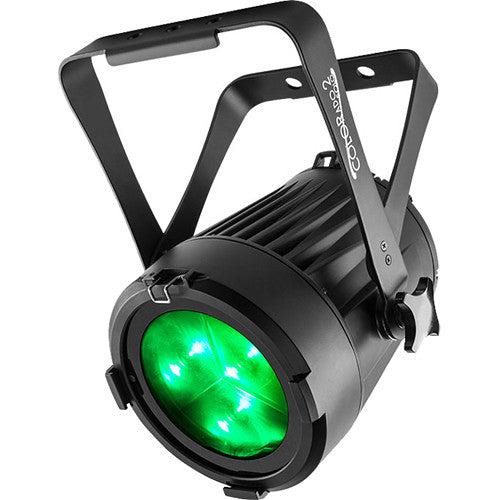

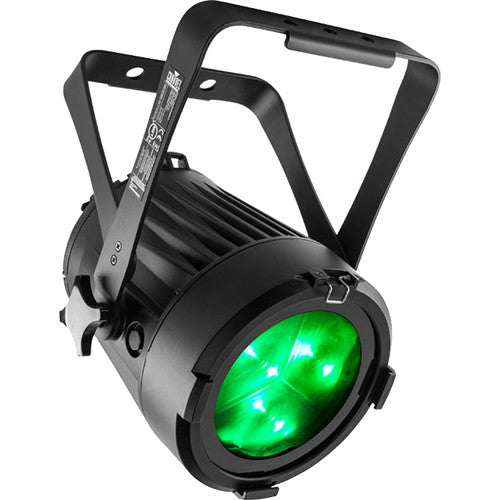

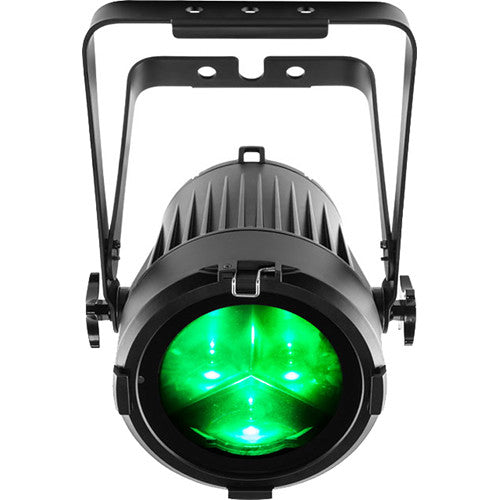

The COLORado 2 Solo from Chauvet Professional is a quad-color LED wash fixture featuring an IP65 rating, which allows the unit to be used in outdoor/wet conditions and makes it suitable for a wide range of applications including rental houses, theatrical events, and outdoor festival production. The fixture utilizes three 40W RGBW LEDs to project a fully homogenized beam through fast and smooth zooming optics. The instrument features a wide zooming range of 7 to 42° and dynamic effects, such as electronic dimming and strobe, motorized zoom, standalone color mixing, and 5 dimming modes, as well as DMX compatibility. The COLORado 2 Solo can be used anywhere in the world with its built-in universal 100 to 240 VAC power supply and ships with a Seetronic Powerkon IP65 power cord.
Benefits
Zooming RGBW LED wash for touring, rental, and production, indoors or outdoors
Completely homogenized wash with superior color mixing and zoom
7° to 42° smooth and fast zoom
All-environment operation with IP-rated power and DMX connections
Color temperature presets, from 3200K to 10,000K
Selectable, smooth dimming curves for programming versatility
OLED display with password protection
CHAUVET PROFESSIONAL 2 Solo Specs
Optical
Light Source: 3 LEDs (quad-color RGBW) 40 W, (2.5 A), 50,000 hours life expectancy
Beam Angle: 5 to 27°
Field Angle: 7 to 42°
Zoom Angle: 7 to 42°
Illuminance (5°): 9720 lux @ 16.4' / 5 m
Illuminance (27°): 318 lux @ 16.4' / 5 m
Selectable PWM: 600, 1200, 2000, 2400, 6000, 25,000 Hz
Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Built-In Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes
Connections
Power connection: Edison (local) plug to Seetronic Powerkon IP65
Power input: Seetronic Powerkon IP65
Power output: Seetronic Powerkon IP65
Data connectors: 3- and 5-pin XLR
Cable length (power): 5.0' / 1.5 m
Control
DMX
DMX channels: 9, 12, or 17
Modes/personalities: 5 personalities (HSIC, SSP, TOUR, TR15, STD.Y)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 12 units at 120 V; 21 units at 208 V; 23 units at 230 V
Power and Current: 130 W, 1.11 A at 120 V, 60 Hz
Power and Current: 124 W, 0.63 A at 208 V, 60 Hz
Power and Current: 123 W, 0.57 A at 230 V, 50 Hz
Certifications
CE, MET
IP Rating: IP66, outdoor/wet, with pressure equalizing M12 GORE valve
Dimensions
8.3 x 10.7 x 15.2" / 209.8 x 271.8 x 386.1 mm
Weight
16.2 lb / 7.3 kg
