Description
Includes: Includes: IP PowerKon Power Cord, Gel Frame Control: 5-pin DMX

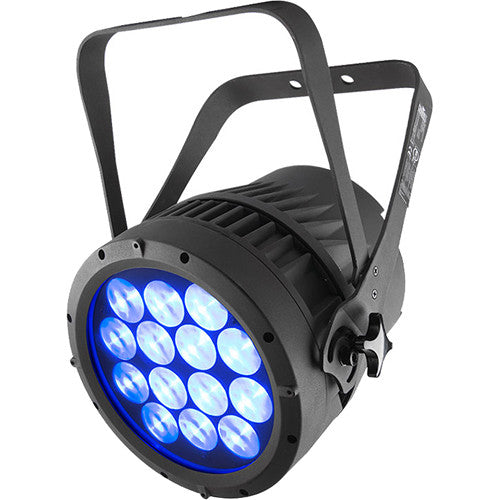

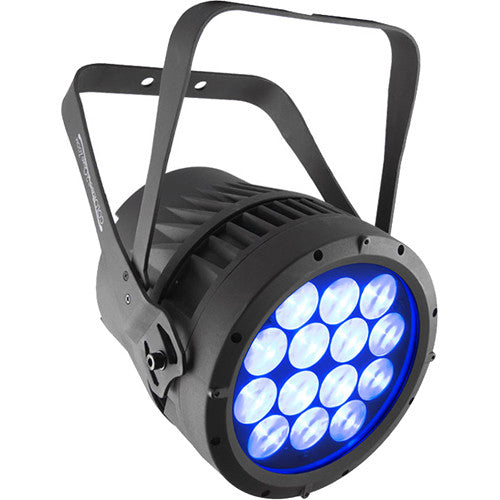

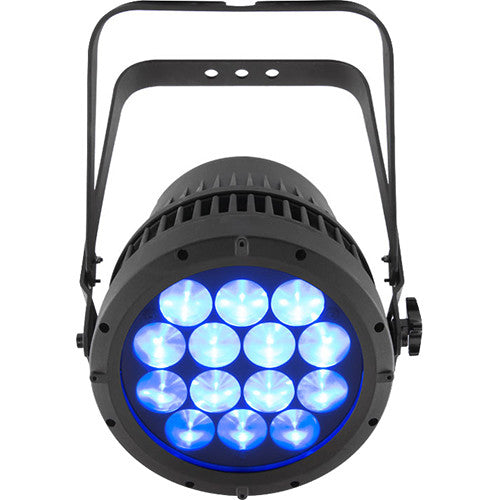

The COLORado 2 Quad Zoom from Chauvet Professional is a quad-color LED wash fixture featuring an IP65 rating, which allows the unit to be used in outdoor/wet conditions and makes it suitable for a wide range of applications including rental houses, theatrical events, and outdoor festival production. The fixture utilizes 14 15W Osram (RGBW) LEDs and features a 14 to 44° adjustable zoom. The selectable, smooth dimming curves offer programming versatility, while color macros make for easy color mixing. The instrument features dynamic effects such as electronic dimming and strobe, motorized zoom, and 16-bit dimming of individual colors as well as master dimming. The fixture can be operated manually or via DMX, with several channel modes including 3, 4, 5, 6, 7, 12 or 17. The COLORado 2 Quad Zoom can be used anywhere in the world with its built-in universal 100 to 240 VAC power supply and ships with a Seetronic Powerkon IP65 power cord, a gel frame, and a gel frame holder.
Benefits
RGBW color mixing via DMX or manually
Zoom control via DMX or manually
Color temperature range: 3200 to 10,000K
Built-in auto and custom programs recalled via DMX and Master/Slave
16-bit dimming of individual colors as well as master dimmer
Selectable, smooth dimming curves for programming versatility
Color macros with included speed adjustment
Double-bracketed yoke doubles as a floor stand
All-environment operation with IP rated power and DMX connections

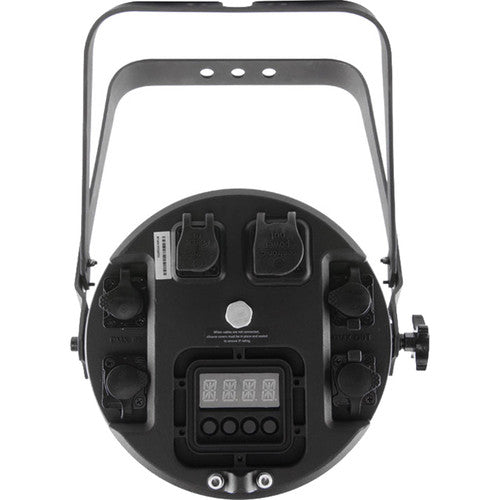

3- and 5-pin DMX input/output connections
LED display with password protection
Optical
Light Source: 14 LEDs (quad-color RGBW) 15 W, (985 mA), 50,000 hours life expectancy
Beam Angle: 7 to 29°
Field Angle: 14 to 44°
Zoom Angle: 14 to 44°
Illuminance (14°): 7180 lux @ 16.4' / 5.0 m
Illuminance (44°): 737 lux @ 16.4' / 5.0 m
Selectable PWM: 1200 Hz
Effects
Color Macros: 20 macros
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Dim Curves: 4
Built-In Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes
Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (Power): 5' / 1.5 m
Control
DMX Channels: 3, 4, 5, 6, 7, 12 or 17
Modes/Personalities: 10 personalities (HSV, ARC.1, AR1.D, ARC.2, AR2.D, AR2.S, AR2.Z, TOUR, TR16, STD.Y)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
Power and Current: 220 W, 1.82 A @ 120 V, 60 Hz
Power and Current: 225 W, 1.08 A @ 208 V, 60 Hz
Power and Current: 228 W, 0.98 A @ 230 V, 50 Hz
Certifications
CE, MET
IP Rating: IP65, temporary outdoor/wet use
Housing Material
Aluminum die-cast
Exterior Color
Black
Dimensions
12.9 x 11.1 x 9.2" / 32.8 x 28.2 x 23.4 cm
Weight
18.8 lb / 8.5 kg
Packaging Info
Package Weight
23.8 lb
Box Dimensions (LxWxH)
17.3 x 15.8 x 12.3"
