Description
Includes: IP PowerKon Power Cord, Gel Frame Control: 5-pin DMX

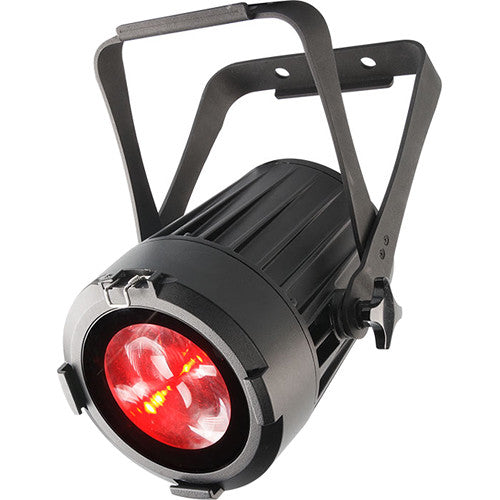

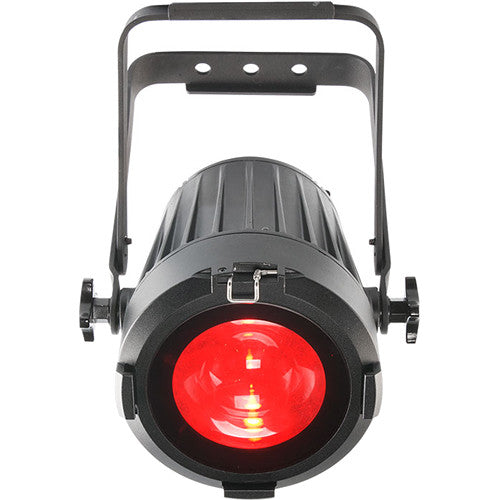

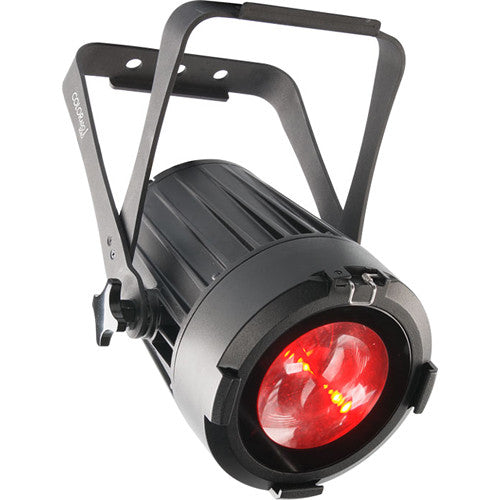

The COLORado 1-SOLO Quad-Color Wash Fixture from Chauvet is a RGBW LED wash light for use as a rental or anywhere on the road, indoors or outdoors. The light has a wide zooming range of 8 to 55°, and dynamic effects such as electron dimming and strobe, motorized zoom, standalone color mixing and 5 dimming modes, as well as DMX and RDM compatibility. You can use the COLORado 1-SOLO anywhere in the world thanks to its universal 100-240 VAC power supply.
Benefits
Zooming RGBW LED wash for touring, rental and production indoors or out
Completely homogenized wash with superior color mixing and zoom
8 to 55° smooth and fast zoom
All environment operation with IP rated power and DMX connections
Color temperature presets, from 3200K to 10000K
Selectable, smooth dimming curves for programming versatility
OLED display with password protection
Optical
Light Source: 1 LEDs (quad-color RGBW) 60 W, (4 A), 50,000 hours life expectancy
Beam Angle: 4 to 40°
Field Angle: 8 to 55°
Zoom Angle: 8 to 55°
Illuminance (40°): 75 lux @ 16.4' (5.0 m)
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25,000 Hz
Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 25 Hz
Standalone color mixing
Color temperature presets
Dim Modes: 5
Built-in automated programs
Customizable programs
Recall custom programs

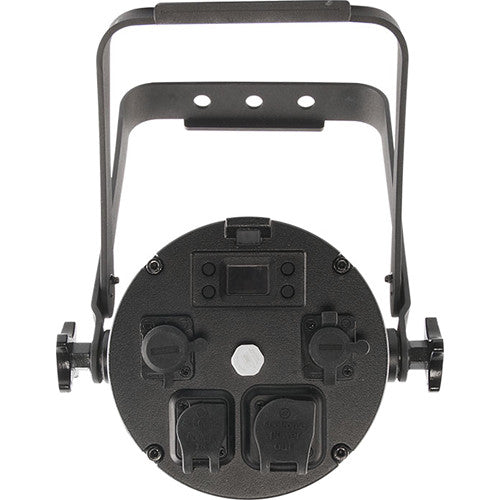

Connections
Power connection: Edison (Local) plug to Seetronic Powerkon IP65
Power input: Seetronic Powerkon IP65
Power output: Seetronic Powerkon IP65
Data connectors: 5-pin XLR
Cable length (power): 5.0' (1.5 m)
Control
DMX, RDM
DMX channels: 9, 12, or 17
Modes/personalities: 5 personalities (HSIC, SSP, TOUR, TR16, STD.Y)
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 24 units @ 120 V; 40 units @ 208 V; 45 units @ 230 V
Power and Current: 65 W, 0.548 A @ 120 V, 60 Hz
Power and Current: 62 W, 0.332 A @ 208 V, 60 Hz
Power and Current: 65 W, 0.297 A @ 230 V, 50 Hz
Dimming
5 Modes
Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Current
Power Linking: 24 units @ 120 V; 40 units @ 208 V; 45 units @ 230 V
Power and Current: 65 W, 0.548 A @ 120 V, 60 Hz
Power and Current: 62 W, 0.332 A @ 208 V, 60 Hz
Power and Current: 65 W, 0.297 A @ 230 V, 50 Hz
Certifications
CE, MET
IP Rating: IP66, outdoor/wet, with pressure equalizing M12 GORE valve
Dimensions
13.62 x 6.93 x 9.53 in (346 x 176 x 242 mm)
Weight
11.8 lb (5.4 kg)
Packaging Info
Package Weight
16.35 lb
Box Dimensions (LxWxH)
17.3 x 12.7 x 10.6"
