Includes: IP PowerKon Power Cord, Gel Frame Control: 5-pin DMX

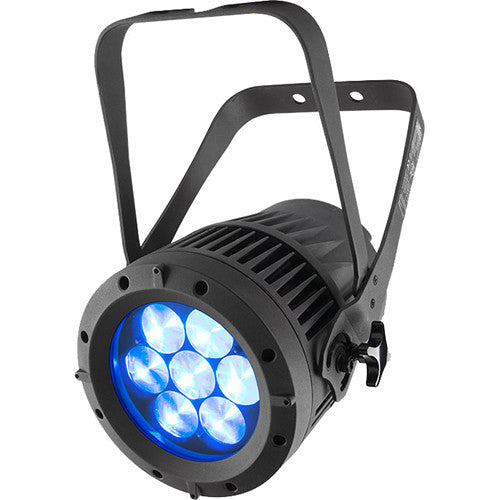

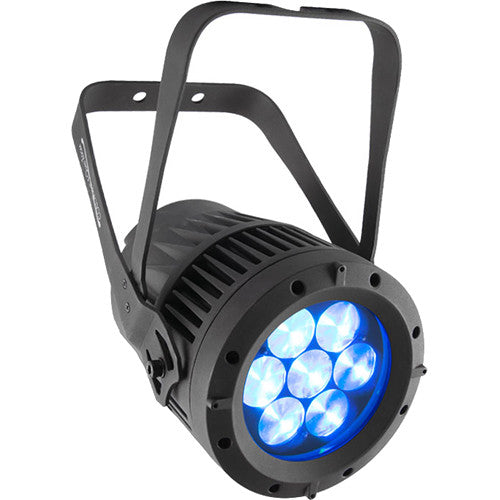

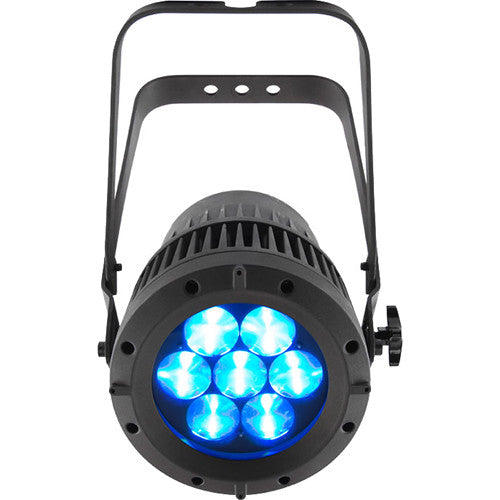

The COLORado 1-Quad Zoom from CHAUVET PROFESSIONAL is a bright variable-color PAR-style wash light that features seven 15W Osram quad-color (RGBW) LEDs, allowing for versatile color mixing. With a zoom range of 7 to 45°, it can be used as a beam, a wide flood, or a wash light in clubs, restaurants, television studios, outdoor stages, and more.
For dynamic integration into the lighting kits of venues, traveling acts, and more, the COLORado 1-Quad Zoom boasts multiple control methods and color programs. Nine different DMX modes, from 3- to 25-channel operation, enables technicians to configure the fixture according to the limitations of their DMX ecosystem. Control parameters include a motorized zoom range from 7 to 45°, variable strobe effects, five distinct 16-bit dimming modes, and a host of automated and customizable programs. By utilizing a quad-color LED system, CHAUVET has ensured that color rendition and illumination intensity can be maintained across the entirety of the light's available spectrum.
This versatile color wash fixture is suitable for a wide range of professionally lit environments, both indoor and outdoor. An IP rating of 65 indicates signifies that short-term operation in inclement weather will not interfere with or damage the light. When light stands or truss setups are available, attach any standard pipe clamp or other mounting accessory to one of the unit's yokes. Because CHAUVET has designed the COLORado series with a dual-yoke system, the yokes can act as easily adjustable mounting brackets or may be used as a convenient kickstand when placing the light on the ground or the stage. Don't worry about accidentally moving the fixture while it's connected to power: the COLORado 1-Quad Zoom has locking Seetronic Powerkon IP65 connections and a durable die-cast aluminum housing. Up to 14 individual fixtures can be daisy-chained together (120V, USA; 26 products can be daisy-chained using 230V) for both power and DMX control signals, saving setup time and preventing unnecessary cable clutter.
Fixture Type
PAR
Light Source
7x Color LED - 15 W / 1
Colors
Blue, Green, Red, White (Wash)
Beam Angle
7 to 32°
Control Protocols
DMX512, RDM
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 101 W / 0.86 A
208 VAC, 60 Hz: 104 W / 0.5 A
230 VAC, 50 Hz: 106 W / 0.47 A
Mounting
Dual/Scissor Yoke
Light
Fixture Type
PAR
Light Source
7x Color LED - 15 W / 1
Expected Lamp Life
50,000 Hours
Colors
Blue, Green, Red, White (Wash)
Photometrics
7°:
372 fc / 4009 Lux at 16.4' / 5 m
32°:
30 fc / 324 Lux at 16.4' / 5 m
9.3°:
6735 fc / 72,501 Lux at 3.3' / 1 m
37.1°:
644 fc / 6940 Lux at 3.3' / 1 m
Beam Angle
7 to 32°
Field Angle
15.8 to 52.4°
Shutter / Strobe
Electronic
Zoom Adjustment
Motorized, 7 to 45°
Dimming
16-Bit Electronic with 5 Dimmer Modes
Performance
Operating Modes
Automatic, Color Change, Color Dimmer, DMX, Program, Standalone, Static Color
Macros / Programs
Auto-Program
Color Macro
Color Temperature
Effects
Color Strobe
Strobe
Strobe Rate
0 to 20 Hz
Gobos
No
Movement
Tilt Ranges
360°
Control
Control Protocols
DMX512, RDM
DMX Channel Modes
9 Mode(s):
3 / 4 / 5 / 6 / 7 / 10 / 12 / 17 / 25-Channel

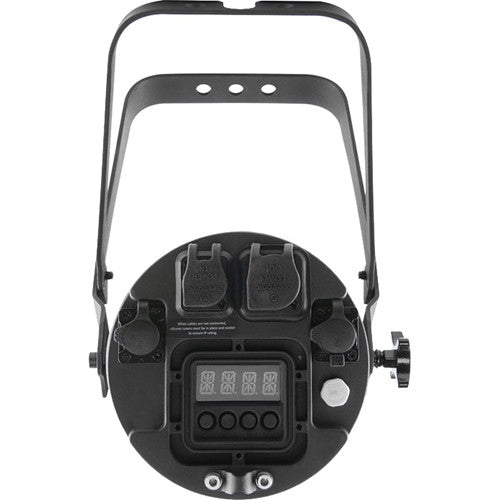

Display / Controls
LCD / 4-Button
Remote Control
No
Mobile App Compatible
No
Connectivity
Inputs/Outputs
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
Wireless
No
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated
Cord Length: 5' / 1.5 m
Fuse
No
Power / Current Consumption
120 VAC, 60 Hz: 101 W / 0.86 A
208 VAC, 60 Hz: 104 W / 0.5 A
230 VAC, 50 Hz: 106 W / 0.47 A
Power Linking
15 Units at 120 VAC
27 Units at 208 VAC
28 Units at 230 VAC
Total Current: 13.6 A
Environmental
Environmental Protection
Dust/Water-Resistant (IP65)
Physical
Mounting
Dual/Scissor Yoke
Included Accessories
1x Gel Frame
Duty Cycle
No
Exterior Color
Black
Max Housing Temperature
113°F / 45°C
Certifications
CE, MET
Dimensions
14.07 x 9.3 x 7.48" / 35.74 x 23.6 x 19 cm
Weight
15.4 lb / 7 kg
Packaging Info
Package Weight
20.6 lb
Box Dimensions (LxWxH)
16.8 x 13 x 10.6"
