Description
Includes: IP PowerKon Power Cord, Gel Frame, Gel Frame Holder Control: 5-pin DMX

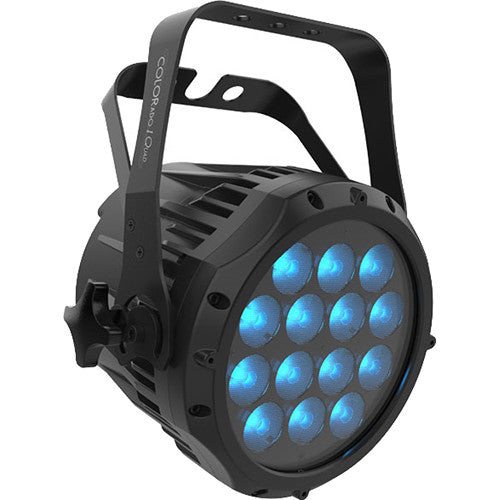

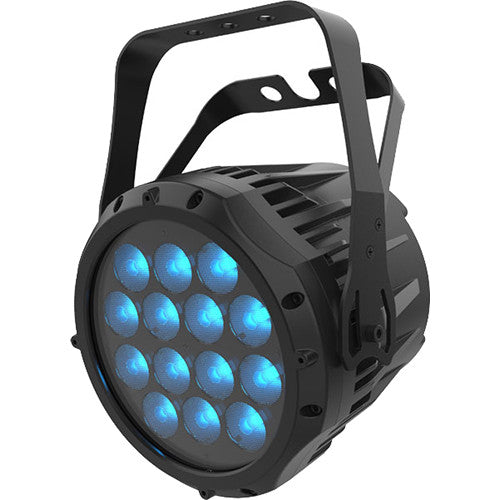

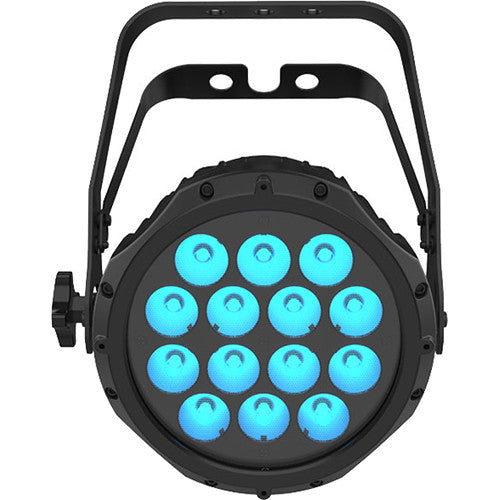

Equipped with fourteen 5W LEDs, this compact COLORado 1-Quad from CHAUVET PROFESSIONAL is an RGBW (red, green, blue, white) LED fixture with a color temperature range from 3200 to 10,000K, a 13° beam angle, and four selectable dimming curves. The fixture offers DMX and RDM control with three RGB and six RGBW DMX personalities for programming versatility. The 5-pin XLR DMX connectors and Seetronic Powerkon power connectors are IP65-rated so you can use it indoors or outdoors as well as for touring, rental, or production work.
The light has a standalone mode with automated and customizable programs plus a password-protected LED display. The COLORado 1-Quad comes equipped with a dual-yoke bracket that can be used for conventional mounting to a truss or a lighting stand, or to create a variable-angle floor stand. A power cord and a gel frame holder are included in the package.
Robust RGBW LED wash light designed for touring, rental, and production work
Smooth, selectable dimming curves for programming versatility
IP65-rated power and 5-pin XLR connectors, designed for indoor and outdoor use
Color temperature presets from 3200 to 10,000K
8 DMX channel modes
TOUR, TR16, and AR1.D RGB DMX personalities
ARC.2, AR2.D, AR2.S, SSP, 16-bit, and 8-bit RGBW DMX personalities
M12 GORE valve for internal equalization
LED display with password protection
Double-bracket yoke doubles as floor stand
Optical
Light Source
14 x RGBW LEDs, 5 W (350 mA)
Life Expectancy
50,000 Hours
Color Temperature
2,800 to 10,000K
Beam Angle
13°
Field Angle
26°
Lumens
1633
Illuminance
1510 Lux at 16' / 5 m
Dynamic Effects
Dimmer
Electronic
Shutter/Strobe
Electronic
Strobe Rate
0 to 14 Hz
Standalone Color Mixing
Yes
Color Temperature Presets
Yes
Dimming
5 x Modes
Dimmer Curves
4 x Curves
Built-In Programs
Yes, Automated
Custom Functions
Customizable Programs: Yes
Recall Custom Programs: Yes
Control
Protocols
DMX, RDM
DMX Channel Modes
4, 5, 6, 7, 9, 10, 13, or 15
DMX Personalities
RGB: TOUR, TR16, and AR1.D
RGBW: ARC.2, AR2.D, AR2.S, SSP, 16-Bit, and 8-Bit

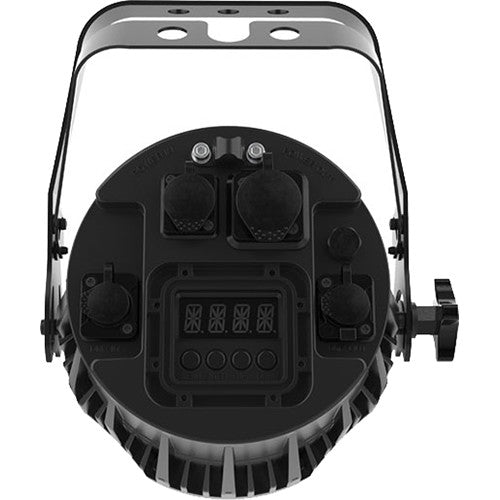

DMX Connectors
Input: XLR 5-pin
Output: XLR 5-pin
Power Connectors
Input: Seetronic Powerkon (IP65-Rated)
Output: Seetronic Powerkon (IP65-Rated)
Input Voltage
100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking
120 V: 15 Units
208 V: 25 Units
230 V: 27 Units
Power Consumption
120 V, 60 Hz: 109 W, 0.9 A
208 V, 60 Hz: 110 W, 0.5 A
230 V, 50 Hz: 112 W, 0.5 A
Power Cable
Edison Plug to Seetronic Powerkon (IP65-Rated)
Power Cable Length
5' / 1.5 m
General
Certifications & Approvals
CE, MET
Mounting
Double-Bracket Yoke
Ambient Temperature
-4 to 113°F / -20 to 45°C
IP Rating
IP65 with Pressure-Equalizing M12 GORE Valve
Housing Material
Die-Cast Aluminum
Gel Frame Holder
Accessory Holder / Gel Frame Size: 7.5" / 19.1 cm
Dimensions
11.96 x 9.96 x 7.95" / 30.4 x 24.6 x 20.2 cm
Weight
9.8 lb 4.5 kg
Packaging Info
Package Weight
14.115 lb
Box Dimensions (LxWxH)
14.9 x 13.3 x 11.9"
