Xtylos Aqua (Foam Shell):
Custom RGB Laser Engine
100-240V, 50/60 Hz ETL IP66
Claypaky CJ3001 Xtylos Aqua Moving Head LED Fixture
Overview
Capitalizing on its groundbreaking light source technology and the global popularity of the Xtylos fixture used on some very high-profile productions, Claypaky is proud to introduce the next in the series of laser-based fixtures, the Xtylos Aqua. The Xtylos Aqua is IP66 rated and comparable in features and performance of the original Xtylos.

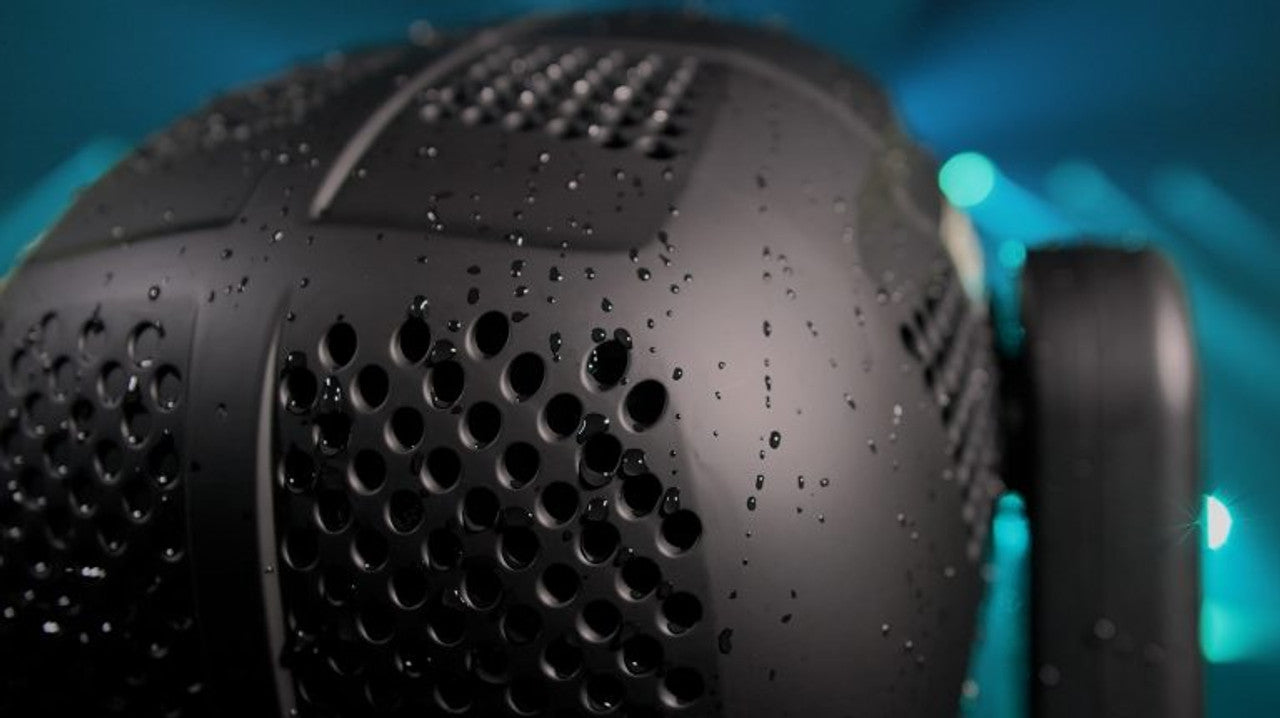

While the initial thought of the Xtylos Aqua as an evolutionary product growing from the Xtylos fixture, it is revolutionary in design to withstand some of the harshest conditions offering marine-grade C5-M protection from the elements and it is fitted with a fan to eliminate condensation from the front lens for consistent output and beam performance.
Featuring a wireless DMX system integrated as standard, the Xtylos Aqua is a small, form factor, IP66-rated fixture powered by its innovative and proprietary RGB laser source. It offers the same effects and features of the original Xtylos, making it the first of its kind on the market. The fixture’s tight, uniform beam makes awe-inspiring aerial effects. Equipped with two gobo wheels (one rotating gobo wheel with seven rotating gobos and a static gobo wheel with 12 gobos), a prism wheel with three prisms, and a sixteen-facet prism on a dedicated channel (which can be overlapped with the prism wheel), the Xtylos Aqua gives designers the tools necessary for a wide-range of effects and looks. In addition, the fixture’s beam apertures have an extremely narrow range of 1° to 7°, which can be reduced further to 0.5° using beam reducers.
Ever since the introduction of the Xtylos fixture, Claypaky has been focused on developing new, pioneering technologies that offer new ways to motivate designers to reach further to inspire audiences. With the Xtylos, this can be done both indoors as well as outdoors for television, theatre, tours, global sporting events, and much more.
Features
Light Source

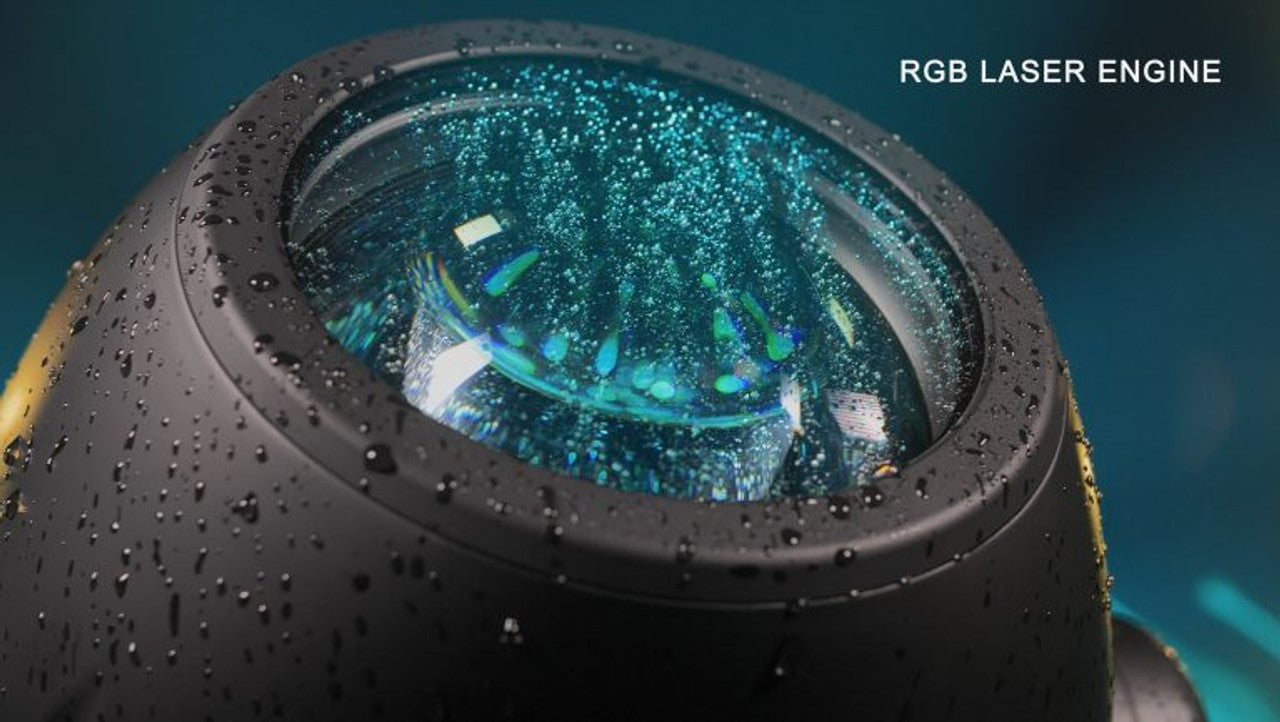

Tailor-made RGB laser engine
Light Output
Total lumen output: 2900 lm
Zoom range

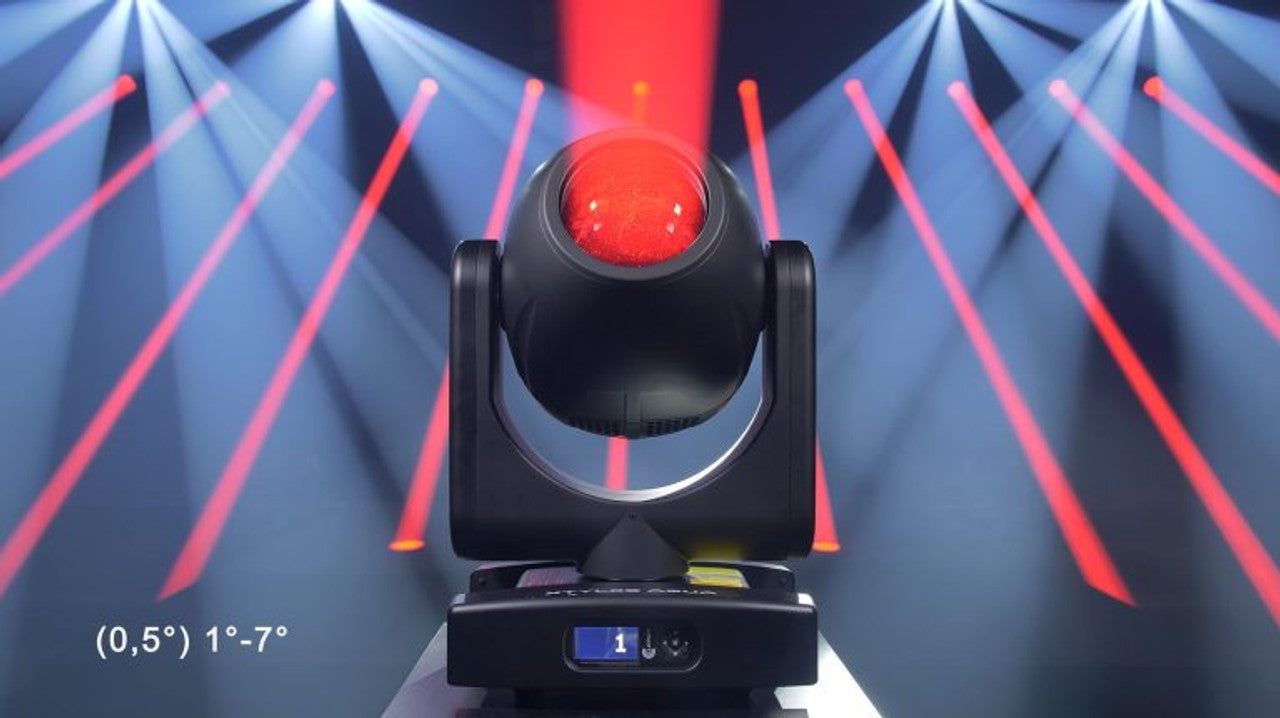

1°-7° range (up to 0.5° using beam diameter reducers)
Effects
RGB laser based system; Linear virtual CTO 2500K – 6500K; 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos; 1 Static gobo wheel with 12 gobo slots (incl. 7 beam reducers); Rotating Prisms disk: Convex plane, Pyramid 6 facets, Linear 6 facets, Frost; 16 Facets prism; Motorized Focus; 0-100% digital dimmer, 24 bit; Electronic Shutter and Strobe
Specifications
Light Source Type
Tailor-made laser engine, enclosed in a sealed module
Solid, flat field, saturated, ultra-concentrated light beam without any visible hotspots
Long lasting light source (20000 hours) with minimal decay*
*It may vary depending on various factors, as type of use and environment
Photometric Data
Aperture: 1°-7° range (up to 0.5° using beam diameter reducers)
Total lumen output: 2900 lm
Front lens diameter: 150 mm
High efficiency optical system
Noise Level
54.2 dBA
Control and Connections
Personalities: Single mode with 31 control channels
Integrated Wireless DMX system as standard (Wireless Solution)
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/OUT
Ethernet port: RJ45 IN
Power connector: PowerCon True1 IN/OUT
Built In Web Server
Dynamic Effects
Colours:
RGB laser based system with derating to preserve laser diodes
Linear virtual CTO 2500K – 6500K
Gobos:
1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
Ext diam. 25.9mm (cut @ 25mm)
Image diam. 11mm
Thickness 0.5mm
1 Static gobo wheel with 12 gobo slots: 5gobos and 7 beam reducers
Framing system:
4 blades with +/- 60° rotation of the full system
“Total Curtain" effect allowing the full blackout with each single blade
Built In macros
Frost:
Linear heavy frost 5° for wash effect
Rotating Effects:
Rotating Prisms disk: Convex plane, Pyramid 6 facets, Linear 6 facets, Frost
16 Facets prism with rotation in both direction at variable speed
Iris:
Motorized with variable pulse and random effects
Movement:
Tilt: 248° - 16bit
Pan: 540° - 16bit
Accuracy: Resolution ± 0.63° (Range 1.26°)
Automatic repositioning
Fast/Normal speed selectable by Function channel
Mechanical Pan/Tilt lock for safe transportation and maintenancee
Beam:
1° aperture – beam mode
Motorized Focus – 16bit
Dimmer/Shutter:
Very precise 0-100% digital dimmer, dimmer Resolution: 24 bit
High speed electronic Shutter and Strobe
Hardware and Software
Long life self-charging battery

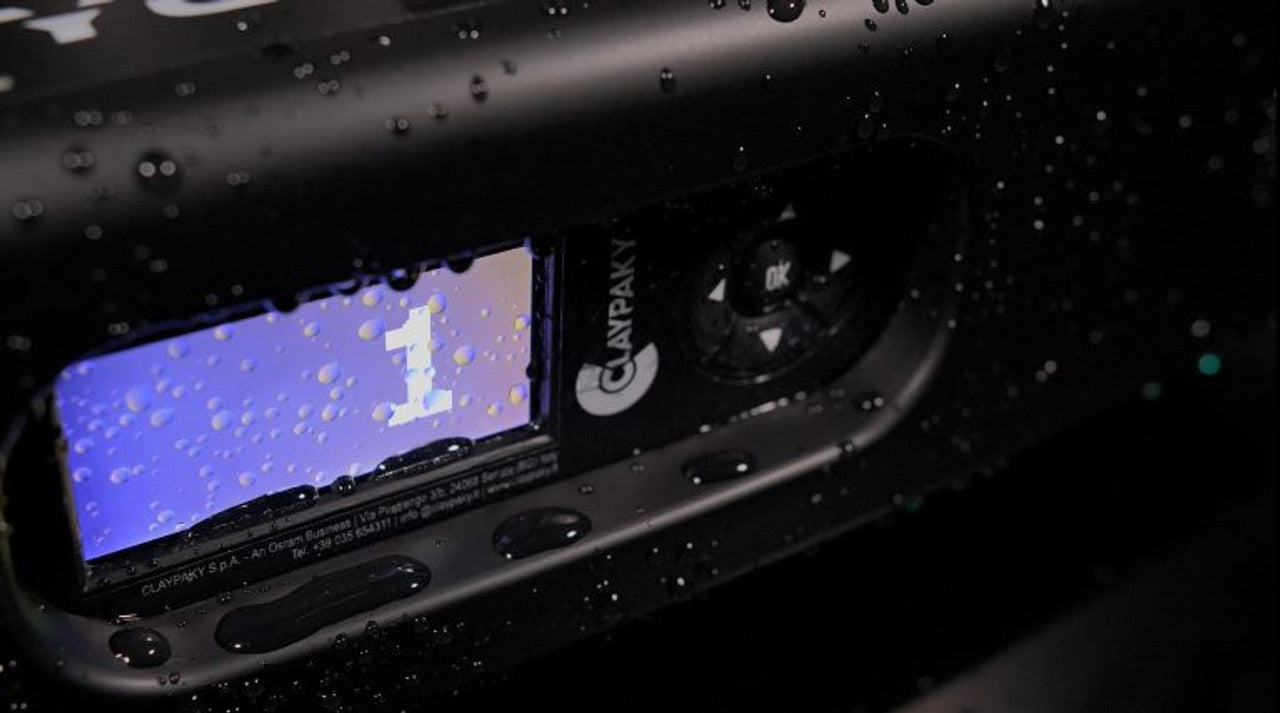

Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility
Housing
Aluminum and steel structure with plastic covers
Two side handles for transportation
IP66 protection rate
Marine Grade protection
Working Position
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Optional safety chain
Electrical
Operating Voltage: 100-240V, 50/60 Hz
Power Supply: Electronic auto range with active PFC
Max Power consumption: 400VA
Mains Out: Max 1600VA
Thermal Specification
Max ambient temperature 40°C (104°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 60°C (140°F)
Total heat dissipation: 1366 BTU/hr ±10% / 1440 kJ/hr ±10%
Safety Specs
Minimum distance of illuminated objects 10 meters (32’ 10”)
Minimum distance from flammable materials 0.2 meters (8”)
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans and heat sink
Fuse T6A – 250V
Compliance
In conformity with the European Directives
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
cMETus Listed
Packaging
Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (2 positions)
Weight - Size
30.4 Kg (67.2 lbs).
390x294mm (base dimension) – 608mm with vertical head (h)
Distance between two fixtures 400mm
Accessories
Omega clamps: 2x183102/805 (included)
ETL Mains cable, 1.5mt. (Bare Ends / IP65 PowerConTrue1 connector): CAB0NL/802 (included)
Foam shell: F21323/001 (optional)
Flight case: F21323 (optional)
Safety Chain: 105041/001 (optional)
Clamp: C21070 (optional)
